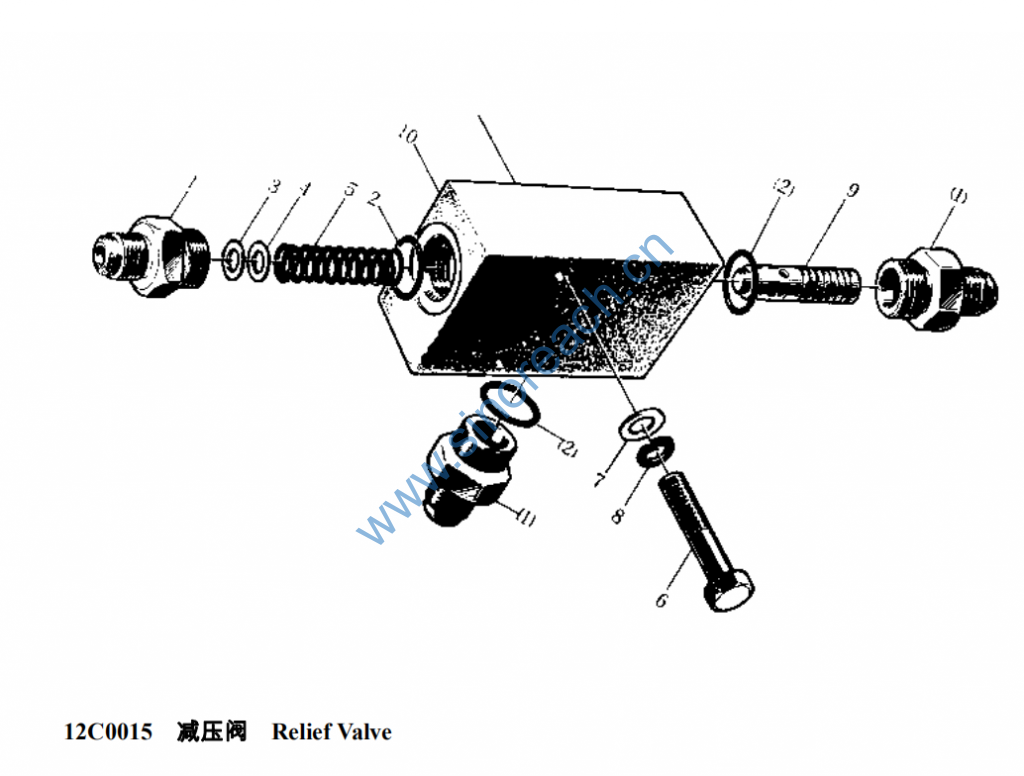

CLG842 12C0015 减压阀 Relief Valve

1 00A0061 JY25A-1 接头 Joint 3
2 12B0041 GB3452.1-82 O形圈 O-ring 19×2.65 3
3 57A0036 JY25-2 调压垫片 Pressure regulating
shim
2
4 57A0037 JY25-3 调压垫片 Pressure regulating
shim
3
5 75A0172 调压弹簧 Pressure regulating
spring
1
6 00B0064 GB5782-86 螺栓 Bolt M10×55-8.8-Zn.D 2
7 06B0001 GB97.1-85 垫圈 Washer 10-140HV-Zn.D 2
8 06B0002 GB93-87 垫圈 Washer 10 2
9 65A0020 JY25-5 阀芯 Valve core 1
10 78A0013 JY25-6 阀体 Valve body 1
