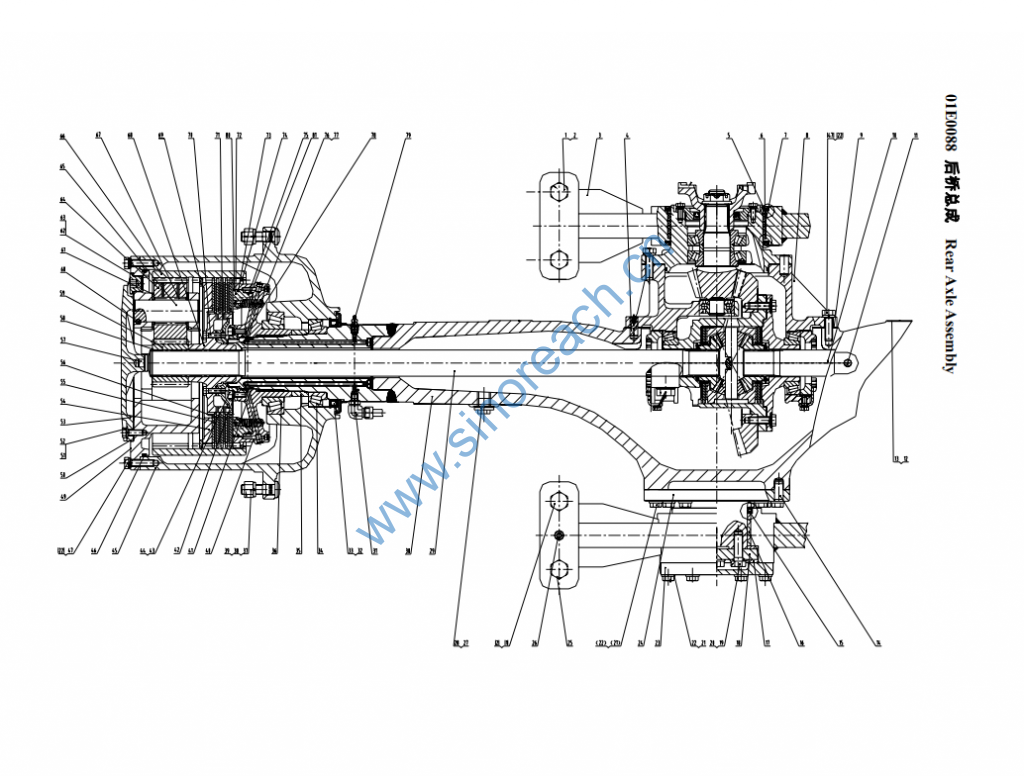

CLG842 01E0088 后桥总成 Rear Axle Assembly

1 01B0167 GB5785-86 螺栓 Bolt M24×2×130-10.9-Zn.D 1
2 03B0200 CB082428-3 锁紧螺母 Lock nut M24×2 8
3 24D0047 前摆动支架 Front swinging
bracket
1
4 60A0011 ZL50C.2-26 定位销 Locating pin 2
5 34C0087 ZL50F.3.4 密封圈 Seal ring 2
6 00A0259 ZL50CIII.3-1 卡环 Snap ring 1
7 83A0045 ZL50F.3.3-1 衬套 Bushing 1
8 41C0115 主传动总成 Main drive
assembly
1
9 81A0030 密封垫 Seal gasket 1
10 62A0070 左半轴 Left half axle 1
11 03B0406 Q9001 通气塞 Air plug Z1/8″-27 1
12 74A1187 桥铭牌 Axle nameplate 1
13 09B0002 GB827-86 铆钉 Rivet 2×5 4
14 66A0013 ZL50F.3-8 销 Pin 2
15 35C0047 ZL50F.3.2 密封圈 Seal ring 1
16 83A0083 ZL50F.3.1-1 衬套 Bushing 1
17 88A0157 ZL50F.3-6 止推垫片 Thrust gasket 2
18 56A0088 ZL50F.3-5 压紧板 Pressure strip 1
19 00B0159 GB5783-86 螺栓 Bolt M18×55-10.9-Zn.D 4
20 06B0102 ZL50F.3-4 淬硬垫圈 Quench hardening
washer
4
21 00B0057 GB5783-86 螺栓 Bolt M14×45-8.8-Zn.D 20
22 06B0103 ZL50F.3-2 淬硬垫圈 Quench hardening
washer
74
23 53A0073 ZL50G.3.1-1 盖 Cover 1
24 61A0109 后支承轴 Rear supporting
axle
1
25 24D0048 后摆动支架 Rear swinging
bracket
1
26 00A0260 ZL50CIII.3-2 销 Pin 2
27 03B0212 螺塞 Screw plug 2
28 06B0055 JB982-77 垫圈 Washer 27 2
29 62A0071 右半轴 Right half axle 1
30 24D0035 桥壳轮边支承 Axle housing wheel
support
1
31 31C0038 ZL50CIII.12.12A 直角接头 Elbow 2
32 13B0220 BAUSL 油封 Oil seal 150×180×15 2
169
33 76A0002 ZL50C.2-7 卡环 Snap ring 2
34 23B0054 NSK 圆锥滚子
轴承
NSK tapered roller
bearing
HR32024XJ 2
35 51C0093 轴套 Bearing bush 2
36 23B0055 NSK 圆锥滚子
轴承
NSK tapered roller
bearing
HR32028XJ 2

37 01B0379 螺栓 Bolt 24
38 03B0150 GB6171-86 螺母 Nut M20×1.5-8-Zn.D 24
39 06B0019 GB93-87 垫圈 Washer 20 24
40
24D0053
内齿轮支承焊
接件
Ring Gear Support
Assembly

1
41 12B0216 GB3452.1-92 O 形圈 O-ring 97.5×3.55 2
42 03B0431 圆螺母 Round Nut 2
43 04B0022 GB70-85 螺钉 Screw M10×25-8.8-Zn.D 4
44 06B0002 GB93-87 垫圈 Washer 10 4
45 70A0096 轮毂 Wheel Hub 2
46 12B0426 GB3452.1-92 O 形圈 O-ring 365×7 2
47 00B0103 GB5783-86 螺栓 Bolt M14×50-10.9-Zn.D 54
49 70A0089 行星轮架 Planet wheel frame 2
50 81A0081 垫片 Gasket 2
51 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
52 06B0008 GB93-87 垫圈 Washer 12 12
53 53A0262 端盖 End cover 1
54 52A0127 承压盘 Bearing disc 2
55 51C0097 对偶钢片 Dual steel strap 10
56 37C0035 摩擦片 Friction plate 8
57 61A0019 ZL50C.2-20 轴 Axle 2
58 07B0028 GB894.1-86 挡圈 55 Retainer ring 55 55 2
59 41A0100 太阳轮 Sun gear 2
60 20B0026 GB308-89 钢球 Steel ball 9.525 6
61 20A2841 垫片 Gasket 12
62 03B0432 螺塞 Screw plug 2
63 06B0054 JB982-77 垫圈 Wahser 33 2
64 41A0101 行星轮 Planet gear 6

65 61A0263 行星齿轮轴 Planet gear shaft 6
66 46A0009 内齿轮 Inner gear 2
67 20B0045 滚针 Needle roller 168
68 72A0293 摩擦片支承 Friction plate
support 2
69 07B0078 挡圈 Retainer ring 2
70 00B0002 GB5783-86 螺栓 Bolt M10×35-8.8-Zn.D 8
71 72A0292 圆盘 Disc 2
72 50A0133 活塞 Piston 2
73 12B0421 密封圈 Seal ring 2
74 07B0077 挡圈 Retainer ring 2
75 12B0425 密封圈 Seal ring 2
76 10B0070 弹簧 Spring 16
77 75A0130 钢丝挡圈 Steel retainer ring 4
78 12B0423 GB3452.1-92 O 形圈 O-ring 106×3.55 2
79 00A0044 ZL50C.2.2-4 放气嘴 Bleeder valve 2
80 88A0456 支承环 Support ring 2
81 88A0523 支承环 Support ring 2
