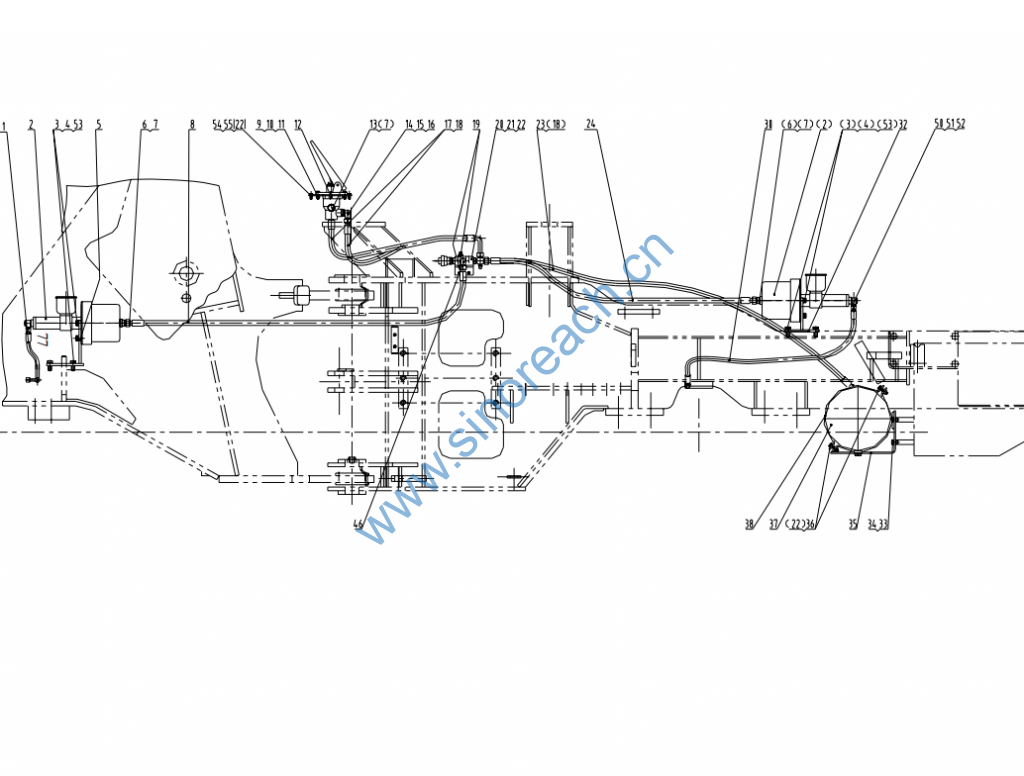

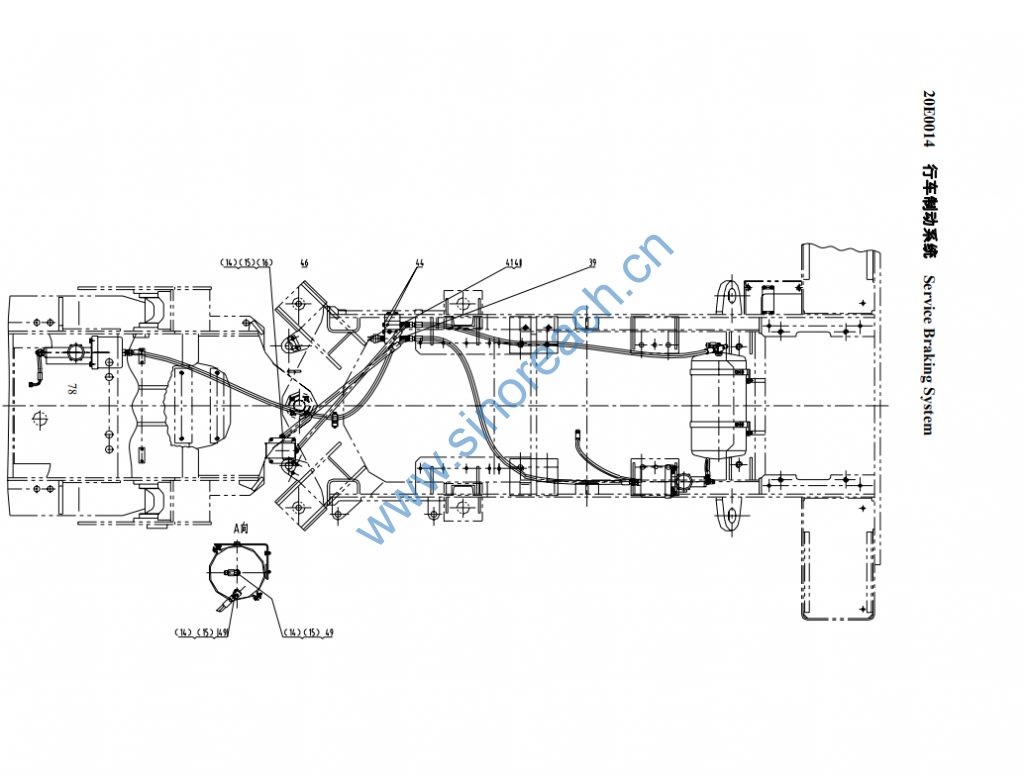

CLG842 20E0014 行车制动系统 Service Braking System

1 05C0059 Φ8-1P 高压软管 Φ8-1P high
pressure hose 1
2 13C0067 LG40A-3510001/
LG-ZL50/ZJ160D 加力器总成 Assistor
assembly 2
3 00B0038 GB5783-86 螺栓 Bolt M14X30-8.8-Zn.D 10
4 06B0013 GB93-87 垫圈 Washer 14 10
5 00D0391 前加力器支架 Front assistor
bracket 1
6 00A0050 ZL50C.12-6 接头 Joint 2
7 82A0028 ZL50C.12-2 垫 Washer 3
8 03C0002 ZL50C.12.4A 低压软管 L2000 Low pressure
hose L200 1
9 00B0020 GB5783-86 螺栓 Bolt M8×30-8.8-Zn.D 4
10 06B0006 GB93-87 垫圈 Washer 8 4
11 03B0177 GB6170-86 螺母 Nut M8-8-Zn.D 4
12 13C0004 XM-60C 气制动阀总成 Airbraking valve
assembly 1
13 03B0085 ZL50CⅠ .12-8 堵头 Chock plug 1
14 12B0242 GB1235-76 0 形圈 O-ring 25X2.4 4
15 03B0215 ZL50C.12A-20 锁紧螺母 Lock Nut 4
16 01A0021 ZL50C.12-1 弯管接头 Elbow joint 2
17 04C0025 Φ12.7-1P 低压软管 Φ12.7-1P low
pressure hose 2
18 81A0009 ZL50C.12.3-2 垫 Pad 6
19 00A0241 ZL50CⅢ .12-2 接头 Joint 2
20 50D0077 接气块总成 Air-connecting
block 1
21 00B0012 GB5783-86 螺栓 Bolt M10X25-8.8-Zn.D 2
22 06B0002 GB93-87 垫圈 10 Washer 10 10
23 04C0026 Φ12.7-1P 低压软管 Φ12.7-1P low
pressure hose 1
24 04C0034 ZL50CX.12.1 低压软管 L1700 Low pressure
hose L1700 1
30 05C0151 ZL50C.12A.25A 制动软管 Brake hose 1
32 00D0262 加力器支架 Assistor bracket 1
33 00B0031 GB5783-86 螺栓 Bolt M12X20-8.8-Zn.D 4
34 06B0008 GB93-87 垫圈 Washer 12 4

5 00D0084 ZL50C.12.19 空气罐内固定圈 Washer 2
36 00B0029 GB5783-86 螺栓 Bracket M10X40-8.8-Zn.D 4
37 13C0003 ZL50CⅠ .12.1 空气罐 Air Reservoir 1
38 22A0020 ZL50C.12-14 空气罐外固定圈 Outer fixing ring
of air tank 2
39 32C0024 ZL50CⅢ .12.4 三通接头 T-joint 1
40 33C0003 ZL50CⅢ .12.3 四通接头 Four-way joint 1
41 00A0034 BF25-12A 接头 Joint 1
44 03B0115 ZL50CⅠ .13-3 堵头 Chock plug 2
46 31C0032 ZL50CⅢ .12.5 直角接头 Right angle joint 1
47
48
49 01A0021 ZL50C.12-1 弯管接头 Bent joint 2

0 01B0244 管接头螺栓 Pipe joint bolt 2
51 12B0356 GB3452.1-92 O 形圈 O-ring 16×1.8 4
52 03A0067 ZJ160D-12 管接头 Pipe joint 2
53 06B0009 GB97.1-85 垫圈 Washer 14-140HV-Zn.D 10
54 11A0505 制动阀安装板（2）
Mounting plate
(2) of brake
valve
1
55 00B0005 GB5783-86 螺栓 Bolt M10×20-8.8-Zn.D 4
