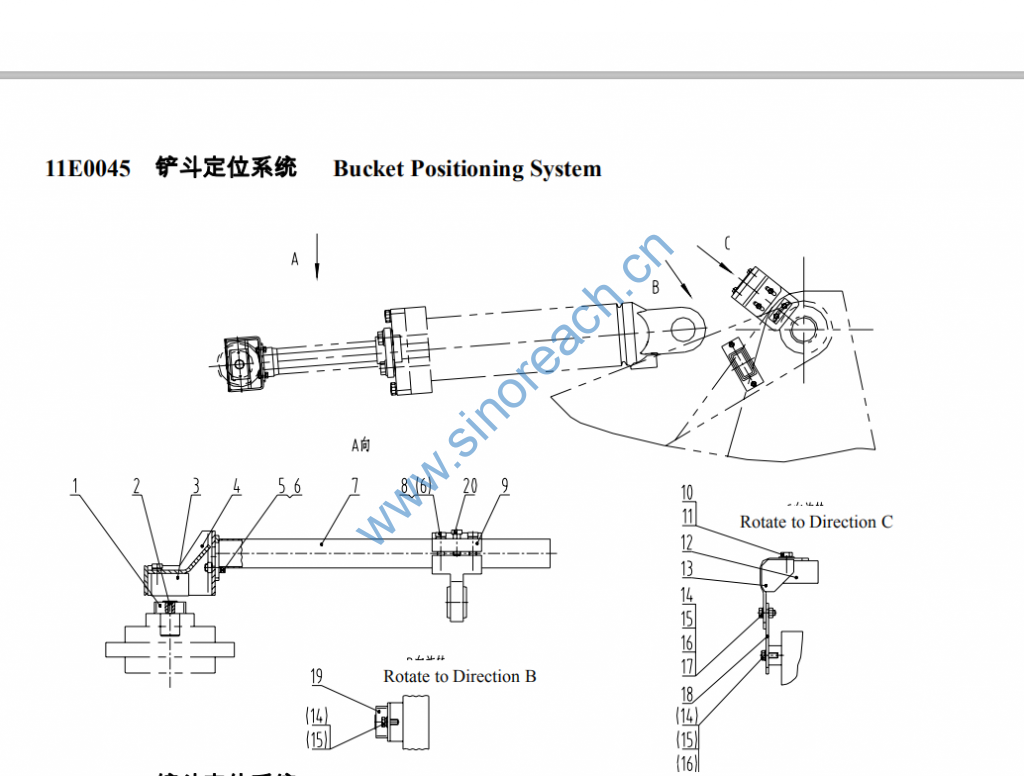

CLG842 11E0045 铲斗定位系统 Bucket Positioning System

1 34C0026 4V4840 转斗磁铁 Bucket magnet 1
2 04B0115 ZL50CⅠ .10.22-2 定位螺钉 Positioning screw 2
3 34B0142 8C5435G 转斗行进开关 Bucket travel switch 1
4 02D0115 ZL50CⅠ .10.22.3 转斗行进开关
座
Bucket travel switch
seat
1
5 00B0015 GB5783-86 螺栓 Bolt M10X25-8.8-Zn.D 2
6 06B0002 GB93-87 垫圈 Washer 10 4
7 16D0028 ZL50CⅠ .10.22.1 连接杆 Connecting rod 1
8 01B0034 GB5782-86 螺栓 Bolt M10X40-8.8-Zn.D 2
9 71A0047 支板 Supporting plate 1
10 01B0138 ZL50CⅠ .10.22-4 螺栓 Bolt 4
11 06B0089 ZL50CⅠ .10.22-3 淬硬垫圈 Quench hardening
washer
4
12 34B0141 8C5434 动臂行进开关 Movable arm travel
switch
1
13 02D0163 动臂行进开关
座
Movable arm travel
switch seat
1
14 01B0015 GB5783-86 螺栓 Bolt M8X20-8.8-Zn.D 6
15 06B0006 GB93-87 垫圈 Washer 8 6
Rotate to Direction B
Rotate to Direction C
75
16 06B0005 GB97.1-85 垫圈 Washer 8-140HV-Zn.D 4
17 03B0157 GB6170-86 螺母 Nut M8-8.8-Zn.D 2
18 11A0247 支承板 Supporting plate 1
19 50D0027 动臂磁铁总成 Movable arm magnet
assembly
1
20 00B0029 GB5783-86 螺栓 Bolt M10X40-8.8-Zn.D 1
