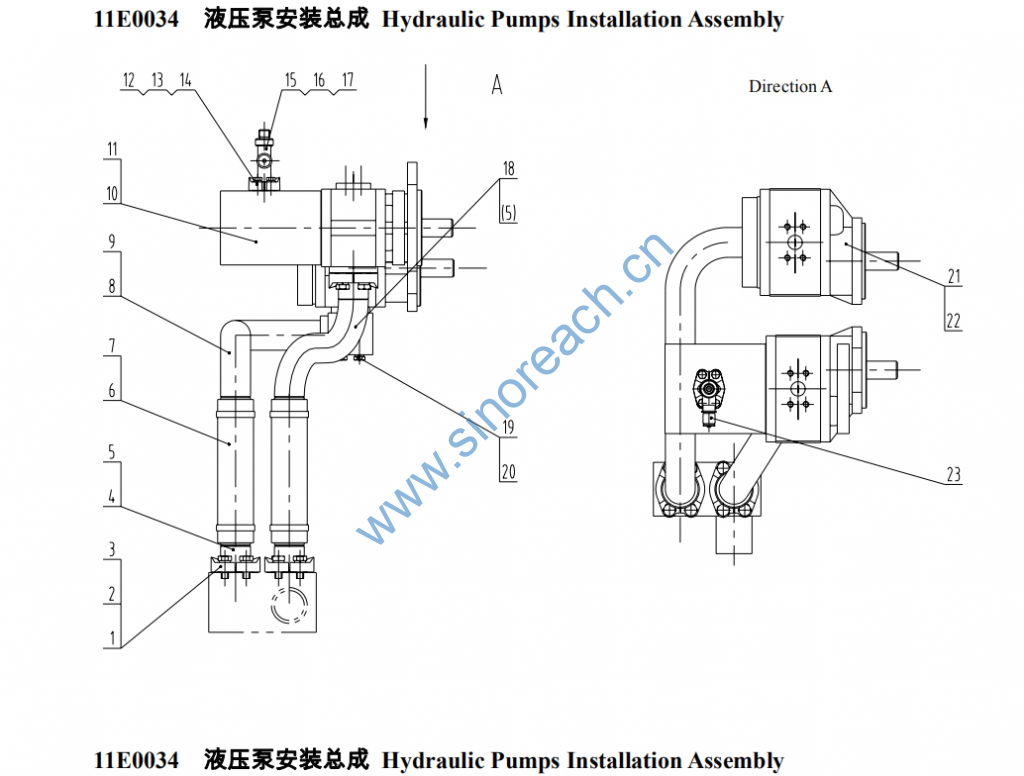

CLG842 11E0034 液压泵安装总成 Hydraulic Pumps Installation Assembly

1 72A0003 ZL50C.9.12-1 压板 Pressboard 3
Direction A
57
2 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
3 06B0008 GB93-87 垫圈 Washer 12 12
4 15D0088 管接头 Pipe joint 2
5 12B0019 GB3452.1-92 O形圈 O-ring 46.2×3.55 3
6 32A0093 吸油软管 Suction hose 2
7 15B0017 ZB/T32005.1-88 双钢丝式环箍 Dual wire hoop 60 4
8 10D0323 钢管总成 Steel pipe assembly 1
9 12B0076 GB3452.1-92 O形圈 O-ring 38.7×3.55 1
10 11C0038 CBGj2063/CBGj101
0
齿轮泵 Gear pump 1
11 82A0059 ZL50G.9-4 密封垫片 Sealing gasket 1
12 54A0071 ZL20.10.20-1 压板 Pressboard 1
13 00B0020 GB5783-86 螺栓 Bolt M8×30-8.8-Zn.D 4
14 06B0006 GB93-87 垫圈 Washer 8 4
15 15D0090 管接头 Pipe joint 1
16 12B0004 GB3452.1-92 O形圈 O-ring 23.6×3.55 1
17 12B0285 GB3452.1-92 O形圈 O-ring 10.6×1.8 1
18 10D0324 钢管总成 Steel pipe assembly 1
19 01B0093 GB5782-86 螺栓 Bolt M10×90-8.8-Zn.D 4
20 06B0002 GB93-87 垫圈 Washer 10 4
21 11C0040 CBGj2063R 齿轮泵 Gear pump 1
22 80A0010 BB70A-2 密封垫片 Sealing gasket 1
23 44C0022 SMK20-M14×1.5-PC
（STAUFF）
测压接头 Pressure measuring
oint
1
