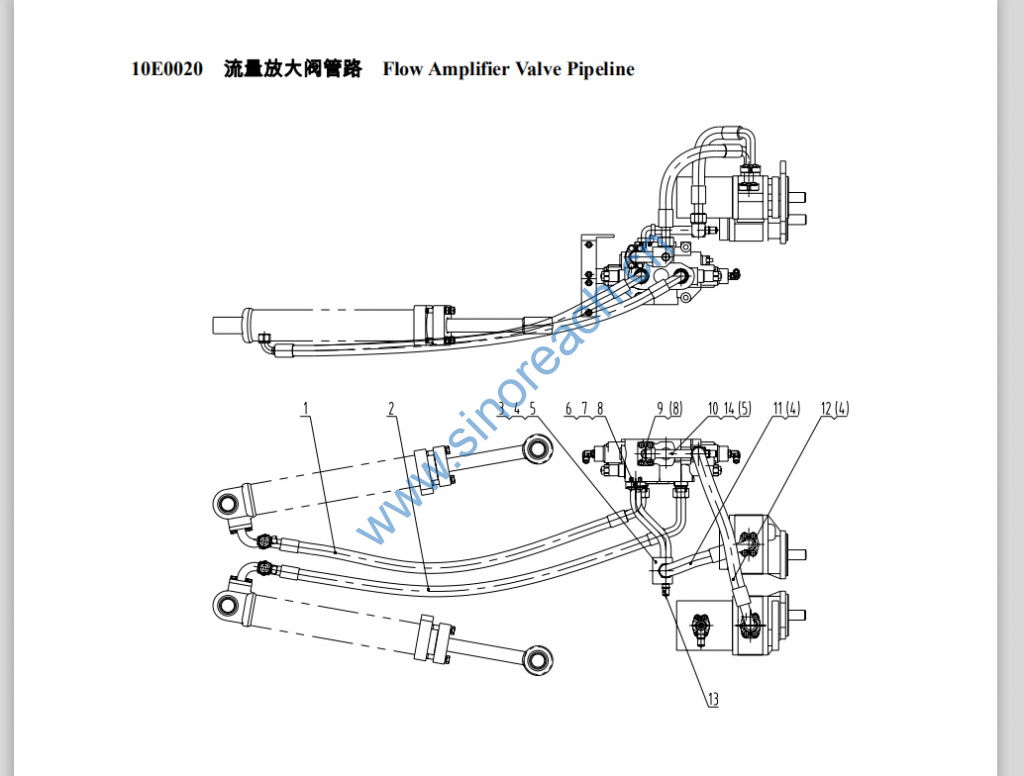

CLG842 10E0020 流量放大阀管路 Flow Amplifier Valve Pipeline

1 06C0154 软管总成 Hose assembly 1
2 06C0401 软管总成 Hose assembly 1
3 10D0325 钢管总成 Steel pipe
assembly
1
4 12B0251 GB3452.1-92 O形圈 O-ring 30×3.55 3
5 12B0292 GB3452.1-92 O形圈 O-ring 21.2×1.8 2
6 72A0027 ZL50C.9.17-6 压板 Pressboard 3
7 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 12
8 06B0002 GB93-87 垫圈 Washer 10 16
9 04B0022 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 4
10 10D0601 钢管总成 Steel pipe
assembly
1
11 07C0095 软管总成 Hose assembly 1
12 07C0096 软管总成 Hose assembly 1
13 44C0022 SMK20-M14X1.5- 测压接头 Pressure 1
52
PC measuring joint
14 12B0271 GB3452.1-92 O形圈 O-ring 25.8×3.55 1
