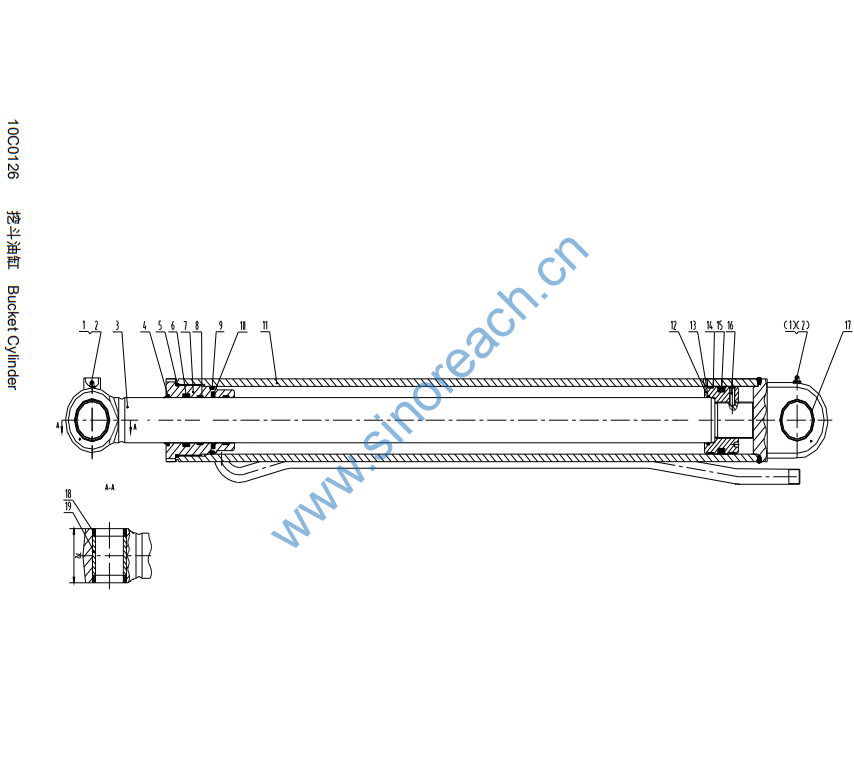

CLG766 10C0126 挖斗油缸 Bucket Cylinder

1 10B0014 GB1152-89 油杯 Fitting M10X1 2
2 86A0258 油杯护套 Sleeve 2
3 14L0009 活塞杆 Piston plle 1
4 13B0145
A1 6005
P5008
防尘圈
Circle
1
5 12B0230 GB3452.1-92 “O”形圈 ë Oí ring 90X5.3 1
6 13B0266
BS6070
P5008
密封圈
Ring
1
7 04A0343 缸盖
Cylinder
cover
1
8 13B0277 FR6005Q5029 支撑环 Bolster ring 2
9 12B0202 GB3452.1-92 “O”形圈 ë Oí ring 80X5.3 1
10 13B0267
BR060A
00601
缓冲件
Buffer
1
11 13D0167 缸体 Cylinder.As 1
12 50A0090 活塞 piston 1
13 12B0024 GB3452.1-92 “O”形圈 ë Oí ring 60X3.55 1
14 13B0278
FR8509
Q5029
支撑环
Supporting
ring
2
15 13B0279
Y3090C
00668
密封圈
Seal
1
16 04J0005 GB79-85 螺钉 Screw M8X18 1
17 55A0821 轴衬 Bushing 1
18 13B0280 防尘圈 Ring 4
19 55A0820 轴衬 Bushing 1
