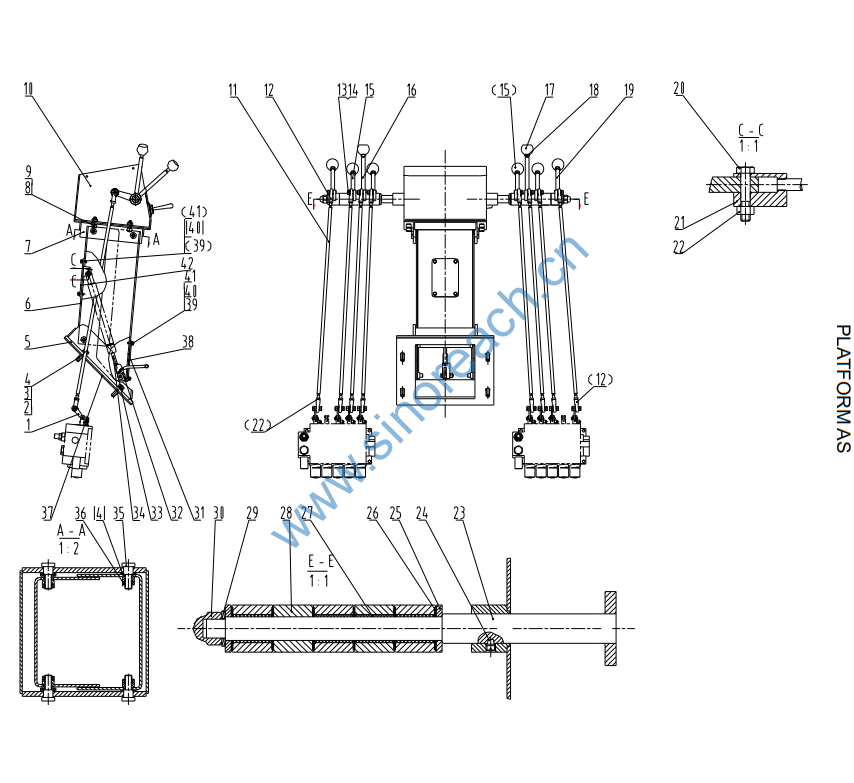

CLG418 47C0551 000 操纵台总成 PLATFORM AS

1 24C0252 004 阀杆连杆机构总成 LINKAGE AS 8
2 00B0239 000 螺栓 BOLT 4
3 06B0008 000 垫圈 WASHER 4
4 06B0007 000 垫圈 WASHER 16
5 23D0454 000 底座 BASE 1
6 00D1574 000 前支架总成 BRACKET AS 1
7 23D0559 000 支架 BRACKET 1
8 04B0022 000 螺钉 SCREW 4
9 06B0002 000 垫圈 WASHER 4
10 23D0881 000 驾驶室 CAB 1
11 64A0261 000 拉杆 LINKAGE 8
12 25B0034 001 杆端关节轴承 KNUCKLE BEARING 20
13 00B0052 000 螺栓 BOLT 10
14 06B0006 000 垫圈 WASHER 10
15 16D0395 000 摇杆 HANDLE 4
16 16D0204 000 摇杆 HANDLE 2
17 86A0308 001 手柄球 KNOB 8
18 03B0053 000 螺母 NUT 8
19 16D0205 000 摇杆 HANDLE 2
20 61A0377 001 销轴 PIN 1
21 17A0808 000 弹簧叉 FORK 1
22 03B0021 000 螺母 NUT 17
23 61A0624 000 轴 SHAFT 2
24 04B0246 000 螺钉 SCREW 2
25 06B0016 000 垫圈 WASHER 4
26 86A0185 001 隔垫 SPACER WASHER 12
27 86A0184 000 轴套 BUSHING 8
28 55A0992 000 套 BUSHING 2
29 06B0012 000 垫圈 WASHER 2
30 03B0495 000 螺母 NUT 2
31 00D1573 000 后支架总成 BRACKET AS 1
32 23D0464 000 操纵座总成 SUPPORT AS 1
33 03B0334 000 螺母 NUT 1
34 24C0151 000 可调气弹簧 AIR SPRING 1
35 61A0378 000 销 PIN 8

36 03B0003 000 螺母 NUT 8
37 82A0287 000 橡胶垫 RUBBER WASHER 1
38 02D1310 000 后支座 SEAT 1
39 00B0022 000 螺栓 BOLT 8
40 06B0003 000 垫圈 WASHER 8
41 06B0024 000 垫圈 WASHER 8
42 02D1311 001 前支座 SEAT 1
