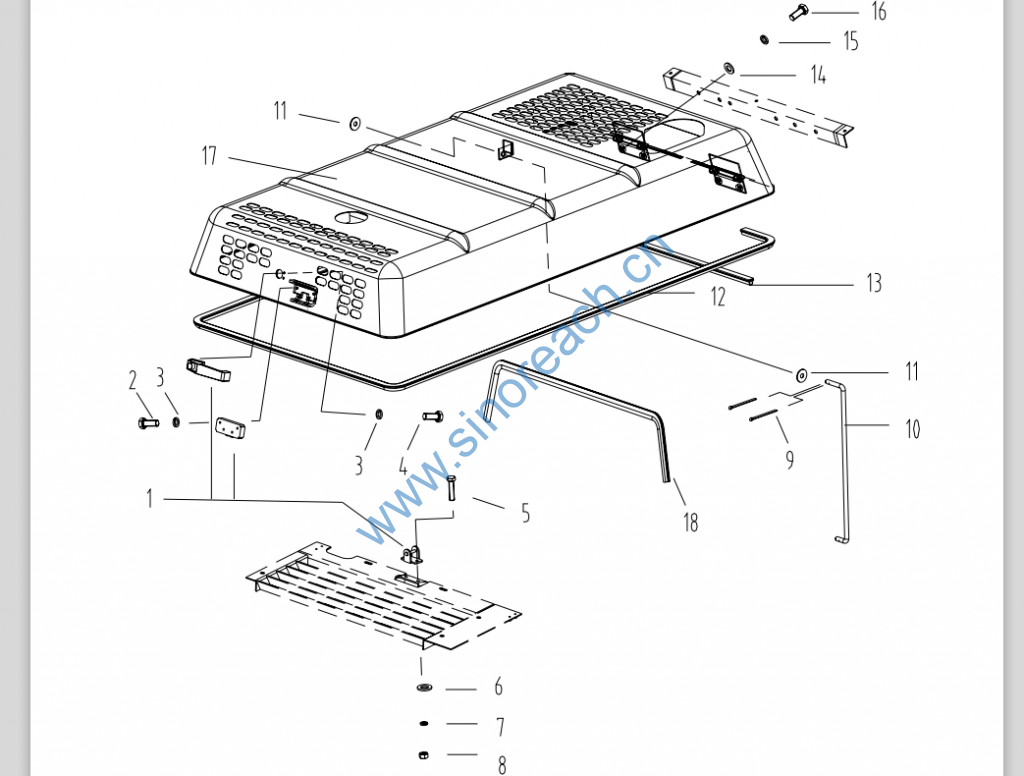

CLG200 机罩总成 Cover Assembly

1 34C0051 机罩锁 Lock 1 NBS714
2 00B0023 螺栓 M6×25-8.8-Zn.D Bolt 4 GB5783-86
3 06B0003 垫圈 6 Lock washer 7 GB93-87
4 00B0022 螺栓 M6×16-8.8-Zn.D Bolt 3 GB5783-86
5 00B0020 螺栓 M8×30-8.8-Zn.D Bolt 2 GB5783-86
6 06B0086 垫圈 8-140HV-Zn.D Washer 2 GB96-85
7 06B0006 垫圈 8 Lock washer 2 GB93-87
8 03B0021 螺母 M8-8-Zn.D Nut 2 GB6170-86
9 08B0011 开口销 2×36 Split Pin 4 GB91-86
10 26A0001 圆钢 Bar 1
11 06B0009 垫圈 14-140HV-Zn.D Washer 4 GB97.1-85
12 84A0182 密封条 Sealing Strip 1
13 84A0183 密封条 Sealing Strip 1
14 06B0001 垫圈 10-140HV-Zn.D Washer 4 GB97.1-85
15 06B0002 垫圈 10 Lock washer 4 GB93-87
16 00B0002 螺栓 M10×35-8.8-Zn.D Bolt 4 GB5783-86
17 48C0043 顶盖板 Cover 1
18 84A0187 密封条 Sealing Strip 1
