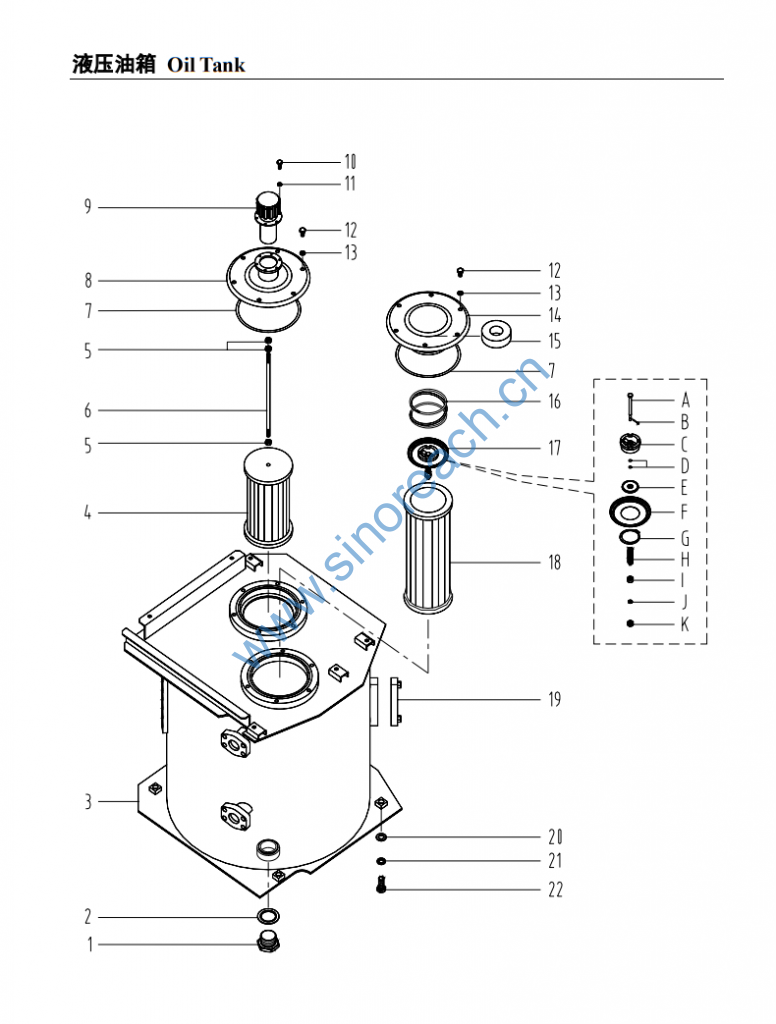

CLG200 液压油箱 Oil Tank

1 03B0043 螺塞 M48×2 Plug 1 JB1000-77
2 06B0023 垫圈 48 Washer 1 JB982-77
3 04D0007 油箱 Tank 1 04N2402
4 53C0002 吸油滤芯 Filter 1 YLX-193
5 03B0042 螺母 M10-8-Zn.D Nut 3 GB6170-86
6 77A0012 杆 Link 1 04N0102
7 12B0306 O 形圈 190×5.3 O-ring 2 GB3452.1-92
8 36D0009 盖 Cover 1 04N1306
9 88A0084 空气滤清器 Air Filter 1 PAF2-35-55-10F
10 00B0036 螺栓 M4×12-8.8-Zn.D Bolt 6 GB5783-86
11 06B0022 垫圈 4 Lock Washer 6 GB93-87
12 00B0005 螺栓 M10×20-8.8-Zn.D Bolt 12 GB5783-86
13 06B0002 垫圈 10 Lock Washer 12 GB93-87
14 36D0008 盖 Cover 1 04N1322
15 88A0085 磁铁 Magnet 1
16 10B0011 弹簧 Spring 1 04N0701
17 12C0003 单向阀 Valve 1 04N2101
17A 65A0004 阀杆 Link 1 04N2103
17B 08B0010 销 1.6×20 Cotter Pin 1 GB91-86
17C 72A0015 阀座 Valve Body 1 04N4801
17D 12B0027 O 形圈 6.7×1.8 O-ring 2 GB3452.1-92
17E 72A0016 阀芯 Spool 1 04N4802
17F 53A0021 阀盖 Cover 1 04N2102
17G 07B0008 挡圈 56 Gard Ring 1 GB894.1-86
17H 10B0012 弹簧 Spring 1 04N0702
17I 72A0017 弹簧座 Spring Base 1 04N4803
17J 06B0024 垫圈 6-140HV-Zn.D Washer 1 GB97.1-85
17K 03B0036 螺母 M6-8-Zn.D Nut 1 GB6170-86
18 53C0003 回油滤芯 Filter 1 YLX-192
19 44C0015 液位计 Level Indicator 1 YWZ-150
20 06B0012 垫圈 16-140HV-Zn.D Washer 4 GB97.1-85
21 06B0015 垫圈 16 Lock Washer 4 GB93-87
22 00B0014 螺栓 M16×40-8.8-Zn.D Bolt 4 GB5783-86
