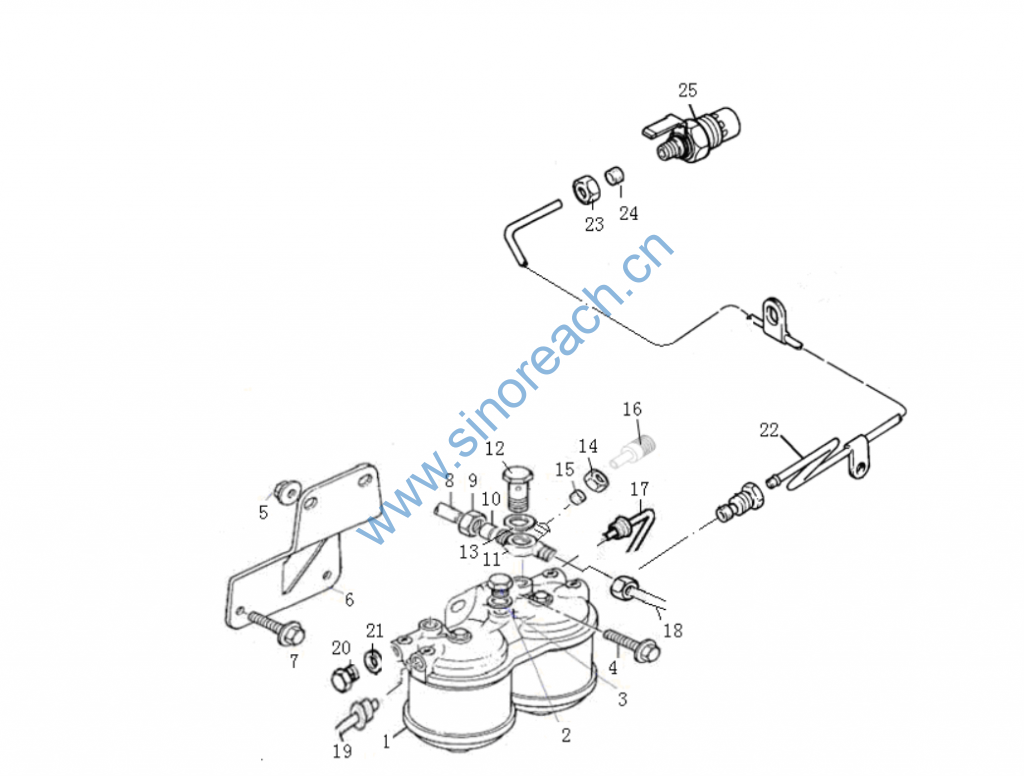

VBH01457 Low Pressure Fuel System

1 VB17C 003 T64102002A 滤清器 Fuel filter 1 1 1 1 1 1
1 VB17C 003 T75004260 滤清器 英文标识 1 1 1 1 1 1
2 VB17C 010 T32184226 堵 Plug 2 2 2 2 2 2 2 2 2 2 2 2
3 VB17C 013 T2411294 垫圈 Washer 2 2 2 2 2 2 2 2 2 2 2 2
4 VB17C 040 T2314J006 螺栓 Screw 2 2 2 2 2 2 2 2 2 2 2 2
5 VB17C 070 T2318A604 螺母 Nut 2 2 2 2 2 2 2 2 2 2 2 2
6 VB17C 220 T3818D013 支架 Bracket 1 1 1 1 1 1 1 1 1 1 1 1
7 VB17C 295 T2314J002 螺栓 Screw 1 1 1 1 1 1 1 1 1 1 1 1
8 VB17N 100 T3425M006 油管 Oil pipe 1 1 1 1 1 1 1 1 1 1 1 1
9 VB17N 118 T33225412 螺母 Nut 2 2 2 2 2 2 2 2 2 2 2 2
10 VB17N 121 T33811112 橄榄体 Olive 2 2 2 2 2 2 2 2 2 2 2 2
11 VB17N 148 T73217019 接头 Connection 1 1 1 1 1 1 1 1 1 1 1 1
12 VB17N 151 T0095344A 过油螺栓 Screw 1 1 1 1 1 1 1 1 1 1 1 1
13 VB17N 154 T73208144 垫圈 Washer 2 2 2 2 2 2 2 2 2 2 2 2
14 VB17N 283 T0576113 螺母 Nut 1 1 1 1 1 1 1 1 1 1 1 1
15 VB17N 286 T0566004 橄榄体 Olive 1 1 1 1 1 1 1 1 1 1 1 1
16 VB * T63214200 回油接头 Connection 1 1 1 1 1 1 1 1 1 1 1 1 17 AF* T4121C031E 油管 Oil pipe 1 1 1 1 1 1 1 1 1 1 1 1
18 AF* T73217028A 油管 Oil pipe 1 1 1 1 1 1 1 1 1 1 1 1 19 AF* T63201702 油管 Oil pipe 1 1 1 1 1 1 1 1 1 1 1 1
20 AF* T0650204 堵 Plug 1 1 1 1 1 1 1 1 1 1 1 1 21 AF* T73274309 垫圈 Washer 1 1 1 1 1 1 1 1 1 1 1 1
22 ZE25B094 T4124E014 油管 Oil pipe 1 1 1 1 1 1
22 ZE25B094 T4124E022 油管 Oil pipe 1 1 1 1 1 1
23 ZE25B 097 T33225412 螺母 Nut 1 1 1 1 1 1 1 1 1 1 1 1
24 ZE25B 103 T33811112 橄榄体 Olive 1 1 1 1 1 1 1 1 1 1 1 1
25 WD25B 010 2666106 预热塞(24V) Preheating plug 1 1 1 1
25 WD25B 010 T2666108A 预热塞(12V) Preheating plug 1 1 1 1 1 1 1 1
