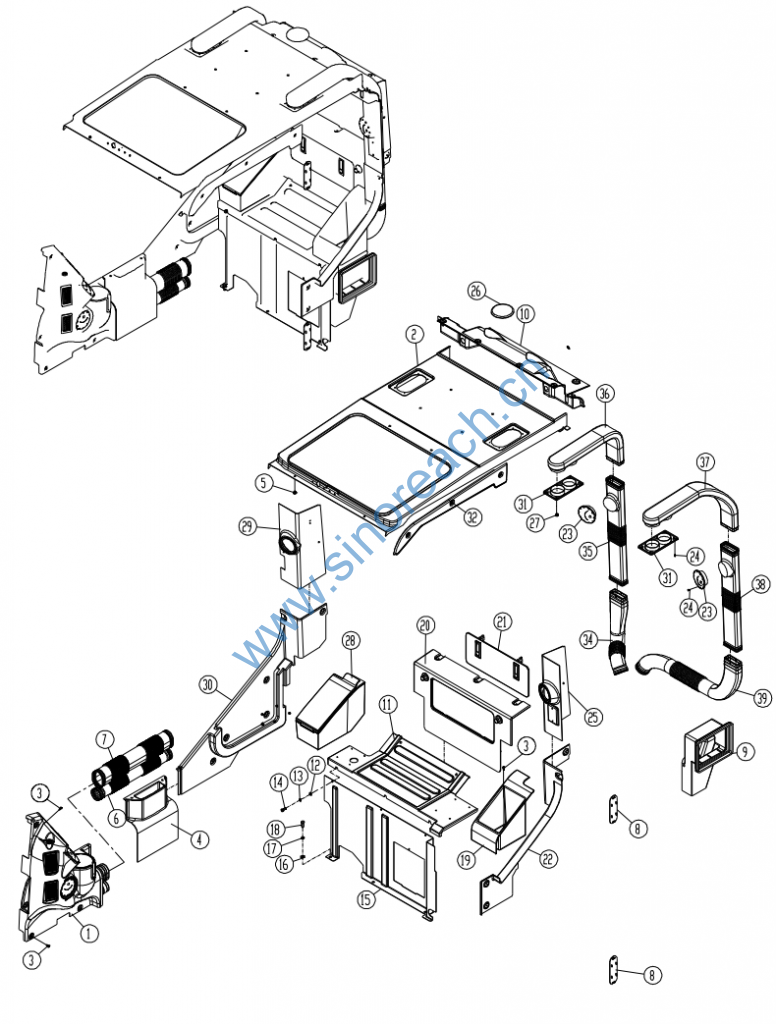

47C1349 001 内饰件总成 DECORATION AS

1 37C1250 000 前罩 COVER 1
2 86A2561 000 上盖板 COVER 1
3 04B0056 000 螺钉 SCREW 28
4 86A2554 000 压板 PLATE 1
5 47C1890 000 扣紧件 FASTENER 20
6 86A1355 000 风道 AIR DUCT 1
7 86A1354 000 风道 AIR DUCT 1
8 86A1118 000 盖 COVER 2
9 37C0931 000 风道总成 AIR DUCT AS 1
10 86A2567 000 后盖板 COVER 1
11 23D3347 000 上盖板 COVER 1
12 06B0005 000 垫圈 WASHER 5
13 06B0219 000 垫圈 WASHER 5
14 00B0075 000 螺栓 BOLT 5
15 23D3348 000 下盖板 COVER 1
16 06B0152 000 垫圈 WASHER 3
17 06B0002 000 垫圈 WASHER 3
18 00B0012 000 螺栓 BOLT 3
19 86A2555 000 储物盒 STORAGE BOX 1
20 47C2485 000 后盖板 COVER 1
21 47C2482 000 后盖板 COVER 1
22 86A2570 000 盖板 COVER 1
23 46C4556 001 圆形风口 VENT 2
24 04B0173 000 螺钉 SCREW 16
25 86A2568 000 盖板 COVER 1
26 86A1004 000 后顶盖 COVER 1
27 27A1867 000 弯板 PLATE 16
28 27C0832 000 冷藏箱 FRIDGE 1
29 86A2569 000 盖板 COVER 1
30 86A2571 000 盖板 COVER 1
31 47C1539 000 风口 VENT 2
32 86A1190 000 盖板 COVER 1
33 04B0106 000 螺钉 SCREW 3
34 86A1359 000 风道 AIR DUCT 1
35 86A1632 000 风道 AIR DUCT 1
36 86A1360 000 风道 AIR DUCT 1
37 86A1358 000 风道 AIR DUCT 1
38 86A1357 000 风道 AIR DUCT 1
39 86A1356 000 风道 AIR DUCT 1
