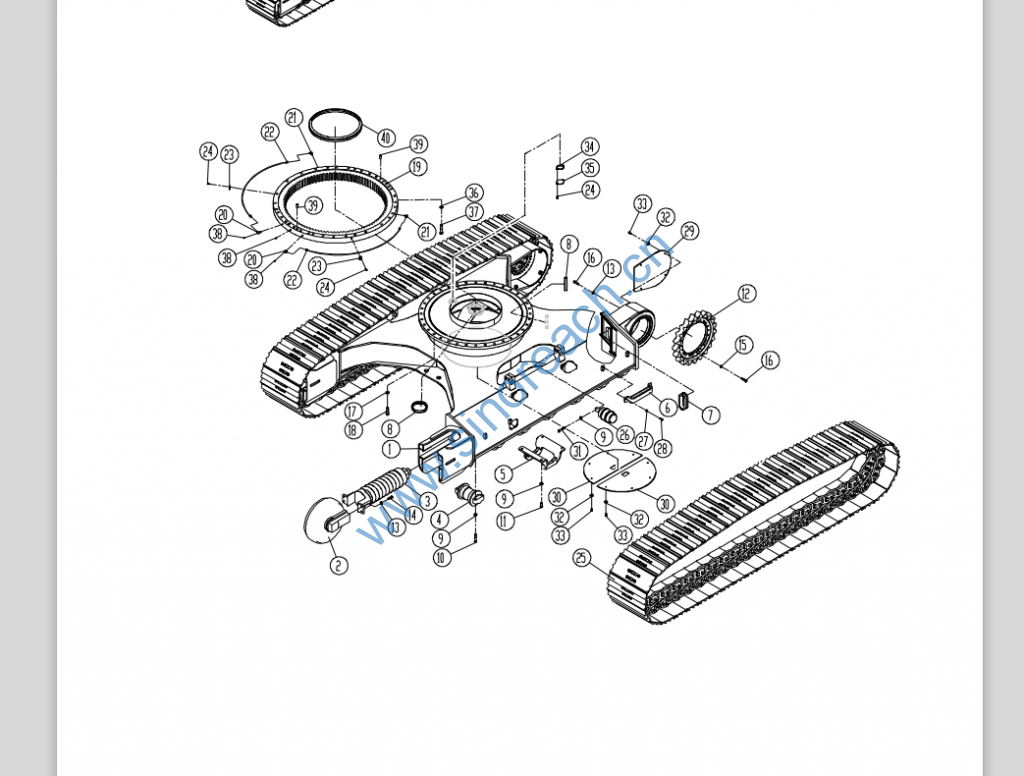

CLG920E/922E 33E0176 001 履带行走系统 UNDERCARRIAGE SYSTEM

1 30D1576 001 组合式行走架 TRACK FRAME 1
2 51C0270 001 引导轮总成 IDLER AS 2 51C0270
3 44C0640 002 张紧装置 TENSIONER 2 Z
4 14C0151 001 支重轮 TRACK ROLLER 14 JJ-A2029-DP
5 48D0208 001 履带护罩 GUARD 2
6 02D1754 003 脚踏总成 PEDAL AS 4
7 84A0216 001 橡胶护罩 GUARD 2
8 84A1505 000 橡胶护罩 GUARD 3
9 06B0223 000 垫圈 WASHER 72
10 01B0020 000 螺栓 BOLT 56
11 00B0183 000 螺栓 BOLT 8
12 46A0140 000 驱动轮 SPROCKET 2
13 06B0221 000 垫圈 WASHER 68
14 00B0436 000 螺栓 BOLT 8
15 06B0433 002 垫圈 WASHER 61
16 01B0489 000 螺栓 BOLT 120
17 06B0220 000 垫圈 WASHER 36
18 01B0510 000 螺栓 BOLT 36
19 26B0136 001 回转支承 SWING BEARING 1
20 02A1163 000 接头 CONNECTOR 2
21 01A0134 001 接头 CONNECTOR 2 04Q1102
22 00C2215 000 油管总成 OIL PIPE AS 2
23 20A1860 001 管夹 CLAMP 2
24 00B0056 000 螺栓 BOLT 4
25 25C0704 000 履带总成 TRACK AS 2
26 51C0035 001 托链轮总成 CARRIER ROLLER 4
27 06B0007 000 垫圈 WASHER 16
28 00B0035 000 螺栓 BOLT 16
29 12A7643 000 盖板 COVER 2
30 12A7642 000 底封板 BOTTOM PLATE 2
31 01B1131 000 螺栓 BOLT 8
32 06B0059 000 垫圈 WASHER 16
33 00B0011 000 螺栓 BOLT 16
34 82A0024 000 垫片 SHIM 1
35 12A0020 000 盖板 COVER 1
36 06B0660 000 垫圈 WASHER 36
37 01B0504 000 螺栓 BOLT 36
38 10B0014 000 油杯 GREASE FITTING 3
39 08V0135 000 销 PIN 2
40 84A2060 000 密封圈 SEAL RING 1
