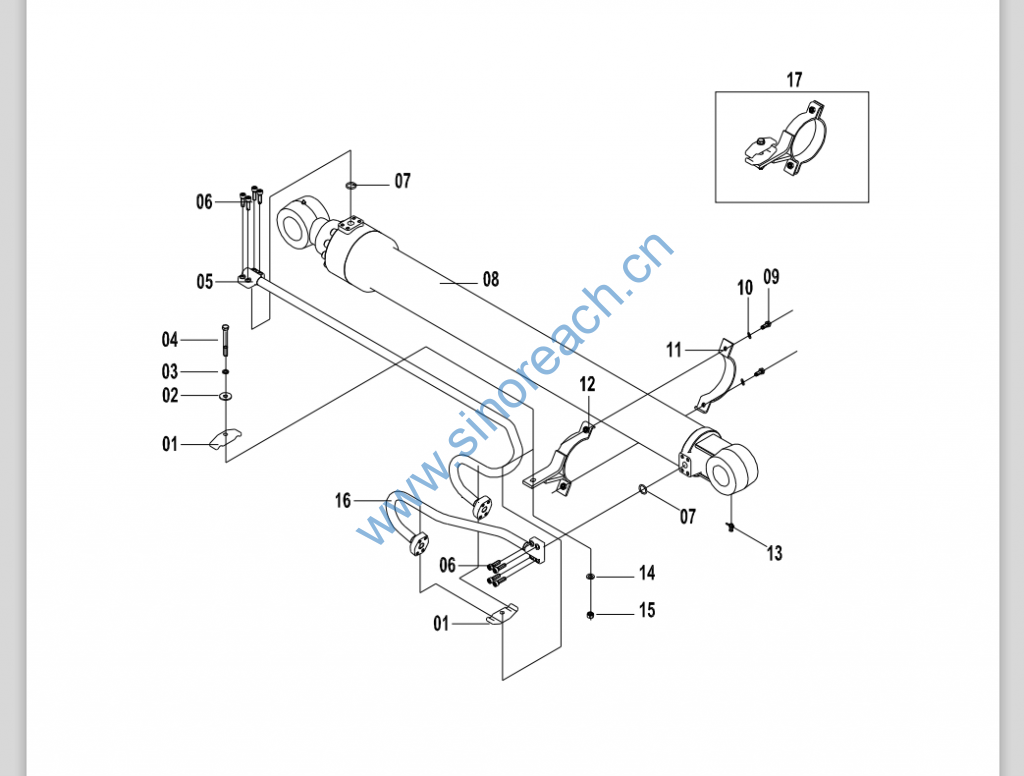

CLG920E/922E 10C1951 002 右动臂油缸总成 BOOM CYLINDER AS-RH

01 72A1369 000 管夹 CLAMP 2
02 06B0008 000 垫圈 WASHER 1
03 06B0007 000 垫圈 WASHER 1
04 01B0160 000 螺栓 BOLT 1
05 10D4766 001 钢管 TUBE 1
06 04B0415 000 螺钉 SCREW 8
06 04B0416 000 螺钉 SCREW 8 04B0415
07 12B0444 002 O 形圈 O-RING 2
08 10C1856 001 右动臂油缸 BOOM CYLINDER-RH 1 Z
09 00B0019 000 螺栓 BOLT 2
10 06B0001 000 垫圈 WASHER 2
11 06A3955 000 管夹 CLAMP 1
11 21A1237 000 管夹 CLAMP 1 06A3955
12 17D0472 000 管夹 CLAMP 1 17D0819
12 17D0819 000 管夹 CLAMP 1
13 86A0258 002 油杯护套 BOOT 1
14 06B0059 000 垫圈 WASHER 1 1
15 03B0003 000 螺母 NUT 1
16 10D4774 001 钢管 TUBE 1
17 09C0798 000 管夹 CLAMP 1 09C1481
17 09C1481 000 管夹 CLAMP 1 Z
