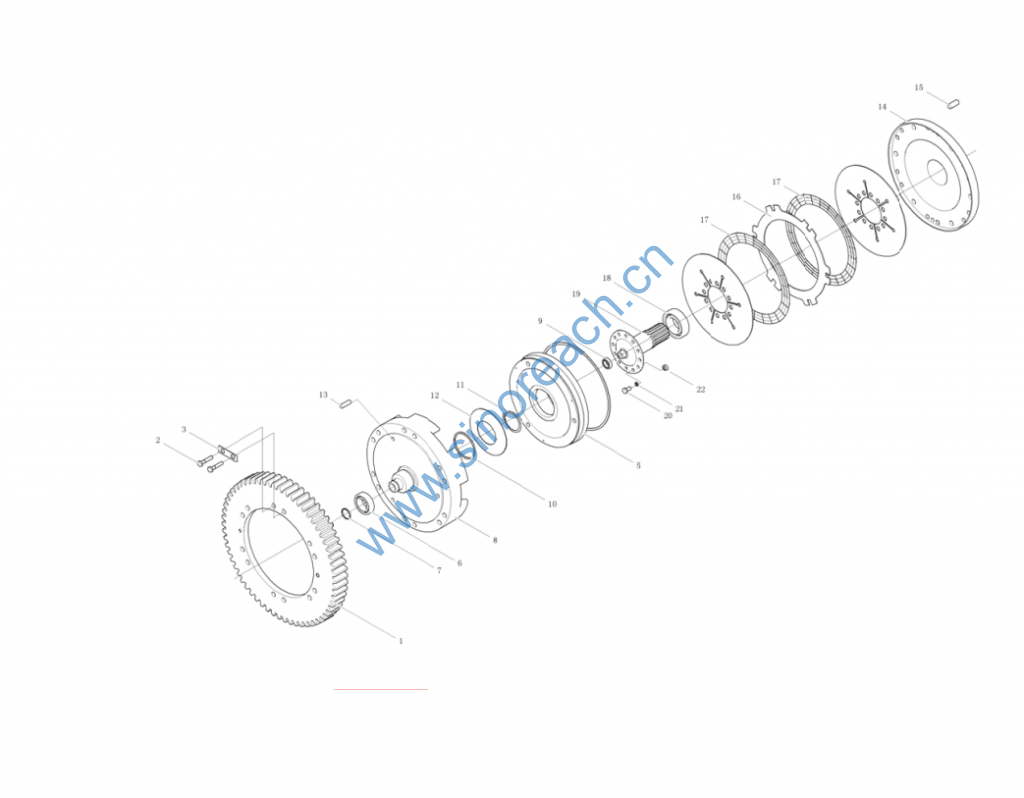

CLG835 42C0102 000 直接档组件 DIRECT DRIVE CLUTCH PISTON ASSEMBLY

1 41A0045 中间输出轴齿轮
INTERMEDIA
TE SHAFT
DRIRE GEAR
1
2 02B0022 GB32.1-88 螺栓 BOLT M12×100-8.8-ZN.D 12
3 06B0008 GB93-87 垫圈 WASHER 12 12
4 77A0014 铁丝 STEEL WIRE Φ2×140 1
5 42C0009 BS305.6 直接挡活塞总成
DIRECT
DRIVE
CYLINDER
1
6 21B0006 GB/T276-1994 球轴承 6311 BALL
BEARING 55×120×29 1
7 80A0020 BS305-38 油封环 SEAL RING STF-3 1
8 39A0005 BS305.5-1 直接挡油缸
DIRECT
DRIVE
CYLINDER
1
9 21B0009 GB/T276-1994 球轴承 6204 BALL
BEARING 20×47×14 1
10 80A0019 BS305-37A 油封环 SEAL RING 1
11 07B0010 GB894.1-86 挡圈 SNAP RING 65 1
12 75A0008 BS305-40 碟形弹簧 PISTON
RETURN 1
13 08B0018 GB119-86 销 PIN D10×30 3
14 52A0017 BS305.8-1 直接挡受压盘 REACTION
MEMBER 1
15 60A0046 BS305.8-2 圆柱销 ANCHOR PIN 6
16 56A0028 BS305-43 直接挡从动片 DRIVEN
PLATE 1
17 37C0001 直接挡主动片总
成
DIRECT
DRIVE
CLUTCH
2
18 21B0010 GB/T276-1994 球轴承 6022 BALL
BEARING 110×170×28 1
19 62A0010 BS305-39 直接挡轴 SHAFT 1
20 00B0075 GB5783-86 螺栓 BOLT M8×20-8.8-ZN.D 12
21 06B0005 GB97.1-85 垫圈 WASHER 8-140HV-ZN.D 12
22 03B0021 GB6170-86 螺母 NUT M8-8-ZN.D 12
23 10A0063 BS305-41 扣紧片 RETAINING
PLATE 6
