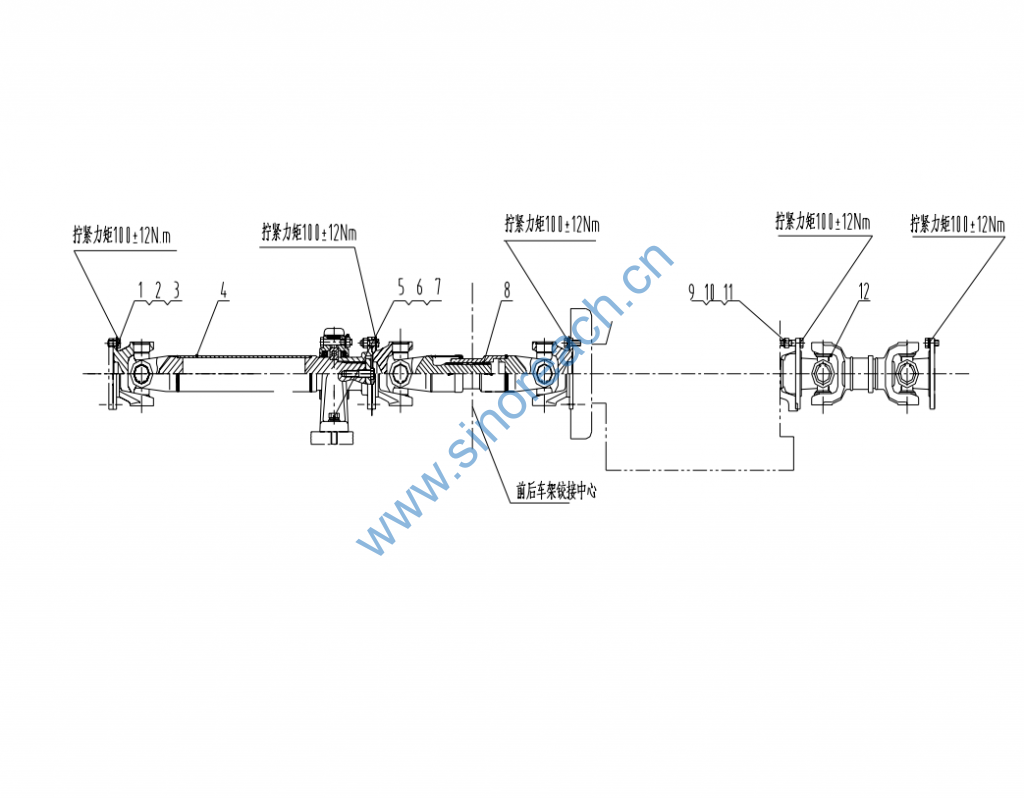

CLG835 03E0038 000 传动轴系统 DRIVE SHAFT ASSEMBLY

1 00B0011 GB5783-86 螺栓 BOLTS M12X25-8.8-ZN.D 16
2 06B0008 GB93-87 垫圈 WASHER 12 16
3 06B0020 GB97.1-85 垫圈 WASHER 12-200HV-ZN.D 16
4 41C0089 前传动轴及支
承总成
FRONT DRIVE
SHAFT AND
MIDDLE
SUPPORT
1
5 00B0246 GB5783-86 螺栓 BOLTS M16X55-8.8-ZN.D 2
6 06B0015 GB93-87 垫圈 WASHER 16 2
7 06B0098 GB97.1-85 垫圈 WASHER 16-200HV-ZN.D 2
8 51C0072 ZL30.4.1 中间传动轴 MIDDLE DRIVE
SHAFT 1
9 04B0007 ZL50C.4-1 铰孔螺栓 BOLT 8
10 03B0025 CB071215-3 锁紧螺母 LOCKING NUT 8
11 06B0115 GB97.1-85 垫圈 WASHER 14-200HV 8
12 51C0076 ZL30.5.1 前后桥传动轴
总成
REAR DRIVE
SHAFT 1
