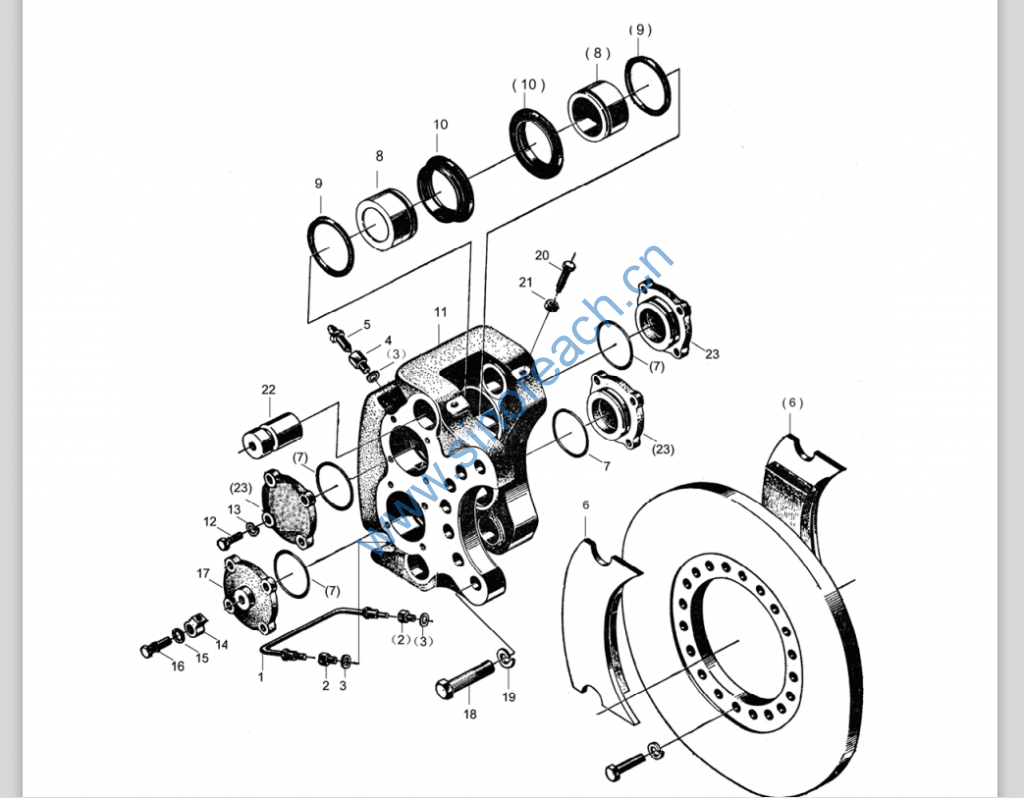

CLG835 45C0004 001 夹钳总成 TORQUE PLATE ASSEMBLY

1 05C0007 ZL50C.2.2.1A 油管总成 OIL PIPE
ASSEMBLY 1
2 00A0040 ZL50C.2.2-1A 接头 JOINT 2
3 56A0045 ZL50C.2.2-2 垫圈 WASHER 4
4 00A0041 ZL50C.2.2-3 放气嘴座 BLEEDER
VALVE SEAT 2
5 00A0044 ZL50C.2.2-4 放气嘴 BLEEDER
VALVE 2
6 35C0025 ZL50C.2.2.2 摩擦衬块总
成
BRAKE
LINING
ASSEMBLY
2
7 12B0481 GB1235-76 O 形圈 “O” RING 70×3.1 4
8 50A0009 ZL50C.2.2-5 活塞 PISTON 4
9 13B0108 ZL50C.2.2-6A 矩形密封圈 SEAL RING 69.2×79.2×4 4
10 13B0008 ZL50C.2.2-7 防尘圈 BOOT 63.5×94×13.6 4
11 71A0018 ZL50C.2.2-8 夹钳 TORQUE
PLATE 1
12 00B0019 GB5783-86 螺栓 BOLT M10×30-8.8-ZN.D 16
13 06B0002 GB93-87 垫圈 WASHER 10 16
14 00A1965 管接头 PIPE JOINT 1
15 12B0245 GB3452.1-92 O 形圈 “O” RING 20×1.8 2
16 00A0356 ZL50C.2.2 A -5 管接头螺栓 BOLT 1
17 53A0042 ZL50C.2.2-12 下油缸盖
LOWER
CYLINDER
CAP
1
18 01B0043 ZL50C.2.2-13 螺栓 BOLT 7
19 06B0014 GB93-87 垫圈 WASHER 18 7
20 04B0027 ZL50C.2.2-14 止动螺钉 LOCK
SCREW 4
21 03B0053 GB6170-86 螺母 NUT M10-8-ZN.D 4
22 61A0045 ZL50C.2.2-15 销轴 PIN 4
23 53A0043 ZL50C.2.2-16 上油缸盖
UPPER
CYLINDER
CAP
3
