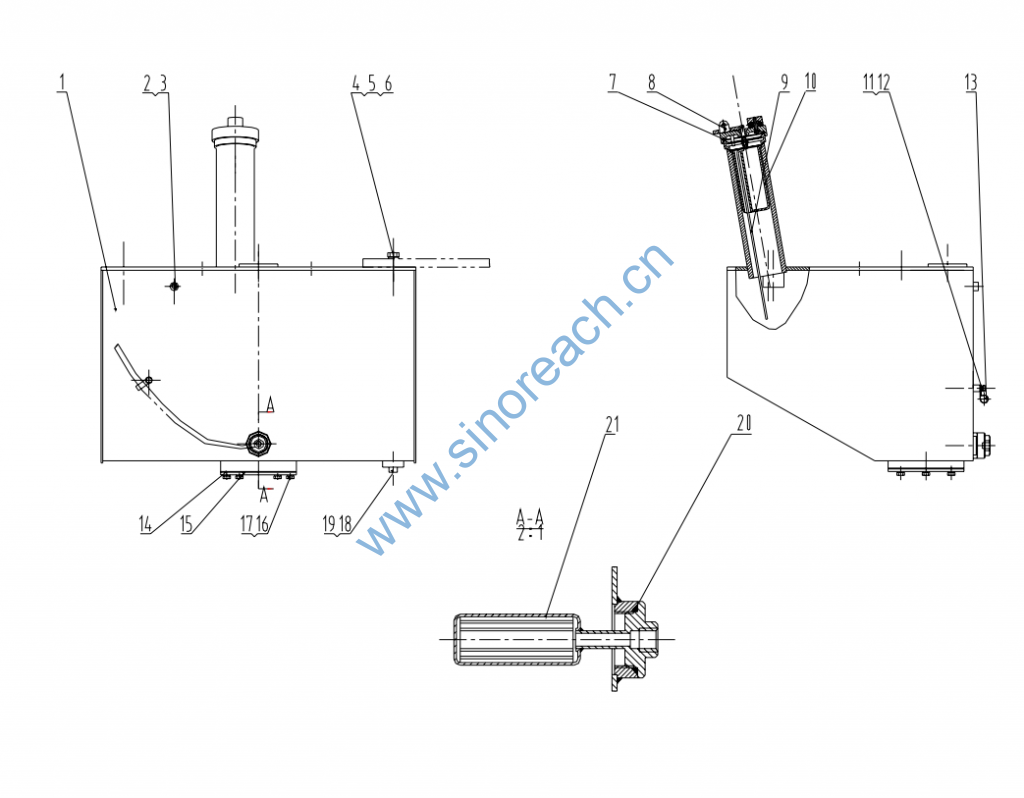

CLG835 21C0111 002 柴油箱 FUEL RESERVOIR

1 04D0224 柴箱体 TANK 1
2 04B0002 ZL50C.1.7-3 螺钉 BOLT 2
3 06B0117 垫圈 WASHER 14 4
4 00B0045 GB5783-86 螺栓 BOLT M16×50-8.8-ZN.D 4
5 06B0012 GB97.1-85 垫圈 WASHER 16-140HV-ZN.D 4
6 06B0015 GB93-87 垫圈 WASHER 16 4
7 07B0003 GB893.1-86 挡圈 RING 75 1
8 16C0004 透气盖 CAP 1
9 20A2588 油尺 PLUNGER 1
10 12D0072 滤筒 STRAINER 1
11 00B0026 GB5783-86 螺栓 BOLT M8×12-8.8-ZN.D 1
12 06B0006 GB93-87 垫圈 WASHER 8 1
13 10A0573 ZL30F.1.5A-2 管夹 CLIP 1
14 12B0238 GB3452.1-92 O 形圈 “O” RING 145×3.55 1
15 53A0140 ZL50CIII.10.3.4-1 法兰盖 COVER 1
16 00B0005 GB5783-86 螺栓 BOLT M10×20-8.8-ZN.D 6
17 06B0002 GB93-87 垫圈 WASHER 10 6
18 03B0024 BF25-24 螺塞 BOLT 1
19 12B0381 GB1235-76 O 形圈 “O” RING 40×3.1 1
20 12B0239 GB1235-76 O 形圈 “O” RING 48×3.5 1
21 50D0060 ZL50CIII.1.4.2 螺塞 BOLT 1
