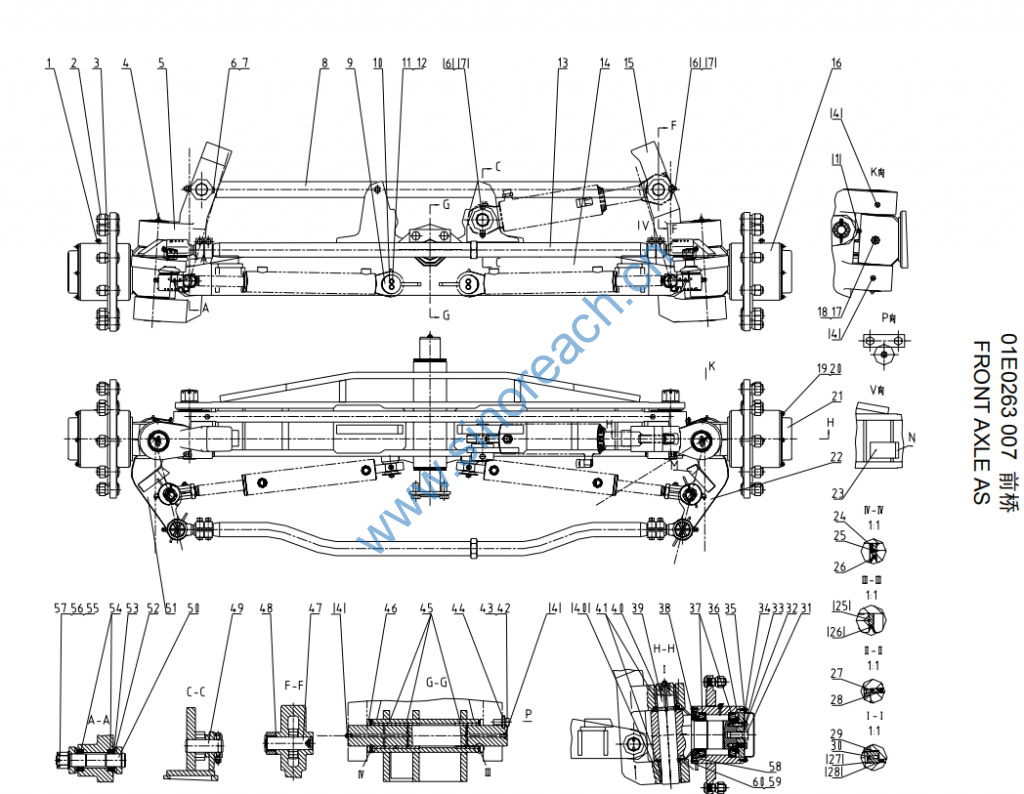

CLG414 01E0263 007 前桥 FRONT AXLE AS

1 10B0018 000 油杯 GREASE FITTING 4
2 03B0139 000 螺母 NUT 20
3 06B0252 000 垫圈 WASHER 20
4 10B0014 000 油杯 GREASE FITTING 8
5 24D0135 001 倾斜关节 LEAN-JOINT 1
6 01B0093 000 螺栓 BOLT 3
7 03B0053 000 螺母 NUT 6
8 24C0524 000 拉杆 DRAWBAR 1
9 52A0180 000 圆盘 DISC 2
10 06B0005 000 垫圈 WASHER 4
11 00B0085 000 螺栓 BOLT 4
12 06B0006 000 垫圈 WASHER 4
13 24C0525 000 拉杆 DRAWBAR 1
14 00D5209 000 前桥 FRONT AXLE 1
15 24D0136 001 倾斜关节 LEAN-JOINT 1
16 34C2172 000 前轮轮毂 FRONT WHEEL HUB 2
17 04B0447 000 螺钉 SCREW 2
18 03B0290 000 螺母 NUT 2
19 06B0003 000 垫圈 WASHER 12
20 00B0022 000 螺栓 BOLT 12
21 53A1403 000 端盖 COVER 2
22 24D0081 000 右转向节 STEERING KNUCKLE
AS-RH 1
23 17A3578 000 限位块 BLOCK 2
24 28C0051 000 调整垫 SHIM 1
25 56A0247 000 止推垫 THRUST SHIM 2
26 83A0339 000 V 型密封圈 V-RING 2
27 26B0016 000 推力垫圈 WASHER 6
28 83A0338 000 V 型密封圈 V-RING 4
29 28C0049 000 调整垫 SHIM 2
30 26B0015 000 推力滚针轴承 NEEDLE BEARING 2
31 00B0234 000 螺栓 BOLT 2
32 00B0058 000 螺栓 BOLT 12
33 76A0254 000 锁片 LOCK PLATE 6
34 53A0317 003 端盖 COVER 2
35 56A1875 001 密封垫 GASKET 2
36 28C0050 001 调整垫 SHIM 2
37 23B0060 000 圆锥滚子轴承 32018 TAP.ROLLER BRG 4
38 55A4143 000 轴套 BUSHING 2
39 60A0544 000 转向销 STEERING PIN 2
40 13B0196 000 防尘圈 DUST RING 4

41 55A1210 000 轴承 COB052 BEARING 4
42 00B0014 000 螺栓 BOLT 2
43 06B0015 000 垫圈 WASHER 2
44 53A0319 001 轴端档板 BAFFLE 1
45 55A2843 000 轴承 BEARING 3
46 61A1272 000 轴 SHAFT 1
47 60A0547 002 销轴 PIN 2
48 76A0119 000 环片 WASHER 2
49 60A0546 001 销轴 PIN 1
50 60A1617 000 销轴 PIN 2
51 24D0080 000 左转向节 STEERING KNUCKLE
AS-LH 1
52 56A0245 000 止推垫 THRUST SHIM 4
53 83A0337 000 V 型密封圈 V-RING 4
54 25B0024 000 轴承 GAC40S BEARING 4
55 03B0487 000 螺母 NUT 2
56 06B0064 000 垫圈 WASHER 2
57 08B0017 000 销 PIN 2
58 13B0885 000 油封 OIL SEAL 2
59 04B0292 000 螺钉 SCREW 12
60 11A6255 001 挡圈 SNAP RING 4
