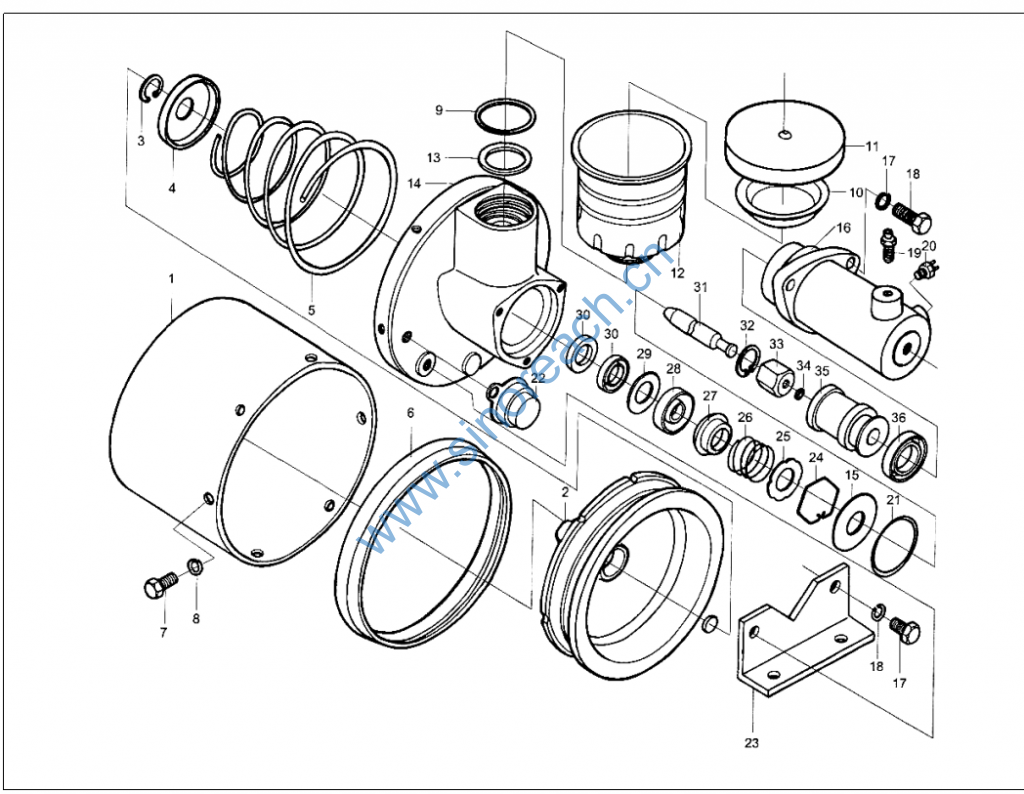

LW500F 空气加力泵 XM-60C Air Master Unit

1 加力泵体总成. Air Master Body 1
2 气活塞 Air Piston 1
3 轴用挡圈 18 Snap 1 GB894.1-86
4 限位垫圈 Lock Washer 1
5 回位弹簧 Spring 1
6 活塞皮圈 Piston Rubber Bowel 1
7 螺栓 M8X20 Bolt 6 GB5781-86
8 弹簧垫圈 8 Lock Washer 6 GB859-87
9 “O”形密封圈 O-ring 1
10 浮子 Float 1
11 油缸盖罩 Cylinder Head 1
12 贮油缸 Oil Cup Body 1
13 密封垫片 Seal Pad 1
14 端盖 Cover 1
15 垫板 Plate 1
16 液压缸体 Cylinder Body 1
17 弹簧垫圈 10 Lock Washer 5 GB859-87
18 螺栓 M10X30 Bolt 5 GB5781-86
19 放气螺钉 Screw 1
20 制动灯开关总成 Brake Switch 1
21 活塞密封圈 Piston Ring 1
22 排气盖总成 Cover 1
23 安装支架 Support 1
24 锁环 Lock Ring 1
25 活塞限位圈 Piston Ring 1
