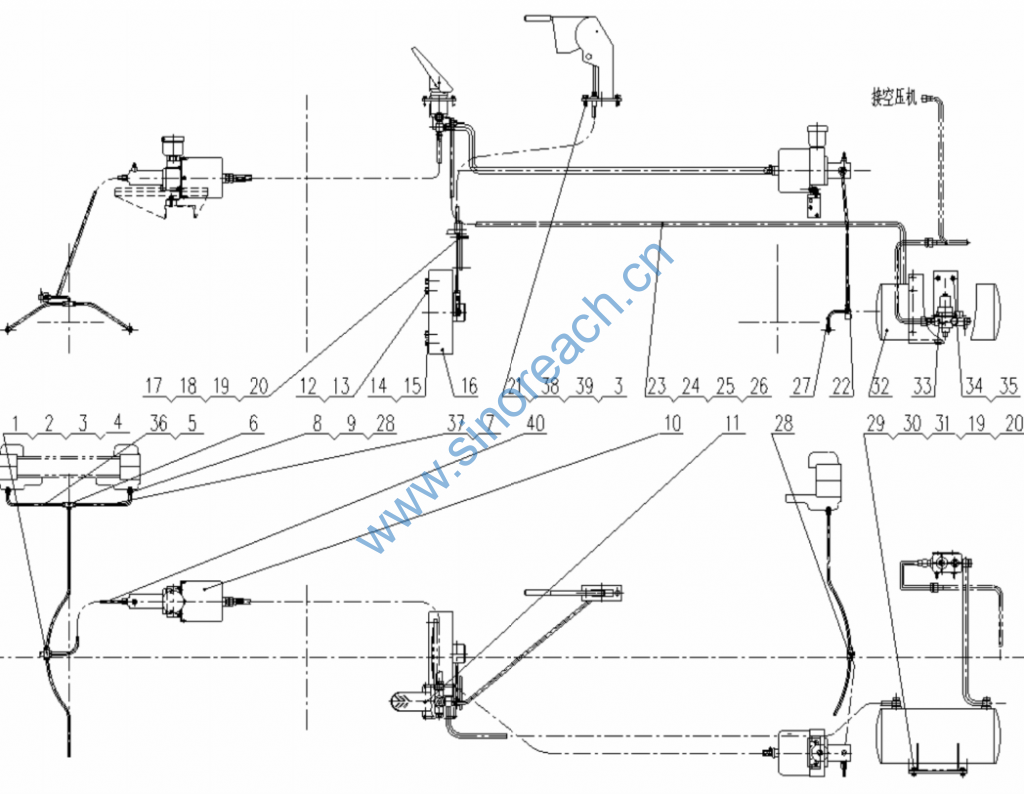

LW500F 制动系统 9103290 Brake System

1 9356457 三通接头 Joint 2
2 4005040 螺栓 M8×20 Bolt 6 GB5783-86
3 4401007 垫圈 8 Washer 9 GB93-87
4 9366690 前桥油管 Pipe 2
5 9353509 制动钳油管 I Pipe 2
6 9353501 接头体 Joint 2
7 9353511 制动钳油管 II Pipe 2
8 9354839 接头 Joint 6
9 4829011 垫圈 12 Seal Washer 6 Q/SC1294-2000
10 9370461 加力泵组 Energizing Cylinder 1
11 9365660 制动控制器 Brake Governor 1
12 9320135 联接螺钉 Bolt 6
13 4401010 垫圈 14 Washer 6 GB93-87
14 4007058 螺栓 M12×1.25×30 Bolt 8 GB5786-86
15 4401009 垫圈 12 Washer 8 GB93-87
16 9310265 制动器 Parking Brake 1
17 9302705 固定支座 Support 1
18 4005056 螺栓 M10×40 Bolt 2 GB5783-86
19 4401008 垫圈 10 Washer 8 GB93-87
20 4404009 垫圈 10 Washer 8 GB97.1-85
21 5006113 手制动控制器 Parking Brake Governor 1
22 9356414 后桥制动油管 Hose 1
23 5004950 管夹 Hose Clamp 3
24 4203072 螺钉 M6×12 Bolt 4 GB68-85
25 4401006 垫圈 6 Washer 4 GB93-87

26 4404007 垫圈 6 Washer 4 GB97.1-85
27 9353520 后桥油管 Oil Pipe 2
28 4827129 O 型圈 6×1.8 O-Ring 18 GB3452.1-1992
29 9309629 连接板 Support 1
30 4004244 螺栓 M10×30 Bolt 6 GB5782-86
31 4301009 螺母 M10 Nut 6 GB6170-86
32 9354931 储气缸 Air Reservoir 1
33 5000177 油水分离器组合阀 Multifunction Valve 1
34 9309628 固定支架 Support 1
35 4301008 螺母 M8 Nut 4 GB6170-86
36 9354835 制动钳油管 I Oil Pipe 2
37 9354837 制动钳油管 II Oil Pipe 2
38 4005043 螺栓 M8×35 Bolt 3 GB5783-86
39 4404008 垫圈 8 Washer 3 GB97.1-85
40 9366691 前桥刹车软管 Hose 1
