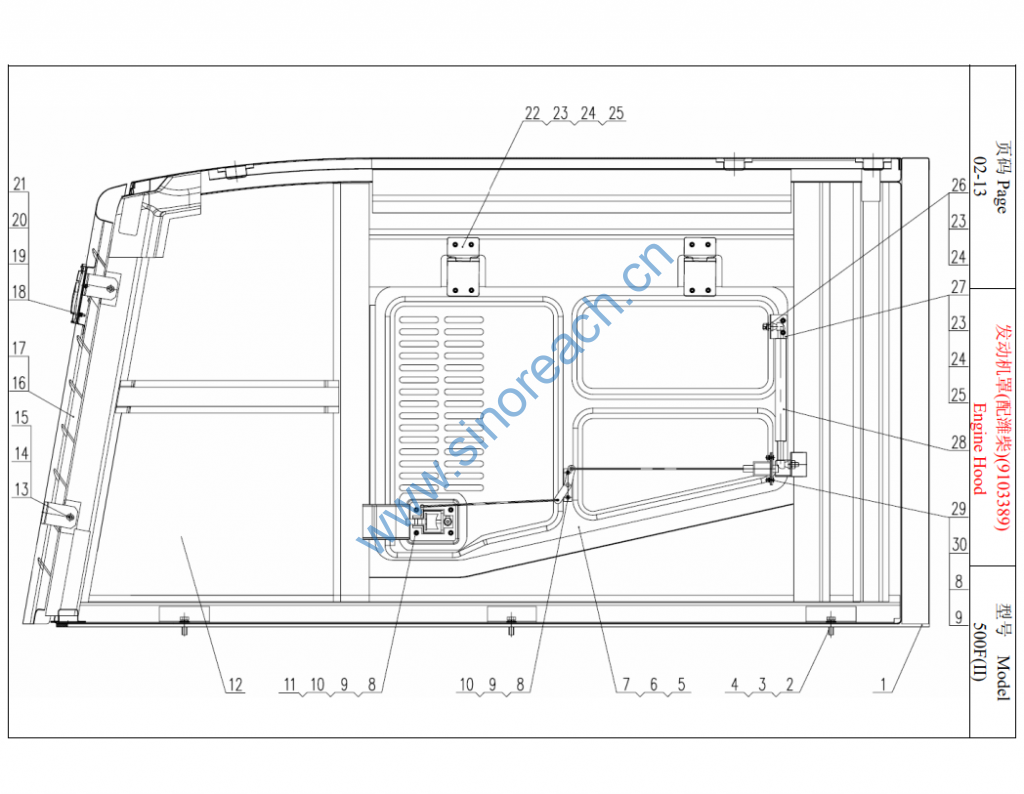

LW500F 发动机罩(配潍柴)) 9103389 Engine Hood

1 9363342 连接垫 Cushion 1
2 4005068 螺栓 M12X35 Bolt 6 GB5783-86
3 4401009 垫圈 12 Washer 6 GB93-87
4 4404010 垫圈 12 Washer 6 GB97.1-85
5 9365504 左门总成 Left Door 1
6 9364734 右门总成 Right Door 1
7 5006105 门防震密封条 Seal 1 JT-03A
8 4401006 垫圈 6 Washer 16 GB93-87
9 4404007 垫圈 6 Washer 16 GB97.1-85
10 4005029 螺栓 M6X16 Bolt 12 GB5783-86
11 5006146 门锁 Lock 2 182A
12 9366889 机罩焊接总成 Hood Weld Assembly 1
13 4005053 螺栓 M10X25 Bolt 4 GB5783-86
14 4401008 垫圈 10 Washer 4 GB93-87
15 4404009 垫圈 10 Washer 4 GB97.1-85
16 9367784 后挡罩 Rear Hood 1
17 5006103 后挡罩密封条 Sealing 1 JT-07A
18 9363764 标徽 Symbol 1
19 4301006 螺母 M5 Nut 3 GB6170-86
20 4401005 垫圈 5 Washer 3 GB93-87
21 4404006 垫圈 5 Washer 3 GB97.1-85
22 9363750 门铰链 Hinge 4
23 4005040 螺栓 M8X20 Bolt 20 GB5783-86
24 4401007 垫圈 8 Washer 24 GB93-87
25 4404008 垫圈 8 Washer 24 GB97.1-85

26 4301008 螺母 M8 Nut 4 GB6170-86
27 9363769 固定支架 Bracket 2
28 9363761 气弹簧 Air Spring 2
29 4211078 螺钉 M6X16 Screw 4 GB819-85
30 4301007 螺母 M6 Nut 4 GB6170-86
