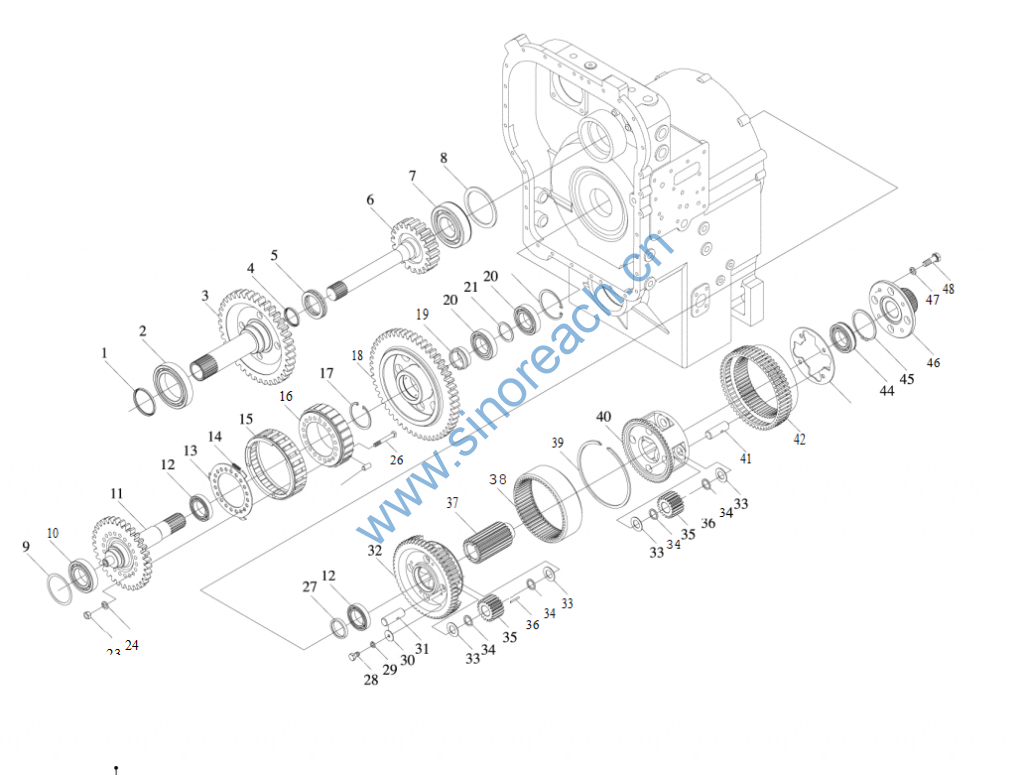

XG951 变速箱 Gearbox

11B0001 403101      1   Seal

2 31B0001 GB276—94 6016 1 Bearing
3 41A0001 403103 1 Gear
4 11B0002 403102 1 Seal
5 36B0001 GB301 -94 51 111 1 Bearing
6 41A0002 403104 1 Gear
7 31B0002 GB276—94 6311 1 Bearing
8 56A0002 403105 1 Spacer
9 56A0003 403202 1 Shim
10 31B0003 GB276—94 6211 1 Bearing
11 62A0001 403203 1 Shaft
12 31B0004 GB276—94 6010 1 Bearing
13 52A0126 403205C 1 Cover
14 52C0050 3 Spring
15 55A0148 403206C 1 Ring
16 49A0001 403209B 1 Cam
17 07B0033 GB893.1 —86 80 1 Snap ring
18 41A0003 403208A 1 Gear
19 54A0011 403210 1 Snap ring
20 31BOOOS GB276—94 6210 2 Bearing
21 SSAOOOS 40321 1 1 Ring
22 07B0029 GB983.1 —86 90 1 Snap ring
23 03B0077 GB6171—86 M10 x 1 20 Nut
24 06B0040 GB859—87 10 20 Washer
25 39B0002 403207B 24 Column
26 02B0007 403201 20 bolt
27 55A0006 403212 1 Spacer
28 01B0049 GB5783—86 M8 x 14 4 Bolt
29 06B0009 GB93 -87 8 4 Washer
30 06B0031 403215 4 Shims
31 61A0004 403221 4 Pin
32 72A0005 403213A 1 Planetary carrier
33 06B0032 403217 16 Shims
34 55A0007 403219 16 Sleeve
35 41A0004 403218 8 planet
36 39B0007 GB309—84 4 x 35 176 Needle
37 41A0005 403226 1 Sun gear
38 42A0001 403216 1 Ring gear
39 57A0001 403220 1 Snap ring
40 72A0054 403223A 1 Planetary carrier
41 61A0005 403227 4 Pin
42 42A0002 403222A 1 Ring gear
43 52A0185 403224A 1 Stop pan
44 31B0011 GB276—94 6210N 1 Bearing
45 07B0005 GB894. 1—86 90 1 Snap ring
46 52A0186 403225A 1 Connect pan
47 06B0013 GB93—87 12 4 Washer
48 00B1 120 GB5783—86 M12 x 30 4 Bolt
