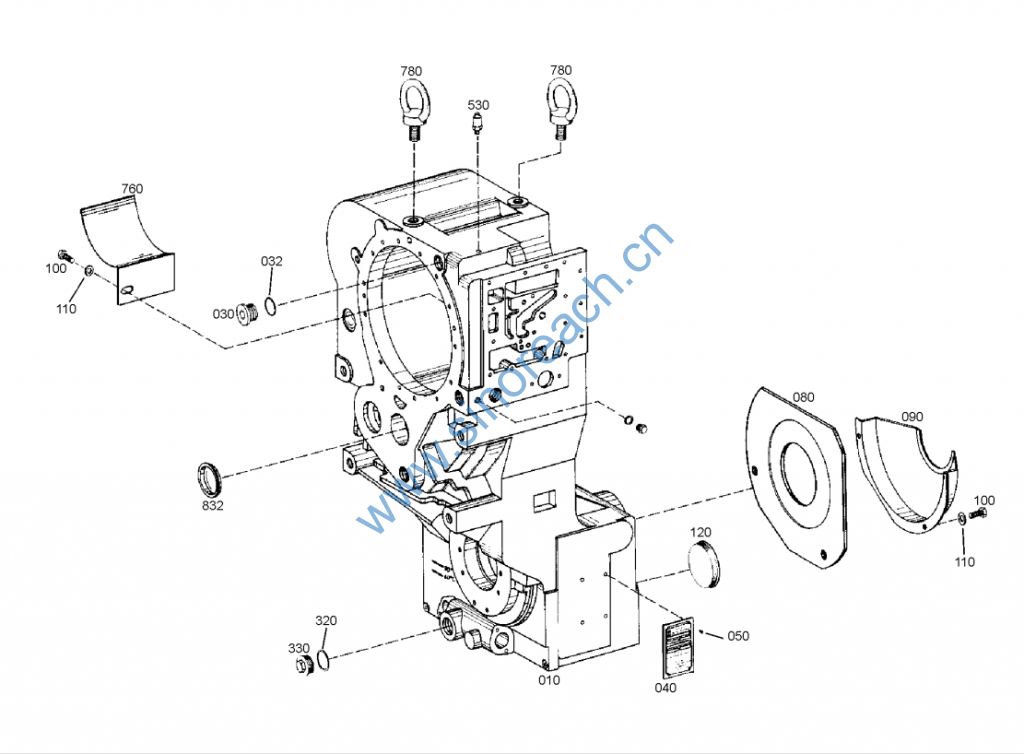

4WG-200 Transmission 4644 101 249 00 GEARBOX HOUSING 4644 101 249

010 4644 301 402 1 GEARBOX HOUSING ENTSPR.LIUGONG FERTIGUN G P
030 0636 302 027 H 1 SCREW PLUG M30X1,5 DIN 908 ST 0,090 P
032 0634 303 283 1 O-RING K00189/06 27 X 2,5 ZFN 744 NBR -70-10 0,001 P
040 0899 317 344 1 TYPE PLATE AL-MG-LEG WW.AL99.5 F P
050 0631 311 009 H 4 GROOVED STUD 3 X 5 ISO 8746 ST 0,001 P
080 4644 301 298 H 1 COVER PLATE FU270 1,050 P
090 4644 301 192 H 1 COVER PLATE ST1203 FU270 ZFN410 0,420 P
100 0636 015 278 H 3 HEXAGON SCREW M 8 X 16 ISO 4017 8.8 0,010 P
110 0630 001 012 H 3 WASHER DIN 125 ALT 200HV 0,002 P
120 4466 351 081 2 SEALING CAP IN 4466 351 173 ST1203 F270 0,065 P
320 0634 306 525 1 O-RING 35 X 2 ZFN 744 NBR -70-10 0,001 P
330 0636 305 026 H 1 SCREW PLUG CM 38X1,5 DIN 7604 ST 0,115 P
530 0750 131 027 1 BREATHER 0,010 P
760 4644 301 279 1 SCREEN SHEET ST1203 F270 ZFN410 0,050 P
780 0636 804 003 2 LIFT.EYE BOLT M 20 DIN 580 ALTC15 A 0,411 P
832 4644 301 088 H 1 SEALING CAP IN 4642 301 105 BLECH-DC01- 0,090 P
