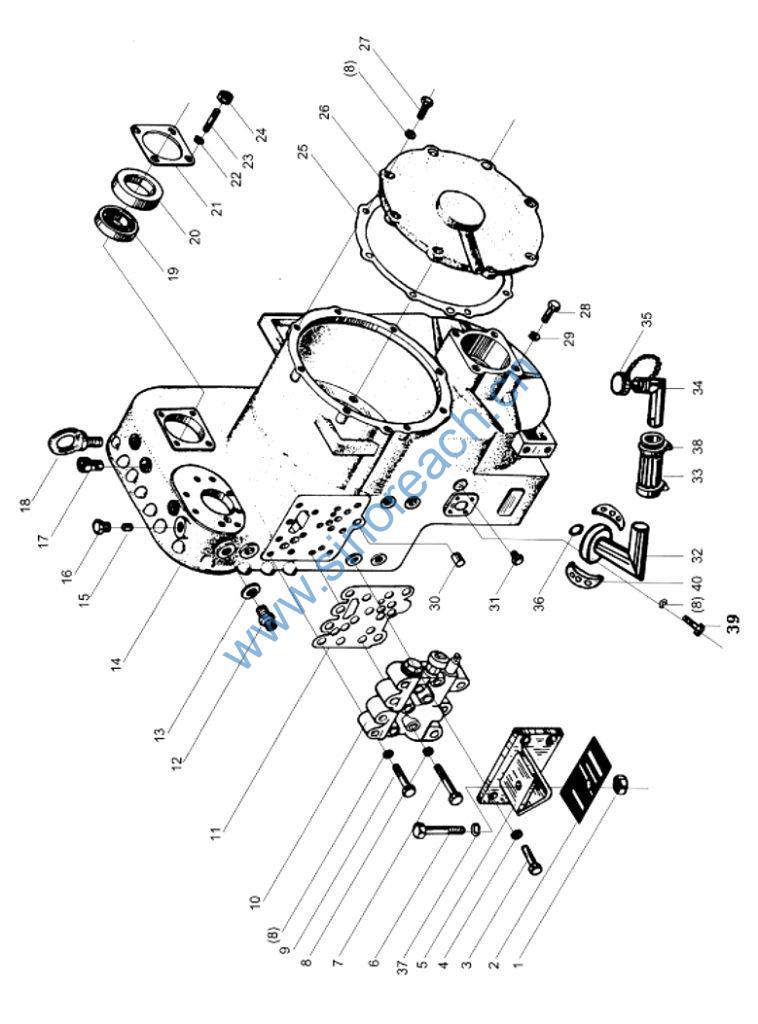

2BS315A Transmission Housing Fixing

1 805200058 螺母M20 Nut GB6172-86
2 250200227 胶垫 Rubber Pad
3 805002871 螺栓M18X40 Bolt GB5782-86
4 805300039 垫圈18 Lock Washer GB93-87
5 250200226 连接座 Bracket
6 805000605 螺栓M20X150 Bo1t GB5782-86
7 805000076 螺栓M10X70 Bolt GB5782-86
8 805300014 挚圈10 Lock Washer GB93-87
9 801902677 螺栓M10X55 Bolt GB21-76
10 250200147 变速操纵阀  Transmission Control Valve Assy
11 250200292 密封垫 Seal Gasket
12 250200678 接头 Joint
13 805300055 密封圈30    Washer JB982-77
14 272200153 箱体 Transmission Housing
15 250200357 圆柱塞 Taper Plug
16 250200540 螺塞Z3／4” Plug
17 250200334 透气管 Breather Tube
18 805100447 吊环螺钉M20 Eye Screw GB825-88
19 800511443 轴承6211 Ball Bearing GB／T276-94
20 272200152 轴承套 Bearing Gasket
21 272200150 密封垫 Seal Gasket
22 805300018 垫圈12 lock Washer GB93-87
23 801902679 双头螺柱M12X36 Stud GB899-88
24 805200049 螺母M12  Nut GB6170-86
25 250200442 密封垫 Seal Gasket
26 250200441 端盖 End Cover
27 805000043 螺栓M10X30   Bolt GB5783-86
28 805000170 螺栓M14X40   Bolt GB5783-86
29 805300033 垫圈14 Lock Washer GB93-87
30 250200359 圆柱销 Pin
31 5004112 放水阀   Water Drain Valve
32 250200437 角接管 Elbow
33 250200482 胶管 Hose
34 250200639 角接管 Elbow Hose
35 250200114 加油盖 Filter Tube Cover GB1235-76
36 801100042 O形密封圈45X3.5 O-Ring
37 9317447 减震块 Block
38 5000518 喉箍51-70 C1amp GB21-76
39 805002174 螺栓M10X30 Bolt
40 250200198 压板    Pressure Plate
