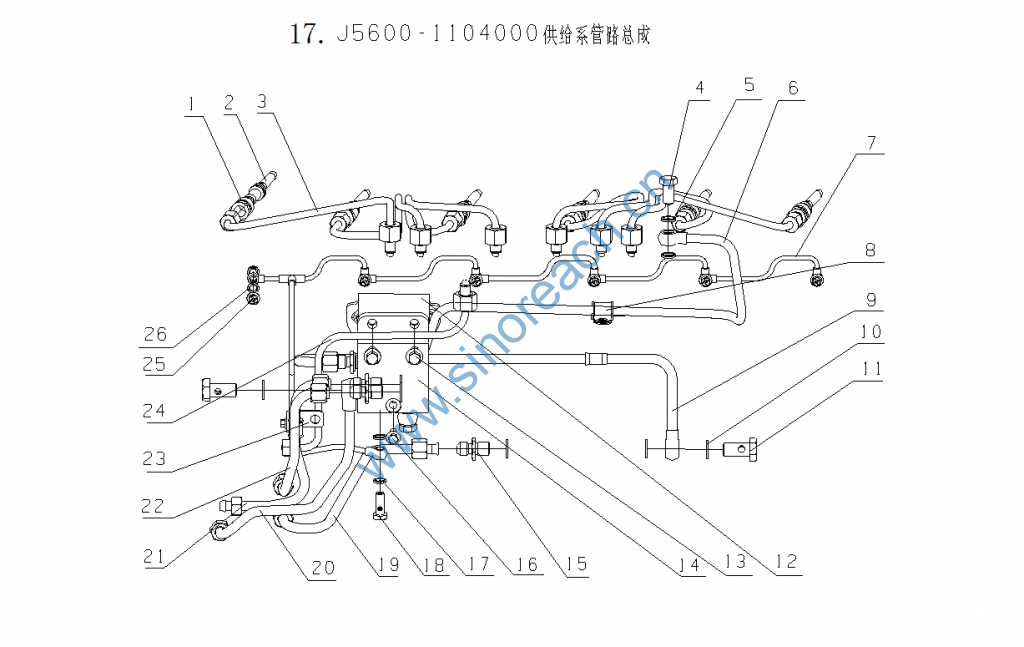

J5600-1104000 供给系管路总成 Fuel Supply Lines Assembly

序号 Item 图 号 Part No. 名 称 Name 数量 Qty. 备 注 Remark
1 L3000-1104131 连接管螺栓 Connecting pipe bolt 6
2 G2100-1104050A 高压连接管组件 High pressure connecting pipe assembly 6
3 J5600-1104100A 高压油管部件 High pressure pipe parts 1 易损件 EWP
4 Q/YC901-1C12125 铰接螺栓M12×1.25 Articulated bolt M12×1.25 2
5 Q/YC149-12 复合式密封垫圈12 Seal ring washer 12 4 易损件 EWP
6 J5600-1104C00BSF1 共轨管回油管部件 CR(Common rail) oil return pipe parts 1 易损件 EWP
7 J5600-1104200E 回油管部件 Oil return pipe parts 1 易损件 EWP
8 J5600-1104260 回油管管夹支架组件 Oil return pipe clamp bracket assembly 1
9 J5600-1104900B 进油管部件 Oil inlet pipe parts 1 易损件 EWP
10 Q/YC149-16 复合式密封垫圈16 Seal ring washer 16 8 易损件 EWP
11 Q/YC901-1C1615 铰接螺栓M16×1.5 Hinged bolt M16×1.5 2
12 J5600-1104504B 燃油分配器支架 Fuel distributor bracket 1
13 Q1841025TF2 螺栓M10×25 Bolt M10×25 4
14 J5600-1104541A 燃油分配器 Fuel distributor 1
15 G5800-1104001 过渡接头 Transit joint 4
16 Q1840825TF2 螺栓M8×25 Bolt M8×25 1
17 Q/YC149-10 复合式密封垫圈10 Seal washer 10 2 易损件 EWP
18 M3000-1002701A 过油螺栓 Bolt with oil hole 1
19 J5600-1104F00ASF1 ECU至输油泵油管部件 Pipe parts, ECU to fuel pump pipe 1
20 J5600-1104A00SF1 燃油分配器至喷油泵油管部件 Pipe parts, fuel distributor to injection pump 1 易损件 EWP
21 J5600-1104400BSF2 柴滤器至喷油泵油管部件 Pipe parts, fuel filter to injection pump 1 易损件 EWP
22 J5600-1104300BSF2 输油泵至柴滤器油管部件 Pipe parts, fuel pump to filter 1 易损件 EWP
23 J5600-1104C10 管夹支架组件 Pipe clamp bracket assembly 1
24 J5600-1104080ASF1 油泵至油轨油管部件 Pipe parts, oil pump to oil rail pipe 1 易损件 EWP
25 J5600-1104205 接头 Joint 6
26 Q/YC149-8 复合式密封垫圈8 Combined seal washer 8 12 易损件 EWP
