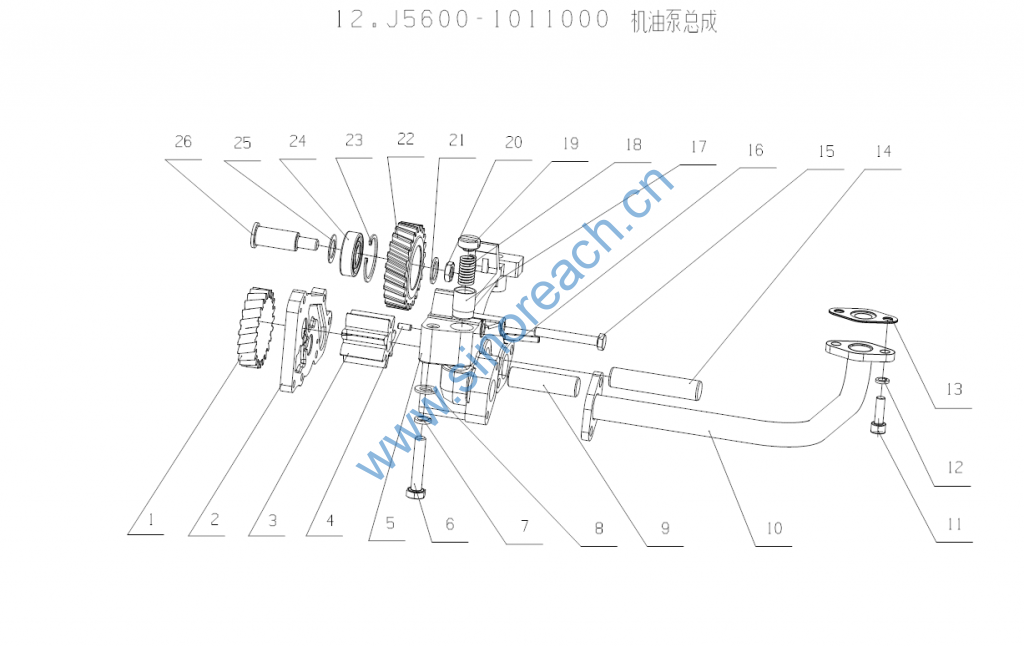

J5600-1011000 机油泵总成 Oil Pump Assembly

序号 Item 图 号 Part No. 名 称 Name 数量 Qty. 备 注 Remark
A30-1011020A 机油泵 Oil pump 1 包括1-9,14-19 Including item 1-9, 14-19
1 A30-1011023 机油泵齿轮 Oil pump gear 1
2 A30-1011024A 机油泵盖 Oil pump cover 1
3 A30-1011022 机油泵驱动齿轮 Oil pump driving gear 2
4 Q5210412 圆柱销4×12 Column pin 4×12 2
5 A30-1011021A 机油泵体 Oil pump body 1
6 Q150B1050TF2 螺栓M10×50 Bolt M10×50 2
7 Q40310 垫圈10 Washer 10 3
8 Q40110 垫圈10 Washer 10 3
9 A30-1011026 机油泵从动齿轮轴 Oil pump driven gear shaft 1
10 J5600-1011240A 出油管组件 Oil outlet pipe assembly 1
11 Q218B0825TF2 螺钉M8×25 Screw M8×25 4
12 Q40308 垫圈8 Washer 8 4
13 6105QA-1010110 垫片结合件 Assembled washer 2 易损件 EWP
14 A30-1011025 机油泵驱动齿轮轴 Oil pump drive gear shaft 1
15 Q150B0860 螺栓M8×60 Bolt M8×60 4
16 Q5280532 销5×32 Pin 5×32 1
17 A30-1011028 机油泵限压阀塞 Oil pump relief valve plug 1
18 A30-1011029 机油泵限压阀弹簧 Oil pump relief valve spring 1
19 A30-1011031 挡圈 Retainer 1
20 Q351B10 螺母M10×1 Nut M10×1 1
21 430-1011012 间隔垫 Spacer 1
22 430-1011011 机油泵中间驱动齿轮 Oil pump middle driving gear 1
23 Q43040 挡圈40 Retaining ring 40 1
