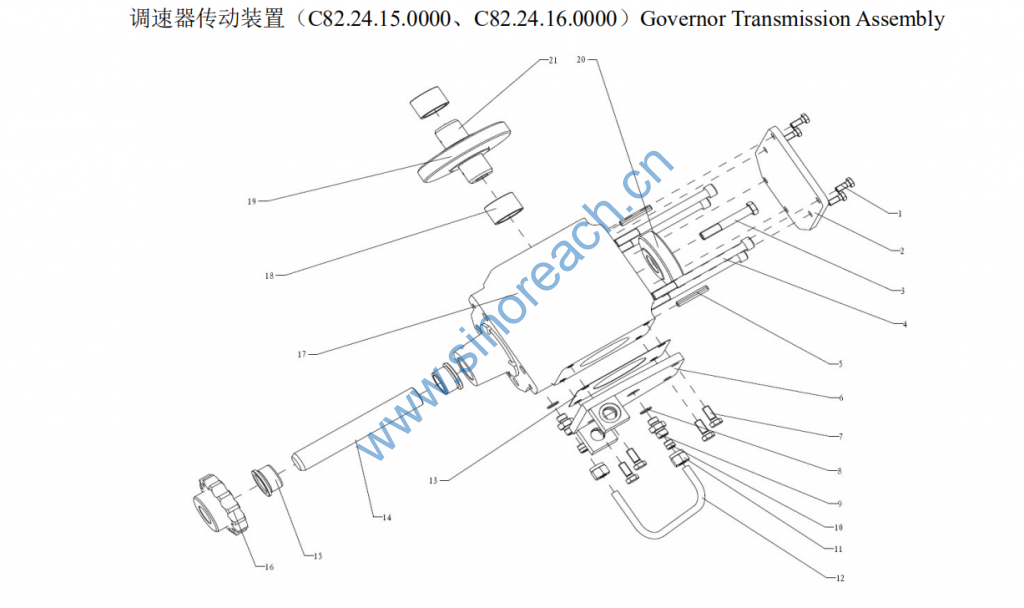

C82.24.15.0000、C82.24.16.0000）Governor Transmission Assembly

1 C82.24.06.1000 传动箱体结
合组 Transmission case ass. 1 1 1 1
2
C82.24.08.0001 斜齿轮 Bevel wheel 1 1 1 1 600～750r/min
C82.24.06.0001 斜齿轮 Bevel wheel 1 1 1 1 1000r/min
3 C82.24.15.0002 六角头螺栓 Hex. head bolt 1 1 1 1
4 C82.24.15.0001 轴 Shaft 1 1 1 1
5 C82.24.06.0003 齿轮 Gear 1 1 1 1
6 DIN7603-A14×18 密封垫圈 Sealing washer 2 2 2 2
7 DIN3901-L10M 端式接头体 End-type coupling
body
2 2 2 2
8 DIN3861-L10 卡套 Sleeve chuck 2 2 2 2
9 DIN3870-AL10 连接螺母 Connecting nut 2 2 2 2
10 90033040056 内六角头螺钉 Hex. socket cap
screw
4 4 4 4 GB/T70.1-M12×150
11 C82.24.06.0004 圆柱销 Cylindrical pin 2 2 2 2
12 90011270075 六角头螺栓 Hex. head bolt 6 6 6 6 GB/T5783-M8×20

13 C82.24.06.0005 盖板 Cover plate 1 1 1 1
14 C82.24.06.0006 管 Pipe 1 1 1 1
15 90003802523 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M10×25
16 C82.24.06.2000 支座 Support seat 1 1 1 1
17 C82.24.06.0007 垫片 Gasket 2 2 2 2
18 C82.24.08.0002 斜齿轮 Bevel wheel 1 1 1 1 600～750r/min
C82.24.06.0008 斜齿轮 Bevel wheel 1 1 1 1 1000r/min
19 C82.24.09.0001 内花键轴套 Female spline sleeve 1 1 1 1 24 齿
24-tooth
