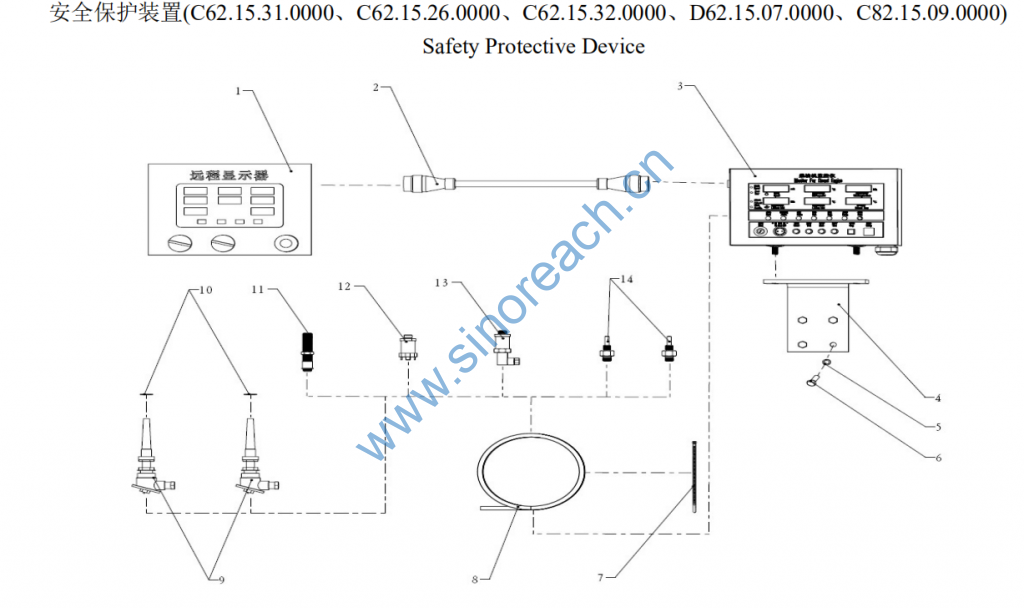

C62.15.31.0000、C62.15.26.0000、C62.15.32.0000、D62.15.07.0000、C82.15.09.0000 Safety Protective Device

1
620015010110 远程显示器 Long Range Display 1
620015010106 远程显示器 Long Range Display 1 1
620015010130 远程显示器 Long Range Display 1 1
C62.15.11.3010 远程显示器 Long Range Display 1 1
2 C62.15.11.3010 远程显示器
电缆
Cable Of Long Range
Display 1 1 1 1
3
620015010109 主机监控仪 Monitor Main Engine 1
620015010105 主机监控仪 Monitor Main Engine 1 1
620015010129 主机监控仪 Monitor Main Engine 1 1
820015010047 主机监控仪 Monitor Main Engine 1 1
4
C62.15.10.0001 支架 Blacket 1 1 1 1
C62.15.13.0001 支架 Blacket 1 1 1 1
C62.15.23.1000 支架 Blacket 1 1 1
5 90014010001 弹簧垫圈 Spring Washer 4 4 4 4 GB/T93-10
6 90011350026 六角头螺栓 Hex. bolt 4 4 4 4 GB/T5783-M10×20

7 90003171697 卡箍带 Clamp strip 5 5 5 5
8
620015010111 传感器线束 Wire 1
620015010107 传感器线束 Wire 1 1
620015010131 传感器线束 Wire 1 1
820015010049 传感器线束 Wire 1 1
9 D62.15.23.4000 排温热电偶 Exhaust sensor 2 2
10 DIN7603-A21×26 密封垫圈 Seal ring 2 2 2 2
11 C62.15.11.3005 转速传感器 Speed Sensor 1 1 1 1
12 825053010266 增压空气压
力变送器 Air Press. Transmitter 1 1 1 1
13 C62.15.11.3007 滑油压力变
送器 Oil Press. Transmitter 1 1 1 1
14 620015010063 温度传感器 Temp.Sensor 2 2 2 2
