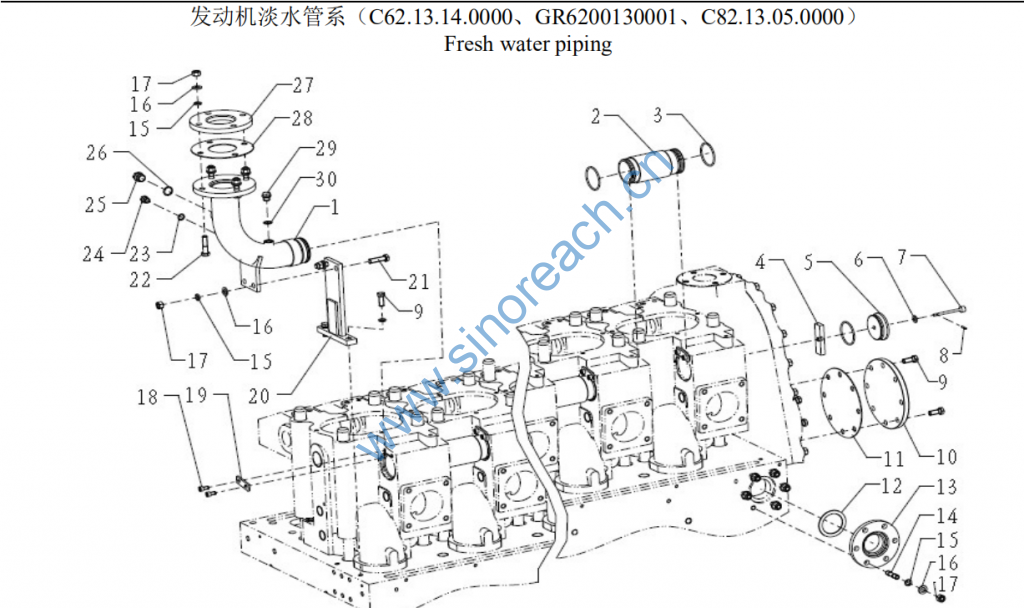

C62.13.14.0000、GR6200130001、C82.13.05.0000 Fresh water piping

1
C82.13.03.1000 淡水出水管 Fresh water
discharging pipe 1 1 1 1
620013010012 淡水出水管 Fresh water
discharging pipe 1 1
2
C62.13.03.0006 冷却水连接
管
Cooling water
coupling pipe 5 5 7 7 20-76×8-GB/T8162
620013010014 冷却水连接
管
Cooling water
coupling pipe 5 5 20-76×8-GB/T8162
1000526173 冷却水连接
管
Cooling water
coupling pipe 5 5 7 7 不锈钢 12Cr18Ni9
3 90037610018 O 型密封圈 O-ring 12 12 16 16
4 C62.13.03.0014 压板 Pressed plate 1 1 1 1
5
C62.13.03.0013 封板 Closing board 1 1
620013010003 封板 Closing board 1 1 1 1
6 620013030003 垫片 Gasket 1 1 1 1
7 620013030002 带肩螺钉 Shoulder screw
cap screw
1 1 1 1

8 90035010008 开口销 Split pin 1 1 1 1 GB/T91-3.5×25
9 90011270019 六角头螺栓 Hex. head bolt 10 10 10 10 GB/T5783-M12×30
10 C62.13.04.0001 扪盖 Blanking cover 1 1 1 1
11 C62.13.04.0002 垫片 Washer 1 1 1 1
12 C62.13.03.0002 垫片 Washer 1 1 1 1
13 C62.13.03.1002 法兰 Flange 1 1 1 1
14 90003813638 双头螺柱 Stud bolt 6 6 6 6 GB/T898-M12×35
15 90014010002 弹簧垫圈 Spring washer 14 14 16 16 GB/T93-12
16 90003930282 平垫圈 Flat Washer 12 12 16 16 GB/T97.1-12
17 90012210004 六角螺母 Hex. nut 12 12 16 16 GB/T6170-M12
18 90003862419 内六角头螺钉 Hex. socket
cap screw
12 12 16 16 GB/T70.1-M8×16
19 C62.13.03.0007 支架 Support 6 6 8 8
20 C62.13.03.3000 支架结合组 Bracket ass. 1 1 1 1
21 90031170050 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M12×45
22 90011270027 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5782-M12×50

23 DIN7603-A14×18 密封垫圈 Sealing washer 1 1 1 1
24 LS-AM14×1.5 六角螺塞 Hex. screw plug 1 1 1 1
25 LS-AM20×1.5 六角螺塞 Hex.screw plug 1 1 1 1
26 DIN7603-A21×26 密封垫圈 Sealing washer 1 1 1 1
27 C62.13.03.0001 垫片 Washer 1 1 1 1
28 C62.13.03.1001 法兰 Flange 1 1 1 1
29 LS-AM16×1.5 六角螺塞 Hex. screw plug 1 1 1 1
30 DIN7603-A17×21 密封垫圈 Sealing washer 1 1 1 1
