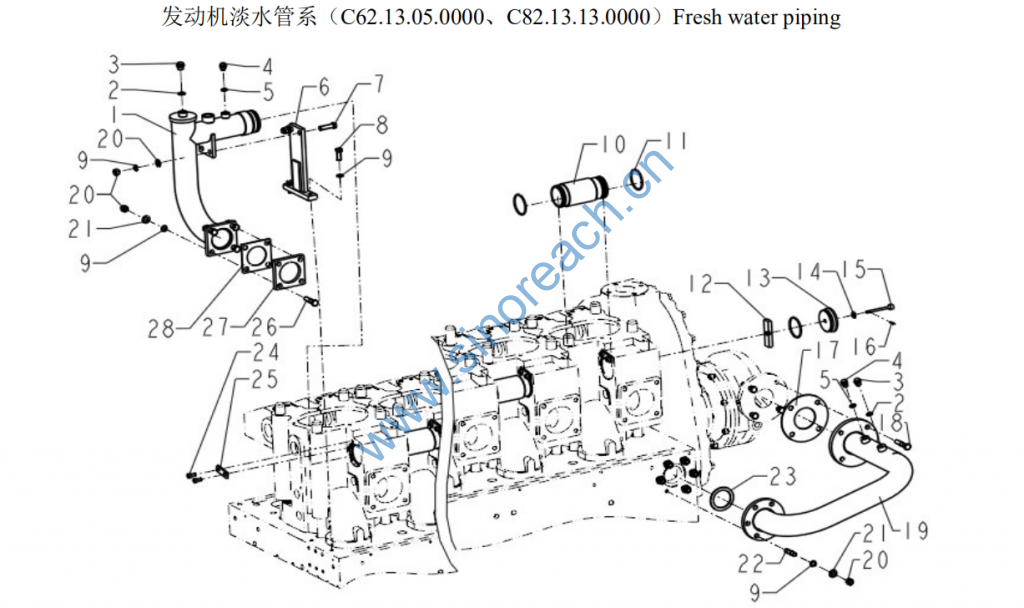

C62.13.05.0000、C82.13.13.0000 Fresh water piping

1
C62.13.03.2000 淡水出水管 Fresh water
discharging pipe
1 1
C82.13.13.1000 淡水出水管 Fresh water
discharging pipe 1 1
2 DIN7603-A17×21 密封垫圈 Sealing washer 2 2 2 2
3 LS-AM16×1.5 六角螺塞 Hex. screw plug 2 2 2 2
4 LS-AM14×1.5 六角螺塞 Hex. screw plug 2 2 2 2
5 DIN7603-A14×18 密封垫圈 Sealing washer 2 2 2 2
6 C62.13.03.3000 支架结合组 Bracket ass. 1 1 1 1
7 90011270023 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M12×40
8 90011270019 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M12×30
9 90014010002 弹簧垫圈 Spring washer 16 16 20 20 GB/T93-12
10
C62.13.03.0006 冷却水连接
管
Cooling water pipe 5 5 7 7 20-76×8-GB/T8162
1000526173 冷却水连接
管
Cooling water pipe 5 5 7 7 不锈钢 12Cr18Ni9

11 90037610018 O 型密封圈 O-ring 12 12 16 16
12 C62.13.03.0014 压板 Pressed plate 1 1 1 1
13 C62.13.03.0013 封板 Closing board 1 1 1 1
14 C62.13.03.0003 垫片 Gasket 1 1 1 1
15 620013030002 带肩螺钉 Shoulder screw 1 1 1 1
16 90035010008 开口销 Split pin 1 1 1 1 GB/T91-3.5×25
17 C62.13.03.0002 垫片 Washer 1 1 1 1
18
90031160038 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M12×60
90011270027 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M12×50
19 C62.13.03.1000 淡水进水管 Fresh water
charging pipe
1 1 1 1
20 90012210004 六角螺母 Hex. nut 16 16 20 20 GB/T6170-M12
21 90003930282 平垫圈 Flat washer 16 16 20 20 GB/T97.1-12
22 90003813638 双头螺柱 Stud bolt 6 6 6 6 GB/T898-M12×35
23 C62.13.03.0002 垫片 Washer 1 1 1 1

24 C62.13.03.0007 支架 Support 6 6 8 8
25 90003862419 内六角头螺
钉
Hex. socket cap
screw
12 12 16 16 GB/T70.1-M8×16
26 90011270027 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5782-M12×50
27 C62.13.03.2006 方法兰 Square flange 1 1 1 1
28 C62.13.03.0017 方垫片 Square washer 1 1 1 1
