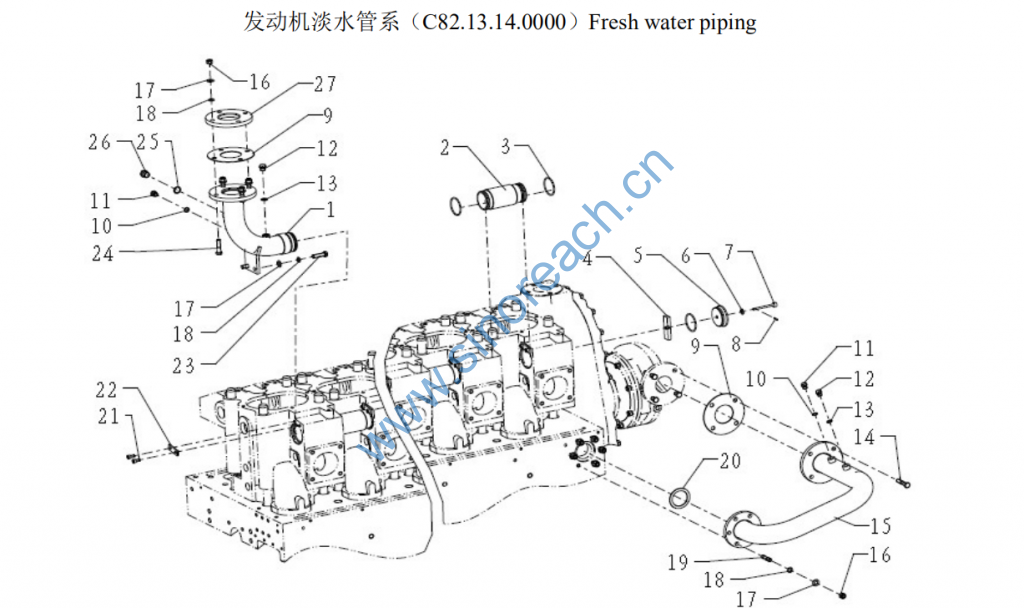

C82.13.14.0000 Fresh water piping

1 C82.13.03.1000 淡水出水管 Fresh water
discharging pipe 1 1
2
C62.13.03.0006 冷却水连接管 Cooling water
coupling pipe
7 7 20-76×8-GB/T8162
1000526173 冷却水连接管 Cooling water
pipe
7 7 不锈钢 12Cr18Ni9
3 90037610018 O 型密封圈 O-ring 16 16 GB/T3452.1-G-63.0×3.55
4 C62.13.03.0014 压板 Pressed plate 1 1
5 620013010003 封板 Closing board 1 1
6 620013030003 垫片 Gasket 1 1
7 620013030002 带肩螺钉 Shoulder screw 1 1
8 90035010008 开口销 Split pin 1 1 GB/T91-3.5×25
9 C62.13.03.0001 垫片 Washer 2 2
10 DIN7603-A14×18 密封垫圈 Sealing washer 2 2
11 LS-AM14×1.5 六角螺塞 Hex. screw plug 2 2
12 LS-AM16×1.5 六角螺塞 Hex. screw plug 2 2
13 DIN7603-A17×21 密封垫圈 Sealing washer 2 2
14 90031160038 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M12×60

15 C62.13.03.1000 淡水进水管 Fresh water pipe 1 1
16 90012210004 六角螺母 Hex. nut 14 14 GB/T6170-M12
17 90003930282 平垫圈 Flat washer 10 10 GB/T97.1-12
18 90014010002 弹簧垫圈 Spring washer 16 16 GB/T93-12
19 90003813638 双头螺柱 Stud bolt 6 6 GB/T898-M12×35
20 C62.13.03.0002 垫片 Washer 1 1
21 90003862419 内六角头螺钉 Hex. socket
cap screw
16 16 GB/T70.1-M8×16
22 C62.13.03.0007 支架 Support 8 8
23 90031170045 六角头螺栓 Hex. head bolt 2 2 GB/T5783-M12×35
24 90011270027 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M12×50
25 DIN7603-A21×26 密封垫圈 Sealing washer 1 1
26 LS-AM20×1.5 六角螺塞 Hex. screw plug 1 1
27 C62.13.03.1001 法兰 Flange 1 1
