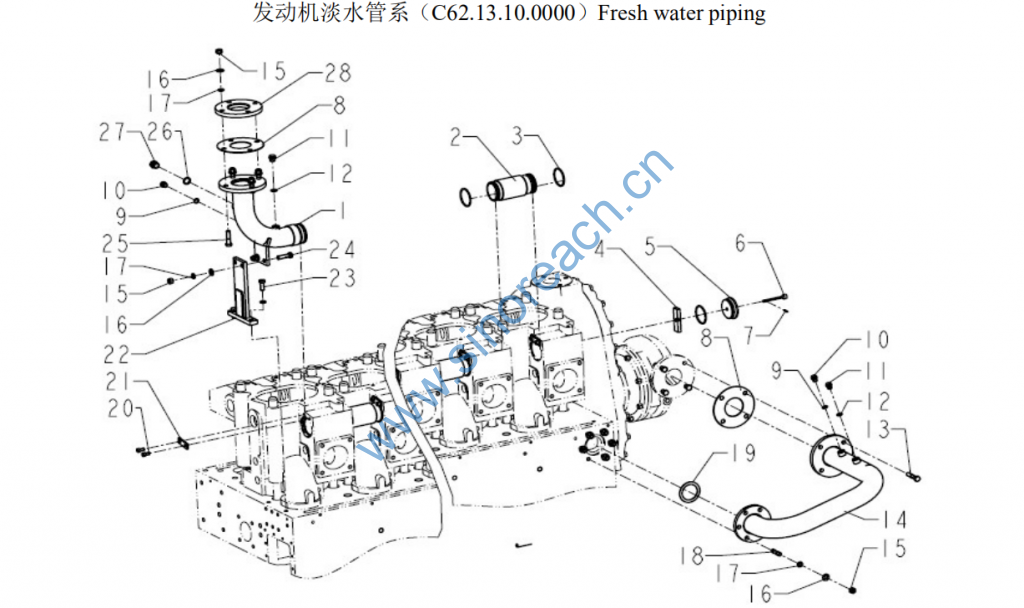

C62.13.10.0000 Fresh water piping

1 C82.13.03.1000 淡水出水管 Fresh water
discharging pipe 1 1
2
C62.13.03.0006 冷却水连接管 Cooling water pipe 5 5 20-76×8-GB/T8162
1000526173 冷却水连接管 Cooling water pipe 5 5 7 7 不锈钢 12Cr18Ni9
3 90037610018 O 型密封圈 O-ring 12 12
4 C62.13.03.0014 压板 Pressed plate 1 1
5 C62.13.03.0013 封板 Closing board 1 1
6 C62.13.03.0015 内六角头螺钉 Hex. socket
cap screw
1 1
7 90035100007 弹性圆柱销 Split pin 1 1 GB/T879-4×20
8 C62.13.03.0001 垫片 Washer 2 2
9 DIN7603-A14×18 密封垫圈 Sealing washer 2 2
10 LS-AM14×1.5 六角螺塞 Hex. screw plug 2 2
11 LS-AM16×1.5 六角螺塞 Hex. screw plug 2 2
12 DIN7603-A17×21 密封垫圈 Sealing washer 2 2
13 90031160038 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M12×60
14 C62.13.10.1000 淡水进水管 Fresh water pipe 1 1

15 90012210004 六角螺母 Hex. nut 16 16 GB/T6170-M12
16 90034020006 平垫圈 Flat washer 22 22 GB/T97.1-12
17 90014010002 弹簧垫圈 Spring washer 18 18 GB/T93-12
18 90003813638 双头螺柱 Stud bolt 6 6 GB/T898-M12×35
19 C62.13.03.0002 垫片 Washer 1 1
20 90003862419 内六角圆柱头
螺钉
Hex. socket
cap screw
12 12 GB/T70.1-M8×16
21 C62.13.03.0007 支架 Support 6 6
22 C62.13.03.3000 支架结合组 Bracket ass. 1 1
23 90011270019 六角头螺栓 Hex. head bolt 2 2 GB/T5783-M12×30
24 90011270023 六角头螺栓 Hex. head bolt 2 2 GB/T5783-M12×40
25 90011270027 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M12×50
26 DIN7603-A21×26 密封垫圈 Sealing washer 1 1
27 LS-AM20×1.5 六角螺塞 Hex. screw plug 1 1
28 C62.13.03.1001 法兰 Flange 1 1
