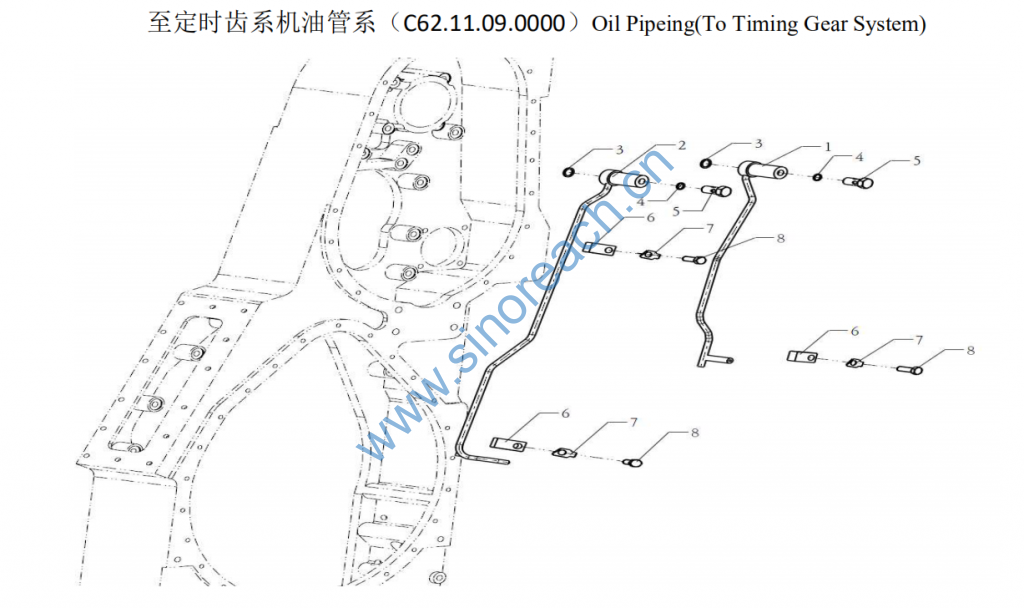

C62.11.09.0000 Oil Pipeing(To Timing Gear System)

1 C62.11.09.2000 管子结合组 Pipe ass. 1 1 1 1
2 C62.11.09.1000 管子结合组 Pipe ass. 1 1 1 1
3 DIN7603-A18×28 密封垫圈 Sealing washer 2 2 2 2
4 DIN7603-A14×18 密封垫圈 Sealing washer 2 2 2 2
5 C62.11.09.0001 空心螺钉 Hollow screw 2 2 2 2
6 C62.11.09.0003 管夹 Pipe clip 3 3 3 3
7 GB/T854-12 单耳止动垫圈 Single ear lock
washer 3 3 3 3
8 90011270019 六角头螺栓 Hex. head bolt 3 3 3 3 GB/T5783-M12×30
