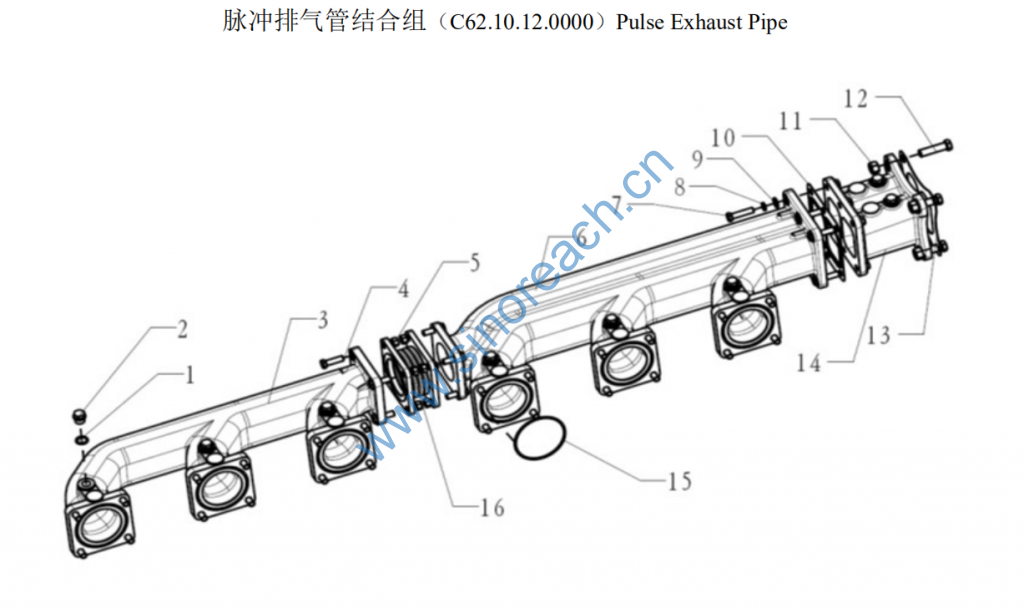

C62.10.12.0000 Pulse Exhaust Pipe

1 DIN7603-A21×26 垫圈 Gasket 6 6
2 LS-AM20×1.5 六角螺塞 Hex.plug 6 6
3 C62.10.12.0001 第 1,2,3 缸排气管 NO.1,2,3 blow-off pipe 1 1
4 620010010001 排气管螺栓 Exhaust Pipe Bolt 32 32
5 620010010007 六角螺母 Hex. nut 14 14
6 C62.10.12.0003 第 4,5,6 缸排气管 NO.4,5,6blow-off pipe 1 1
7 620010010002 排气管螺栓 Exhaust Pipe Bolt 6 6
8 90034010006 标准型弹簧垫圈 Spring Washer 30 30 GB/T93-12
9 90034050007 平垫圈 plain washer 30 30 GB/T97.1-12
10 C62.10.12.1000 钢垫 Steel Washer 1 1
11 620010010008 六角螺母 Hex. nut 4 4
12 620010010003 排气管螺栓 Exhaust Pipe Bolt 4 4
13 XC82.10.28.3000 增压器垫片 Supercharger gasket 1 1
14 C62.10.02.0007 联接管 Connecting pipe 1 1
15 C62.10.02.0008 O 型密封圈 O ring seal 6 6
16 C62.10.12.0002 排气波纹管 Exhaust pipe 1 1
