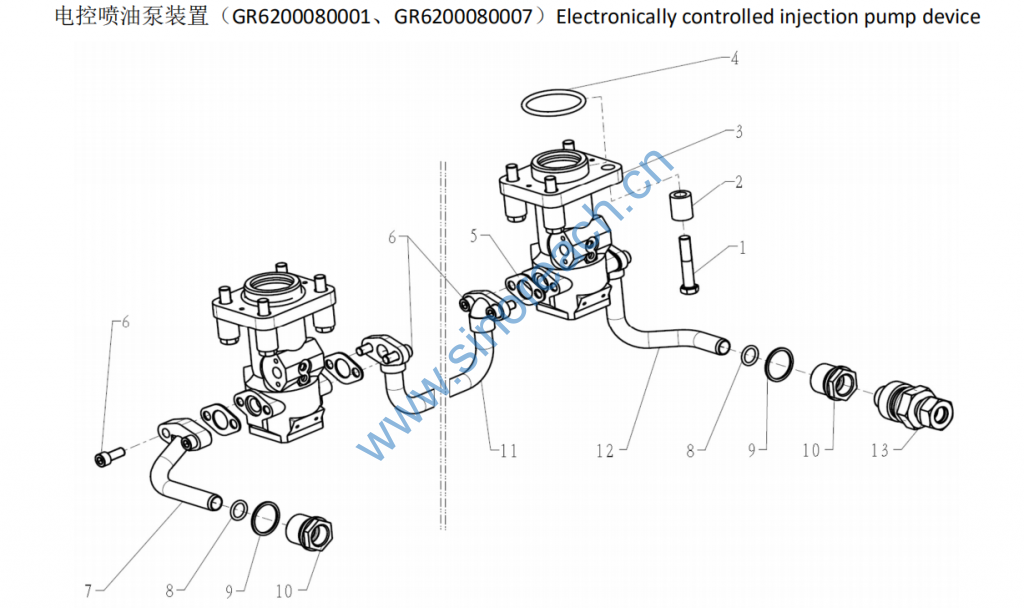

GR6200080001、GR6200080007 Electronically controlled injection pump device

1 90031160039 六角头螺栓 Hex.head bolt 24 24 32 32 GB/T5782-M12×65
2 620008010006 套筒 Sleeve 24 24 32 32
3
XC62.08.33.1000 喷油泵 Injection pump 6 6 8 8
620008010007 喷油泵 Injection pump 6 6 8 8 WP51C1142E2
4
C82.08.06.0002 O 型密封圈 O-ring 6 6 8 8
90037680012 O 型密封圈 O-ring 6 6 8 8 JB/T7757.2-63×5.30-S
5 C82.08.05.0001 垫片 Gasket 12 12 16 16
6 90033040018 内六角头螺钉 Socket head cap screw 24 24 32 32 GB/T70.1-M10×25
7 C82.08.05.1000 连接管结合组 Connecting pipe ass. 1 1 1 1
8
90037610004 O 型密封圈 O-ring 2 2 2 2 GB/T3452.1-18×3.55-
G 90037680011 O 型密封圈 O-ring 2 2 2 2 JB/T7757.2-18×3.55-V
9 DIN7603-A36×42 密封垫圈 Sealing washer 2 2 2 2
10 C82.08.05.0002 缩接 Shrunken connector 2 2 2 2
11 620008010001 连接管结合组 Connecting pipe ass. 5 5 7 7
12 620008010003 连接管结合组 Connecting pipe ass. 1 1 1 1
13 C82.08.05.5000 单向阀 One-way valve 1 1 1 1
