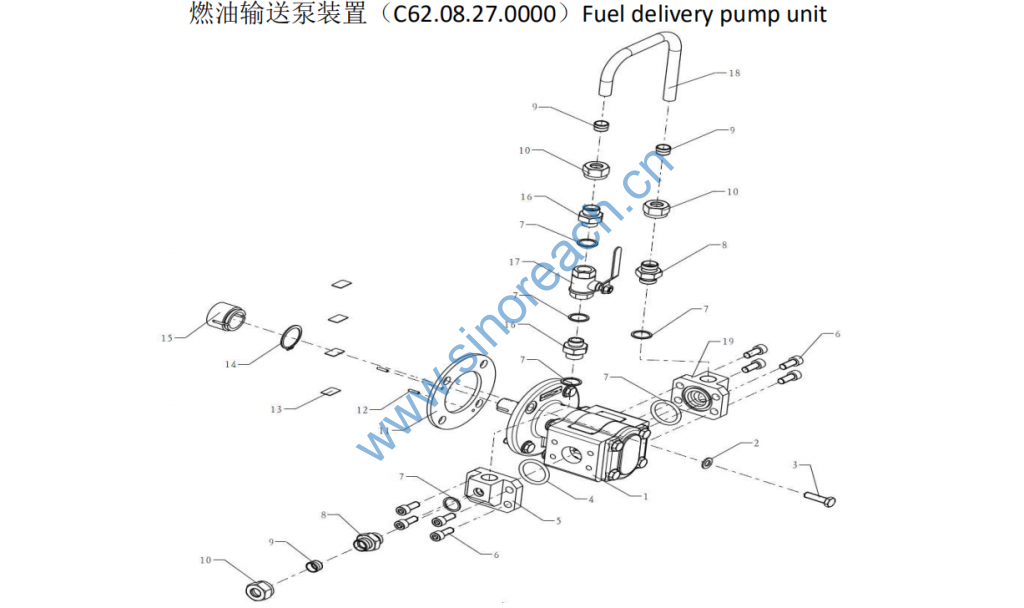

C62.08.27.0000 Fuel delivery pump unit

1 C62.08.22.1000 燃油输送泵 Fuel delivery
pump
1 1 1 1
2 90003930271 平垫圈 Flat washer 4 4 4 4 GB/T97.1-10
3 90003802532 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M10×35
4 90037610011 O 形密封圈 O-ring 2 2 2 2 GB/T3452.1-40×3.55
5 C62.08.22.0001 进油法兰 oil inlet flange 1 1 1 1
6 90033040018 内六角头螺钉 Hex. socket cap
screw
8 8 8 8 GB/T70.1-M10×25
7 DIN7603-A22×27 密封垫圈 Sealing washer 4 4 4 4
8 DIN3902-L16 直通接头体 Coupling body 2 2 2 2
9 DIN3861-L16 卡套 Sleeve chuck 2 2 2 2
10 DIN3870-AL16 连接螺母 Connecting nut 2 2 2 2
11 C62.08.25.0002 燃油泵垫片 Gasket body 1 1 1 1
12 90035040004 圆柱销 Cylindrical pin 2 2 2 2 GB/T119.1-6×16
13 C12.08.04.0002 弹簧片 Spring disc 4 4 4 4
14 90034590007 挡圈 Circlip 1 1 1 1 GB/T894.1-40

15 C62.08.25.0001 套筒 Sleeve 1 1 1 1
16 C62.08.27.0002 接头体 Coupling body 2 2 2 2
17 C62.09.68.1000 二片式球阀 ball valve 1 1 1 1
18 C62.08.27.0001 燃油旁通管 Fuel bypass 1 1 1 1
19 C62.08.22.0003 出油法兰 Oil outlet flange 1 1 1 1
