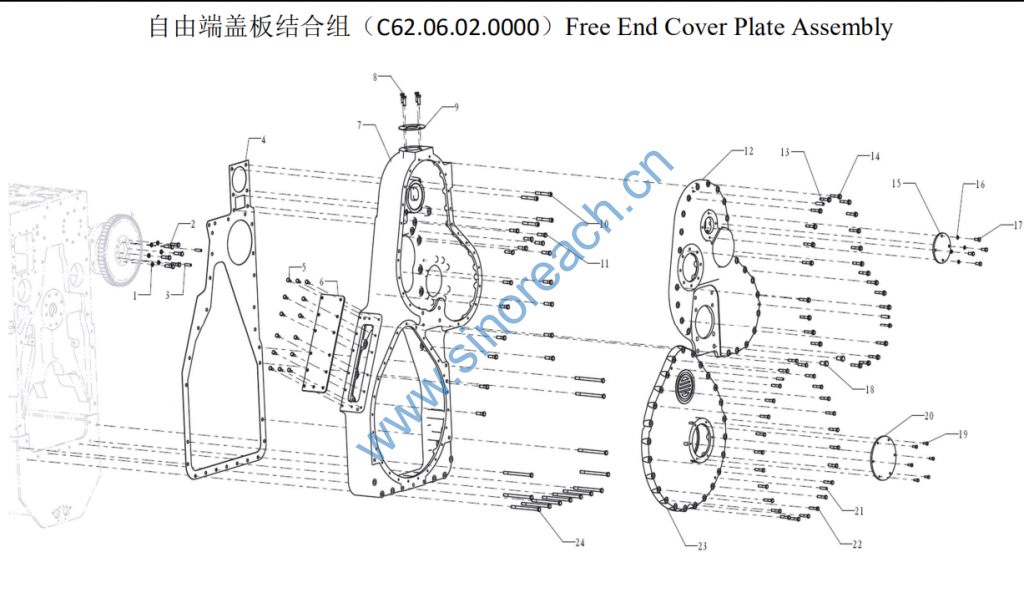

C62.06.02.0000 Free End Cover Plate Assembly

1 90014010002 弹簧垫圈 Spring washer 6 6 6 6 GB/T93-12
2 90031170050 螺栓 Bolt 6 6 6 6 GB/T5782-M12×45
3 90035070003 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-10×32
4 C62.06.02.0007 垫片 Gasket 1 1 1 1
5 90011350026 螺栓 Bolt 14 14 14 14 GB/T5783-M10×20
6 C62.06.02.0008 盖板 Plate 1 1 1 1
7 C62.06.02.0003 箱体 Casing 1 1 1 1 s
8 90031170045 螺栓 Bolt GB/T5783-M12×35
9 C62.06.02.0010 垫片 Gasket 1 1 1 1
10 90033040039 内六角头螺栓 Hex. socket cap
screw
4 4 4 4 GB/T70.1-M12×90
11 90031170050 螺栓 Bolt 16 16 16 16 GB/T5782-M12×45
12 C62.06.02.0005 盖 Cover 1 1 1 1
13 90035070008 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-12×50
14 90031210006 六角法兰面螺栓 Hex. head flange
bolt 24 24 24 24 GB/T5789-M10×55s

15 C62.06.02.0001 盖 Cover 1 1 1 1
16 90014010001 弹簧垫圈 Spring washer 4 4 4 4 GB/T93-10
17 90003802523 螺栓 Bolt 4 4 4 4 GB/T5783-M10×25
18 90031170061 螺栓 Bolt 2 2 2 2s GB/T5783-M16×30
19 90011270075 螺栓 Bolt 6 6 6 6 GB/T5783-M8×20
20 C62.06.02.0006 盖 Cover 1 1 1 1
21 90035070004 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-10×45
22 90003800543 螺栓 Bolt 25 25 25 25 GB/T5782-M10×50
23 C62.06.02.0002 自由端盖板 Free end cover plate 1 1 1 1
24 90031160049 螺栓 Bolt 12 12 12 12 GB/T5782-M12×180
