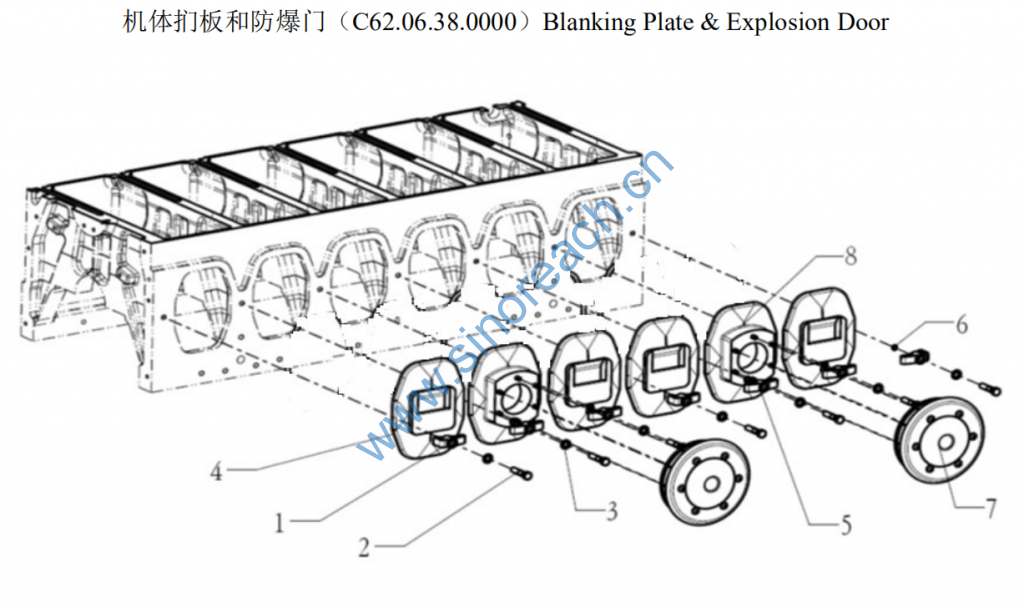

C62.06.38.0000 Blanking Plate & Explosion Door

1 C62.06.04.0001 压板 Side plate 2 2
2 90031160059 六角头螺栓 Hex. head bolt 7 7 GB/T5782-M16×70
3 90034050009 平垫圈 Plain washer 7 7 GB/T97.1-16
4 620006380022 机体扪板 Blank plate 4 4
5 C62.06.04.0002 中压板 Center plate 5 5
6 90034590003 轴用弹性挡圈 Circlip for shaft 7 7 GB/T894.1-16
7 C62.06.38.1000 阻燃式防爆阀 Crankcase safety valve
assy
2 2
8 620002380023 防爆阀安装板 Installation plate 2 2
