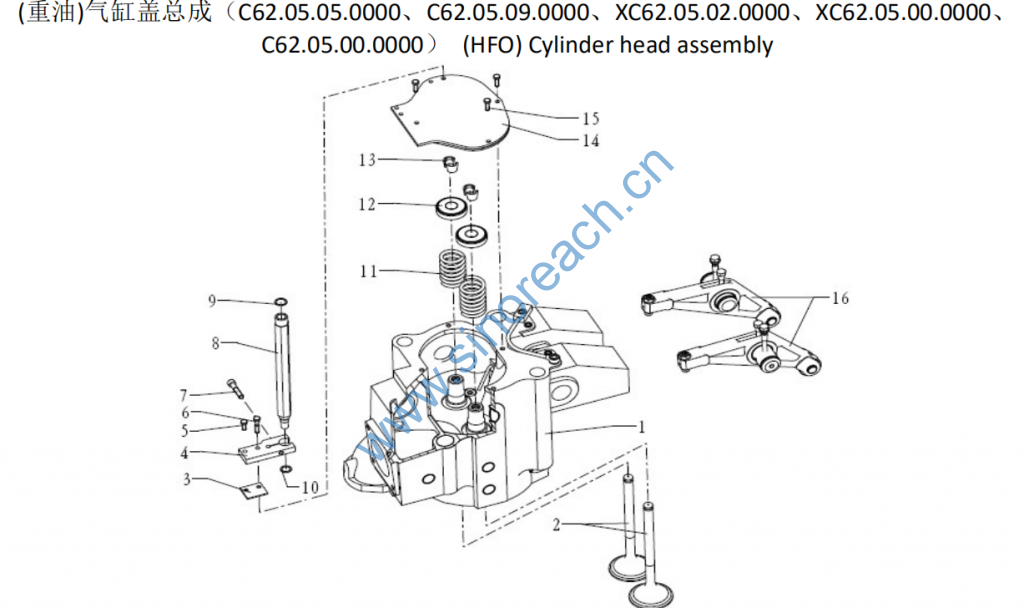

C62.05.05.0000、C62.05.09.0000、XC62.05.02.0000、XC62.05.00.0000 C62.05.00.0000 (HFO) Cylinder head assembly

1
C62.05.06.0000 重油气缸盖分总成 HFO cylinder head ass. 6 6 8 8
C62.05.10.0000 重油气缸盖分总成 HFO cylinder head ass. 6 6 8 8
XC62.05.03.0000 重油气缸盖分总成 HFO cylinder head ass. 6 6 8 8
XC62.05.01.0000 气缸盖分总成 Cylinder head ass.
subassembly
6 6 8 8
C62.05.01.0000 气缸盖分总成 Cylinder head ass.
subassembly
6 6 8 8
2 620005020059 进、排气阀 Inlet and exhaust valve 12 12 16 16
3 C62.05.00.0007 隔热垫片 Heat insulated washer 6 6 8 8
4 C62.05.00.0006 固定板 Fixed plate 6 6 8 8
5 90011270075 六角头螺栓 Hex. head bolt 6 6 8 8 GB/T5783- M8×20
6 90003802442 六角头螺栓 Hex. head bolt 6 6 8 8 GB/T5782- M8×40
7 90033040023 内六角圆柱头螺钉 Socket head cap screw 6 6 8 8 GB/T70.1- M10×50
8 C62.05.00.0005 接长六角梗 Extended stem 6 6 8 8
9 DIN7603-A21×26 密封垫圈 Sealing washer 6 6 8 8
10 DIN7603-A18×24 密封垫圈 Sealing washer 6 6 8 8
11 C62.05.00.0003 气门弹簧 Valve spring

12 C62.05.05.1000 转阀机构 Rotary valve mechanism 12 12 16 16
13 C62.05.00.0004 开口阀锥块 Open calve mechanism 12 12 16 16
14 C62.05.02.0000 气缸盖扪板结合组 Cylinderhead blanking plate
ass.
6 6 8 8
15 90003802424 六角头螺栓 Hex. head bolt 18 18 24 24 GB/T5783- M8×25
16 C62.05.04.0000 气门摇臂分总成 Rocker arm subass. 12 12 16 16
