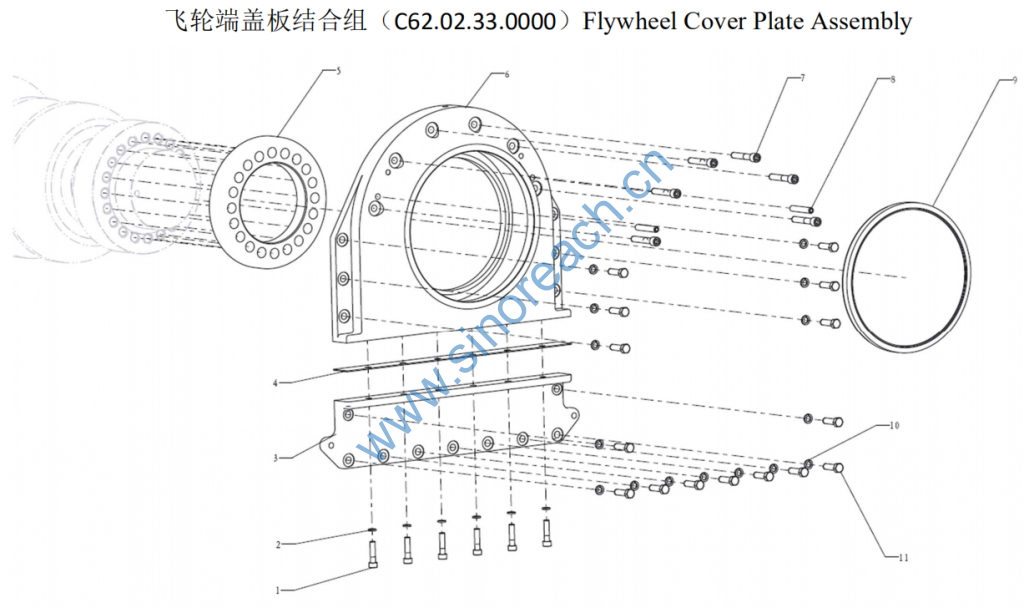

飞轮端盖板结合组 C62.02.33.0000 Flywheel Cover Plate Assembly

1 90033040022 内六角头螺钉 Hex. socket cap screw 6 6 6 6 GB/T70.1-M10×45
2 90014010001 弹簧垫圈 Spring washer 6 6 6 6 GB/T93-10
3 C62.02.33.0003 油底壳盖板 Oil sump plate 1 1 1 1
4 C62.02.33.0002 垫片 Gasket 1 1 1 1
5 C62.02.02.1000 圆盘结合组 Disc assembly 1 1 1 1
6 C62.02.33.0001 飞轮端盖板 Flywheel cover plate 1 1 1 1
7 90031160025 六角头螺栓 Hex. head bolt 6 6 6 6 GB/T5782-M10×60
8 90035070009 内螺纹圆柱销 Cylindrical pin 2 2 2 2 GB/T120.2-A-12×60
9 C62.02.02.2000 径向轴封结合组 Radial shaft seal ass. 1 1 1 1
10 90034180005 轻型弹簧垫圈 Light spring washer 15 15 15 15 GB/T859-12
11 90011270017 六角头螺栓 Hex. head bolt 15 15 15 15 GB/T5783-M12×25
