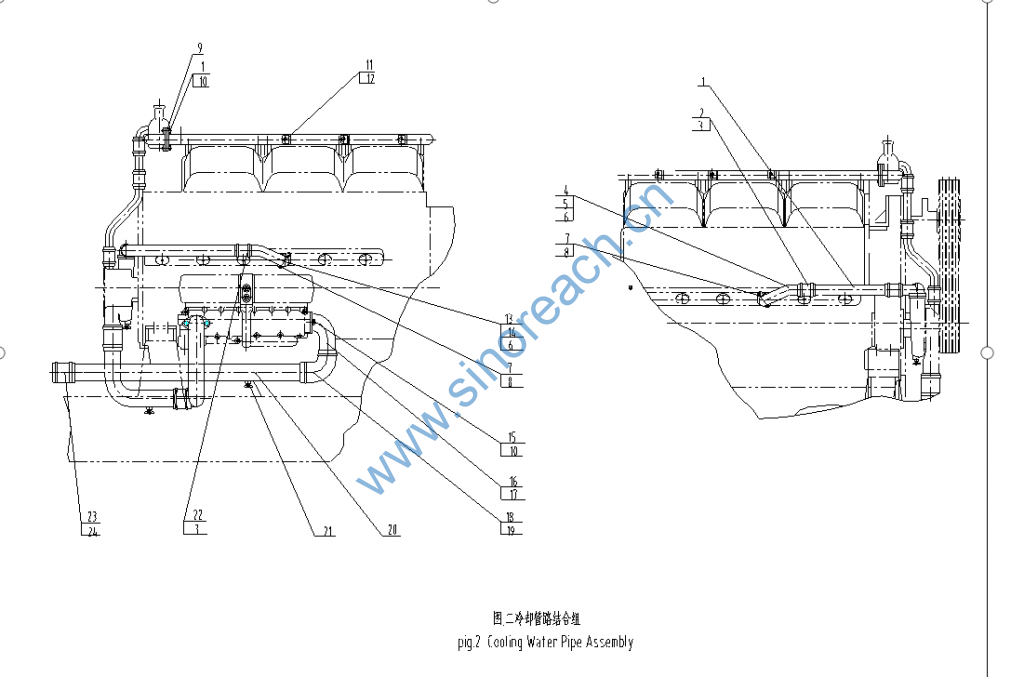

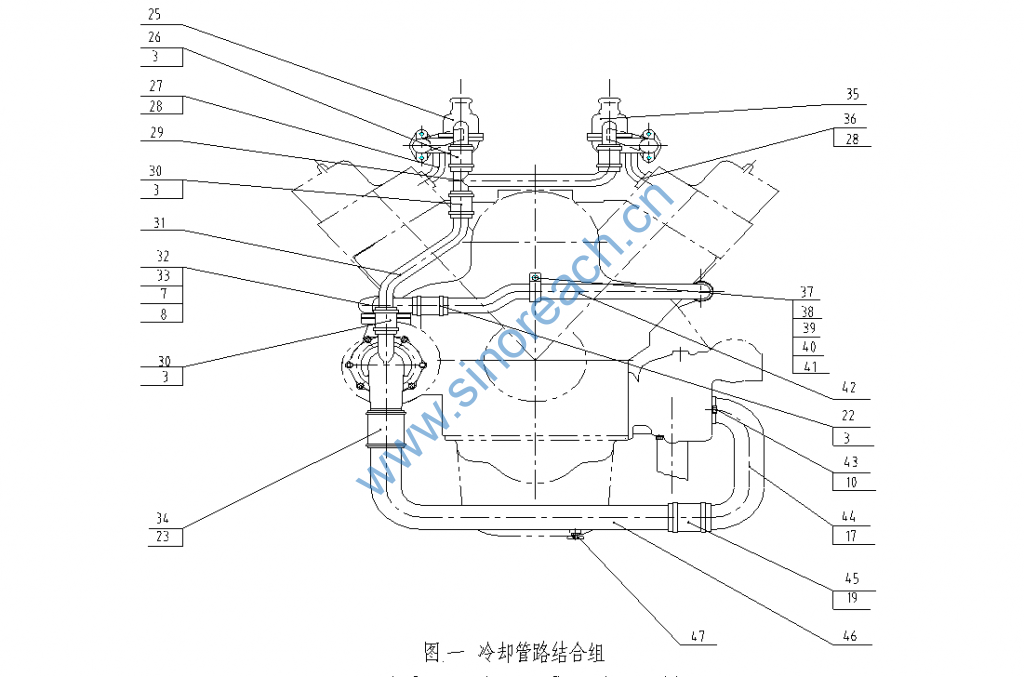

冷却管路结合组 COOLING WATER PIPE ASSEMBLY

1 右进水管 INLET PIPE (RIGHT), RADIATOR 771-24-019+A 1

2 Q/SC646-38*125：橡胶水管 WATER HOSE B00002367 2

3 Q/SC1302-27~51：喉箍 CLAMP B00001571 12

4 右进水弯管 771-24-012+A 1

5 右布水罩 771-24-013+A 1

6 垫片 PIN 761-24-025A+A 4

7 Q/SC611.1-M10*28：小六角头螺栓 HEXAGON HEAD BOLT B00001910 6

8 GB/T93-10：弹簧垫圈 SPRING WASHER B00001237 10

9 垫片 PIN 761-24-014A+A 2

10 GB/T93-12：弹簧垫圈 SPRING WASHER B00001239 4

11 防松螺母 NUT A771Z-07-012+A 6

12 Q/SC622-M10*25：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00001999 6

13 左进水弯管 WATER INLET PIPE ELBOW 771-24-011+A 1

14 布水罩 761-24-013A+A 1

15 GB/T70-M12*25：内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW B00000902 2

16 水管焊接部件 WATER OUTLET PIPE ASSY (WELDED), HEAT EXCHANGER B774ZL-24-010+A 1

17 垫片 PIN A772ZL-24-018+A 2

18 橡胶弯管  HOSE ELBOW D24A-309-01+A 1

19 Q/SC1302-52~76：喉箍 CLAMP B00001575 4

20 水箱出水管焊接部件 WATER OUTLET PIP ASSY B774ZLA-24-060+A 1

21 放水阀 WATER DRAIN VALVE 741G-02-004+A 2

22 Q/SC646-38*100：橡胶水管  HOSE ELBOW B00002365 2

23 Q/SC1302-60~83：喉箍 CLAMP B00001579 4

24 橡胶弯管  HOSE ELBOW 774-24-001A+A 1

25 右调温器装配部件 THERMOSTAT ASSY, RIGHT B774ZLA-24-080+B 1

26 软管 HOSE C84DL-2H0374+A 2

27 右出水管焊接部件 WATER OUTLET PIP ASSY (WELDED), RIGHT B774ZLA-24-090+C 1

28 垫片 PIN 761-24-042+A 12

29 调温器回水管 THERMOSTAT  TUBE 774Z-24-001+A 1

30 Q/SC646-32*100：橡胶水管  HOSE ELBOW B00002362 2

31 水泵回水管 WATER RETURN TUBE 774Z-24-002+A 1

32 分水管 WATER OUTLET PIPE 771-24-016+A 1

33 垫片 PIN 761-24-025A+A 2

34 Q/SC646-64*125：橡胶水管  HOSE ELBOW B00002441 1

35 左调温器装配部件 THERMOSTAT ASSY B774ZLA-24-070+B 1

36 左出水管焊接部件 B774ZLA-24-100+C 1

37 夹箍 CLAMP 771-24-021+B 1

38 Q/SC611.1-M8*35：小六角头螺栓 HEXAGON HEAD BOLT B00001969 1

39 垫铁 PIN 771-24-022+A 1

40 夹箍螺钉套管 CLAMP 771-24-023+B 1

41 衬垫 CUSHION 771-24-024+A 1

42 进水管 WATER INLET PIPE S00000383+02 1

43 Q/SC611.1-M12*25：小六角头螺栓 HEXAGON HEAD BOLT B00001930 2

44 出水管焊接部件 WATER OUTLET PIPE ASSY (WELDED), HEAT EXCHANGER B774ZL-24-020A+A 1

45 Q/SC646-60*100：橡胶水管  HOSE ELBOW B00002432 1
