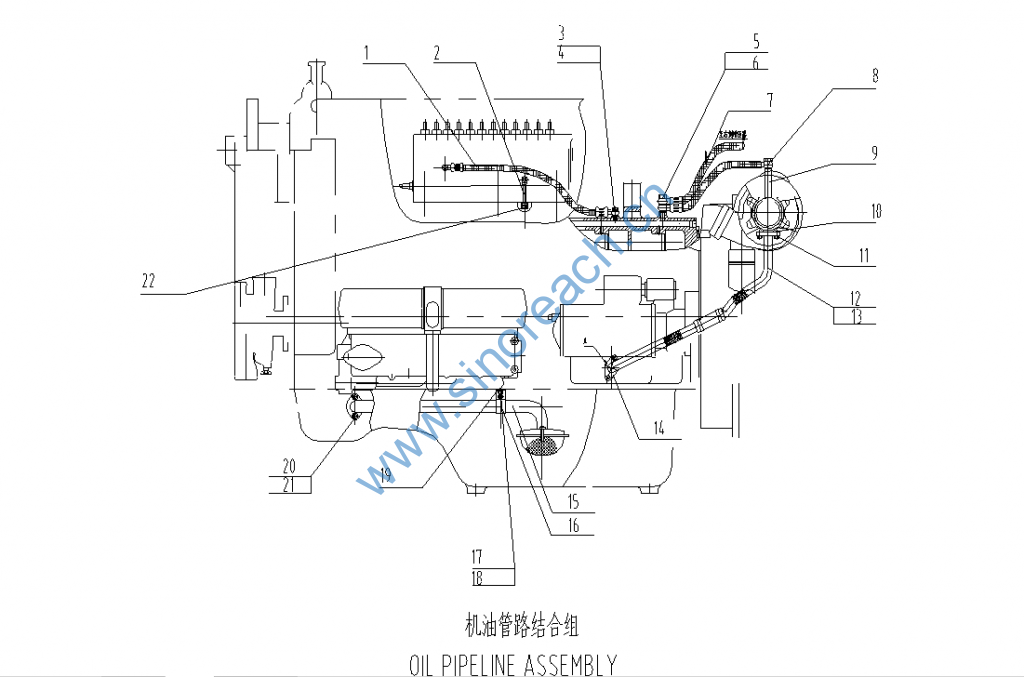

机油管路结合组 OIL PIPELINE ASSEMBLY B774ZL-19-000+E

1 油管 INLET TUBE B774ZL-19-002+A 1

2 回油管焊接部件 TURBOCHARGER OIL RETURN TUBE ASSY A771Z-19-010+B 1

2.1 回油管密封圈座 TURBOCHARGER OIL RETURN TUBE A771Z-19-001+A 1

2.2 回油管 INLET TUBE A771Z-19-002+A 1

2.3 管接头体 BANJO B00002188 1

3 Q/SC642.3-1-M10*1*25：铰接螺栓 BANJO BOLT B00002221 1

4 Q/SC598-10*16：铜垫圈 COPPER WASHER B00001814 2

5 接头螺钉 CONNECTOR SCREW 771Z-17-001A+A 1

6 Q/SC598-14*18：铜垫圈 COPPER WASHER B00001823 9

7 增压器进油管 B774ZL-19-004A+A 2

8 Q/SC642.3-1-M14*1.5*30：铰接螺栓 BANJO BOLT B00002224 2

9 加长接头 CONNECTOR A774ZL-19-001+A 2

10 回油管垫片 WASHER A762ZA-19-003+B 2

11 Q/SC622-M8X16：六角法兰面螺栓 HEXAGON NUT (TYPE 1) B00002132 10

12 增压器回油管部件（左） OIL RETURN PIPE ASSY (LEFT), TURBOCHARGER B774ZL-19-010+C 1

13 增压器回油管部件（右） OIL RETURN PIPE ASSY  TURBOCHARGER B774ZL-19-020+C 1

14 垫片 WASHER 771Z-19-009+B 2

15 吸油管焊接部件 OIL PUMP SUCTION TUBE ASSY A771Z-19-020A+A 1

15.1 吸油管 OIL PUMP A771Z-19-007+A 1

15.2 法兰  FLANGE A771Z-19-008+A 1

15.3 网盖  STRAINER COVER C19AL-19AL004+A 1

15.4 滤网 PRE-STRAINER C19AL-19AL005+A 1

16 挂架 BRACE A771Z-19-006 1

17 Q/SC622-M6*16：六角法兰面螺栓 HEXAGON NUT (TYPE 1) B00002114 1

18 GB/T6177-M6-Y：六角法兰面螺母 HEXAGON NUT (TYPE 1) B00000843 1

19 垫片 WASHER 761-19-006B 2

20 GB/T 5783-M8*20：六角头螺栓 HEXAGON HEAD BOLT B00000631 2

21 GB/T 93-8：弹簧垫圈 SPRING WASHER B00001253 2

22 Q/SC648-13.8*2.4：O型橡胶密封圈 O-RING B00002471 2
