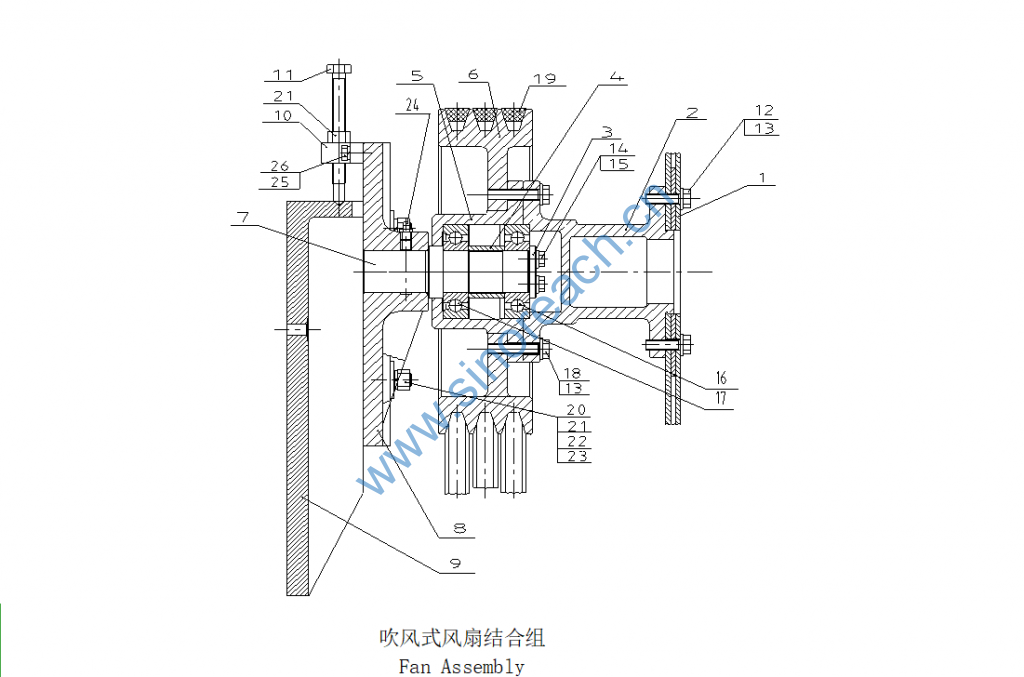

吹风式风扇结合组 FAN ASSEMBLY B774ZLA-16B-000+B

1 风扇铆接部件 FAN RIVET CONNECTION COMPONENT B774ZLA-16B-010+A 1

2 后轴套 REAR SHAFT SLEEVE B774ZLA-16B-007+A 1

3 压板 PRESSURE PLATE B774ZLA-16B-011+A 1

4 皮带盘 SPACER RING B774ZLA-16B-009+A 1

5 前轴套 FRONT SHAFT SLEEVE B774ZLA-16B-006+A 1

6 皮带盘 FAN BELT PULLEY B774ZLA-16B-008+A 1

7 风扇轴 FAN SHAFT B774ZLA-16B-005+A 1

8 调节支架 REGULATING BRACKET B774ZLA-16B-002+A 1

9 座架 SEAT FRAME B774ZLA-16B-001+A 1

10 支座 SUPPORT 774Z-16B-009+A 1

11 调节螺栓 ADJUSTING BOLT 774Z-16B-011+A 1

12 Q/SC622-M10*35：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00002004 6

14 Q/SC622-M8*20：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00002134 2

16 GB/T276-6308：滚动轴承 TAPER ROLLER BEARING B00000244 1

17 GB/T276-6308-Z：滚动轴承 TAPER ROLLER BEARING B00000245 1

18 Q/SC622-M10*50：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00002013 6

19 三角皮带 AUTOMOTIVE BELT B774ZLA-16B-020+A 1

20 GB/T899-GM12-M12*45-8.8-Y：双头螺柱 STUD B00001126 4

21 GB/T6177-M12-Y：六角法兰面螺母 HEXAGON NUT (TYPE 1) B00000836 5

22 GB/T93-12：弹簧垫圈 STANDARD SPRING WASHER B00001239 4

23 Q/SC597-12*35：加大毛垫圈 ENLARGED ROUGH WASHER B00001800 4

24 GB/T1152-M10*1：直通式压注油杯 GREASE FILLING JET B00001479 1

25 GB/T93-8：弹簧垫圈 STANDARD SPRING WASHER B00001253 2

26 GB/T5783-M8*25：六角头螺栓 HEXAGON HEAD BOLT B00000634 2
