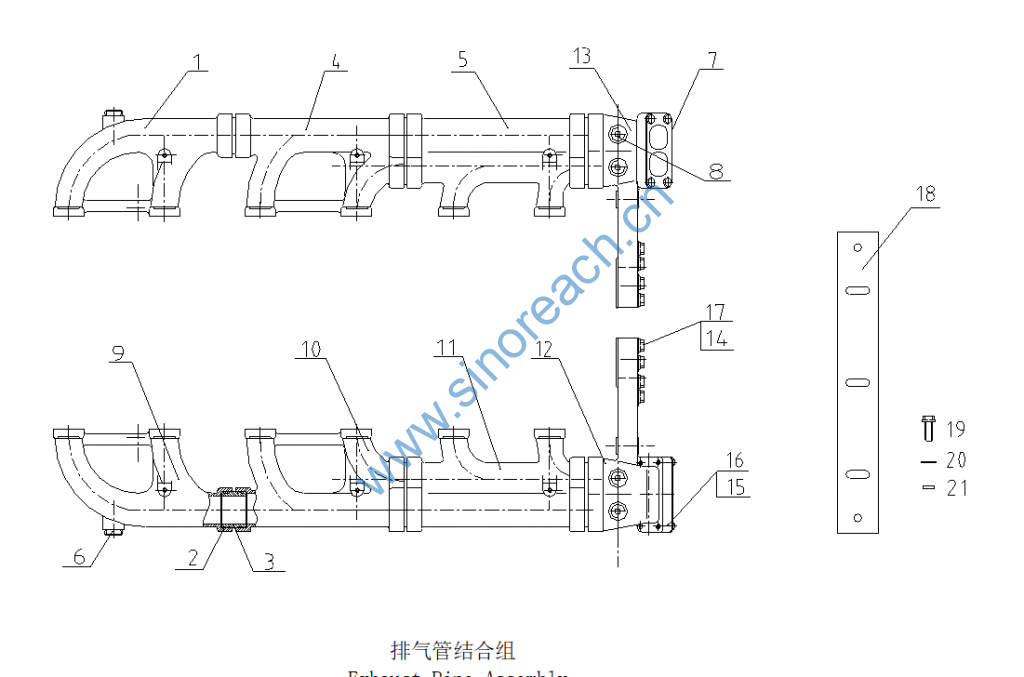

排气管结合组 EXHAUST PIPE ASSEMBLY B774ZL-13-000+B

1 右前排气管 FRONT RIGHT EXHAUST PIPE 771Z-13-005A+A 1

2 密封圈 SEALING RING 761Z-13-008+A 40

3 密封环套 SEALING RING SLEEVE 761Z-13-005A+A 10

4 右中排气管 CENTER RIGHT EXHAUST PIPE 771Z-13-006A+A 1

5 右后排气管 REAR RIGHT EXHAUST PIPE 771Z-13-007A+A 1

6 Q/SC584.1-R3/4：内六角锥形螺塞 SOCKET HEXAGON TAPERED SCREW PLUG B00001699 2

7 垫片 GASKET 761Z-13-007A+B 2

8 Q/SC585-R1/2：方头锥形螺塞 SQUARE HEAD TAPERED SCREW PLUG B00001716 4

9 左前排气管 FRONT LEFT EXHAUST PIPE 771Z-13-001B+A 1

10 左中排气管 CENTER LEFT EXHAUST PIPE 771Z-13-002B+A 1

11 左后排气管 REAR LEFT EXHAUST PIPE 771Z-13-003B+A 1

12 增压器左支架 LEFT BRACKET FOR SUPERCHARGER B774ZL-13-001+A 1

13 增压器右支架 RIGHT BRACKET FOR SUPERCHARGER B774ZL-13-002+A 1

14 GB/T97.2-12-200HV-Y：平垫圈 PLAIN WASHER B00001278 8

15 GB/T93-10：弹簧垫圈 STANDARD SPRING WASHER B00002066 8

16 GB/T5783-M10*35：小六角头螺栓 HEXAGON HEAD BOLT B00002004 8

17 GB/T5782-M12*55：六角头螺栓 HEXAGON HEAD BOLT B00000434 8

18 波形膨胀节 EXPANSION CONNECTOR A771Z-13-001+A 2
