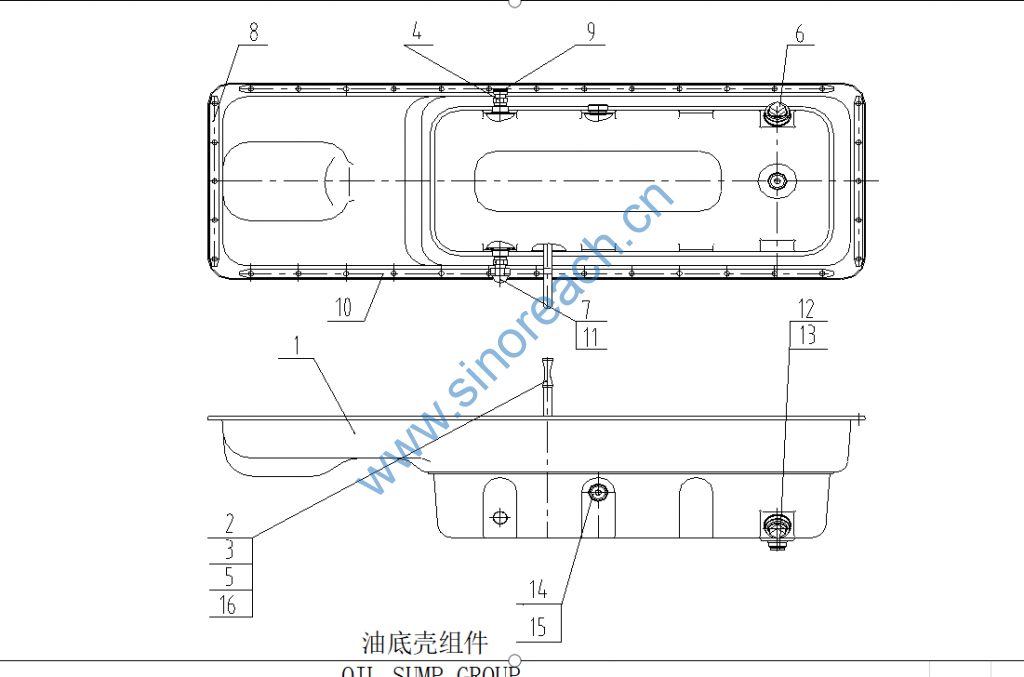

油底壳组件 OIL SUMP GROUP S00006624+01

1 油底壳焊接部件 OIL SUMP ASSY A774Z-03-010+A 1
2 油尺装配部件 OIL DIPSTICK ASSY (ASSEMBLED) 771-03-040+A 1
4 油温表接头 OIL THERMOMETER CONNECTOR 772-03-004+A 2
6 Q/SC585-R1/A1：方头锥形螺塞 SQUARE HEAD CONE PIPE PLUG B00001721 1
7 堵油螺塞 PIPE PLUG 771-03-007+A 1
8 垫铁 OIL SUMP SPACER 771-03-003+A 2
10 垫铁 OIL SUMP SPACER 771-03-002+A 2
11 Q/SC598-1826：铜垫圈 COPPER WASHER B00001832 1 12 Q/SC584.2-M201.5：内六角螺塞 PIPE PLUG (HEXAGON COUNTERSUNK) B00001706 1
13 Q/SC598-2026：铜垫圈 COPPER WASHER B00001835 1 14 Q/SC584.2-M221.5：内六角螺塞 PIPE PLUG (HEXAGON COUNTERSUNK) B00001707 1
15 Q/SC598-22*28：铜垫圈 COPPER WASHER B00001839 1
16 封油圈 STEM SEAL 761-03-005+A 1
