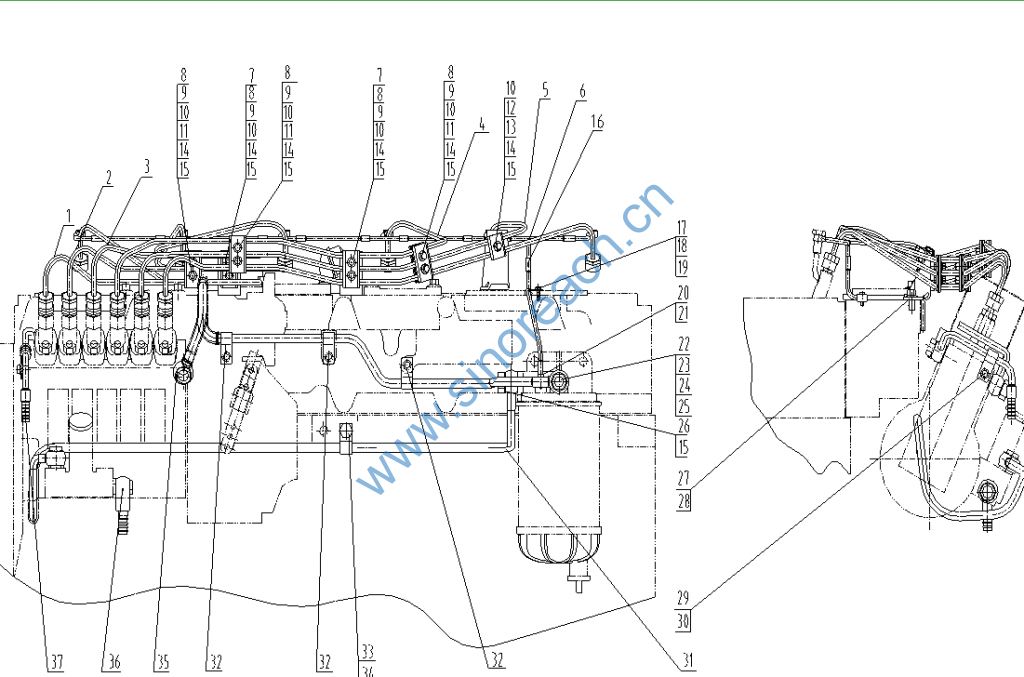

S00016137 燃油管路组件 FUEL LINES GROUP

1 D26-001-35 高压油管部件(一) HIGH PRESSURE FUEL PIPE ASSY, NO.1 CYLINDER 1

2 D26-002-35 高压油管部件(二) HIGH PRESSURE FUEL PIPE ASSY, NO.2 CYLINDER 1

3 D26-003-35 高压油管部件(三) HIGH PRESSURE FUEL PIPE ASSY, NO.3 CYLINDER 1

4 D26-004-35 高压油管部件(四) HIGH PRESSURE FUEL PIPE ASSY, NO.4 CYLINDER 1

5 D26-005-35 高压油管部件(五) HIGH PRESSURE FUEL PIPE ASSY, NO.5 CYLINDER 1

6 D26-006-35 高压油管部件(六) HIGH PRESSURE FUEL PIPE ASSY, NO.6 CYLINDER 1

7 D26-035-01 油管固定支架焊接部件 BRACKET, LOW PRESSURE FUEL PIPE 2

8 D26-104-01 夹片衬垫 CUSHION, CLAMP-LOW PESSURE FUEL PIPE 10

9 D26-105-01 上夹片 BRACE,FUEL TUBE 5

10 B00002108 六角法兰面螺栓 HEX HEAD BOLT 11 Q/SC622-M5*25

11 D26-034-01 上夹片焊接部件 BRACE WELDING, FUEL TUBE 3

12 D26-104-02 夹片衬垫 CUSHION, CLAMP-LOW PESSURE FUEL PIPE 2

13 D26-105-02 上夹片 BRACE,FUEL TUBE 1

14 B00001296 平垫圈 PLAIN WASHER 11 GB/T97.1-5-200HV-Y

15 B00001251 弹簧垫圈 SPRING WASHER 11 GB/T93-5

16 D26-008-34A 回油管部件 OIL RETURN PIPE 1

17 D26-117-01 夹箍 CLAMP 2

18 B00000582 六角头螺栓 HEXAGON HEAD BOLT 2 GB/T5783-M4*12

19 B00001293 平垫圈 PLAIN WASHER 2 GB/T97.1-4-200HV-Y

20 B00002185 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M8*1

21 S00004430 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2

22 B00001724 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M10*1

23 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-10

24 D26-121-31 铰接螺栓 BANJO BOLT 1

25 S00004432 复合式密封硬垫圈 RUBBER COATED HARD WASHER 4

26 B00002179 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M14*1.5

27 B00002145 六角法兰面螺栓 HEX HEAD BOLT 1 Q/SC622-M8*40

28 B00000846 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M8-Y

29 B00002130 六角法兰面螺栓 HEX HEAD BOLT 1 Q/SC622-M8*12

30 D26-117-31 夹箍 CLAMP 1

31 D26-115-41 输油泵出油管 FUEL SUPPLY PUMP OUTLET TUBE 1

32 D26-117-34 夹箍 CLAMP 3

33 D26-117-39 夹箍 CLAMP 1

34 B00002045 六角法兰面螺栓 HEX HEAD BOLT 1 Q/SC622-M12*20

35 D26-114-31A 喷油泵进油管 FUEL INJECTION PUMP FUEL INLET TUBE 1

36 D26-007-03 管接头焊接部件 JOINT ASSY (WELDED) 1

37 D26-008-08 喷油泵回油管焊接部件 FUEL INJECTION PUMP FUEL RETURN TUBE ASSY (WELDED) 1
