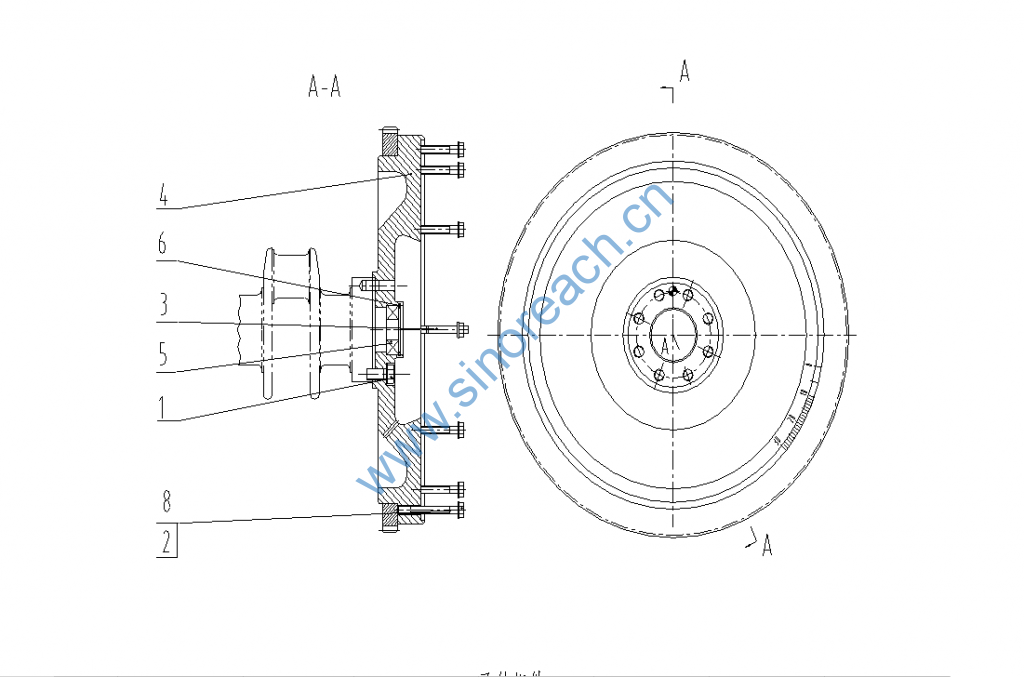

D06B-000-58 飞轮组件 FLYWHEEL GROUP

1 B00001116 双头螺栓 STUD 2 GB/T899-GM10-M10*70-8.8-Y

2 D06B-001-31 飞轮与启动齿圈装配部件 FLYWHEEL AND RING GEAR ASSY 1

3 D06B-108-30 飞轮螺栓 FLYWHEEL BOLT 8

4 B00001237 标准型弹簧垫圈 SPRING WASHER 12 GB/T93-10

5 B00000234 滚动轴承 BUSHING 1 GB/T276-6305-2RS

6 B00002024 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 10 Q/SC622-M10*70

7 B00000833 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M10-Y

8 B00001045 孔用弹性挡圈-A型 RING RETAINER FOR HOLE (TYPE A) 1 GB/T893.1-62
