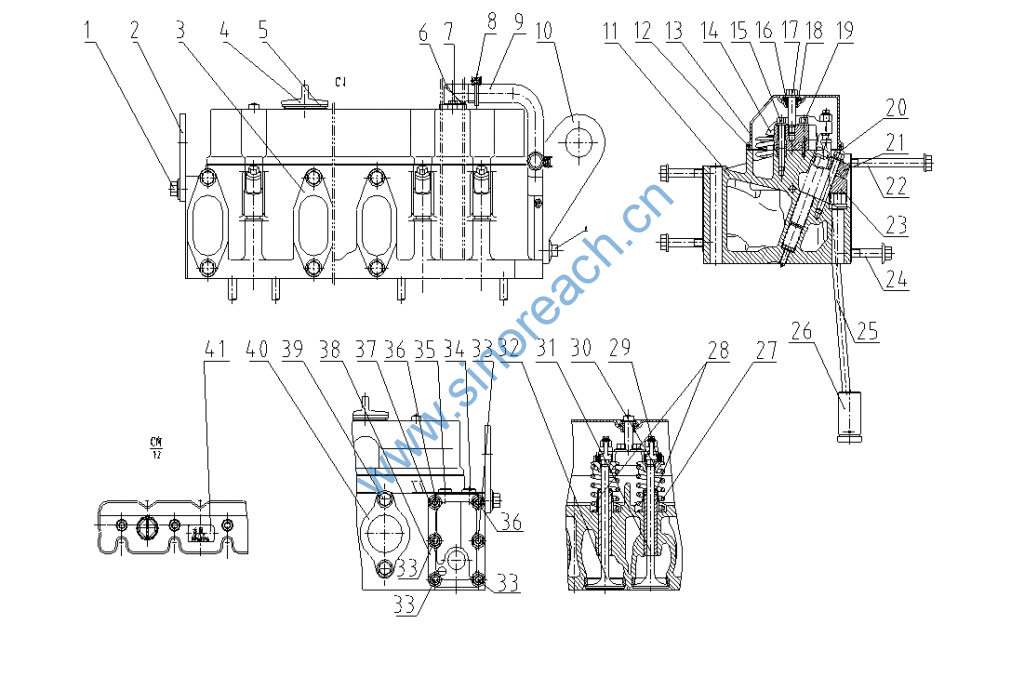

D04-000-38 气缸盖组件 CYLINDER HEAD GROUP

1 B00002047 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M12*25

2 D04-142-30C 前吊环 FRONT LIFTING EYE 1

3 D04-131-30 进气管垫片 GASKET, AIR INTAKE PIPE 6

4 D04-138-01A 加油盖 OIL FILLER COVER 1

5 D04-139-02 加油盖密封垫片 OIL FILLER COVER GASKET 1

6 D04-017-50 通气管接头部件 JOINT ASSY, FUMES DISPOSAL 1

7 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M6*12

8 B00001565 Q/SC1302-18~32: 喉箍 CLAMP 2

9 S00011811 油气分离器进气橡胶管 HOSE TO CRANKCASE VENTILATION FILTER 1

10 D04-143-30C 后吊环 REARLIFTING EYE 1

11 D04-001-38 气缸盖部件 CYLINDER HEAD ASSY 1

12 D04-135-30A 气缸盖罩密封带 VALVE COVER SEAL (RECTANGULAR) 1

13 D04-134-32 气缸盖罩壳 VALVE COVER 1

14 D04-007-32 摇臂总成 ROCKER ARM ASSY 6

15 D04-120-30 遥臂轴紧固螺栓 BOLT 6

16 D04-300-01A 罩壳螺栓密封圈 O-RING 6

17 D04-136-30B 缸盖罩壳螺栓 VALVE COVER BOLT 6

18 D04-301-01 罩壳螺栓密封圈垫圈 GASKET 6

19 B00002148 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 12 Q/SC622-M8*45-10.9

20 D04-148-30 喷油器紧固螺栓 INJECTOR BOLT 6

21 D04-147-32 喷油器压板 INJECTOR CLAMP 6

22 D04-307-01A 进气管螺栓 BOLT, AIR INTAKE PIPE 6

23 D04-302-02 喷油器压板垫块 INJECTOR CLAMP SPACER 6

24 B00002016 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 6 Q/SC622-M10*55

25 D04-128-30A 推杆 PUSH ROD 12

26 D04-127-30C 挺柱 TAPPET 12

27 D04-113-30A 气门弹簧 VALVE SPRING 12

28 D04-107-30 排气门杆油封 VALVE STEM SEAL, EXHAUST 12

29 D04-114-30B 气门弹簧上座 VALVE SPRING RETAINER 12

30 D04-115-30A 气门锁夹 VALVE COLLET (HALF) 24

31 D04-111-31B 排气门 EXHAUST VALVE 6

32 D04-110-34 进气门 INTAKE VALVE 6

33 D04-306-01 调温器双头螺栓 THERMOSTAT STUD 4

34 D04-151-30 放气接头 JOINT 1

35 D04-309-01 内六角螺塞(Z3/8) PLUG 1

36 D04-305-01 调温器双头螺栓 THERMOSTAT STUD 2

37 B00000846 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 6 GB/T6177-M8-Y

38 D04-304-01 调温器垫片 THERMOSTAT GASKET 1

39 D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 12

40 D04-144-30 排气管垫片 GASKET, EXHAUST MANIFOLD 6

41 D04-164-01 商标 TRADEMARK 1
