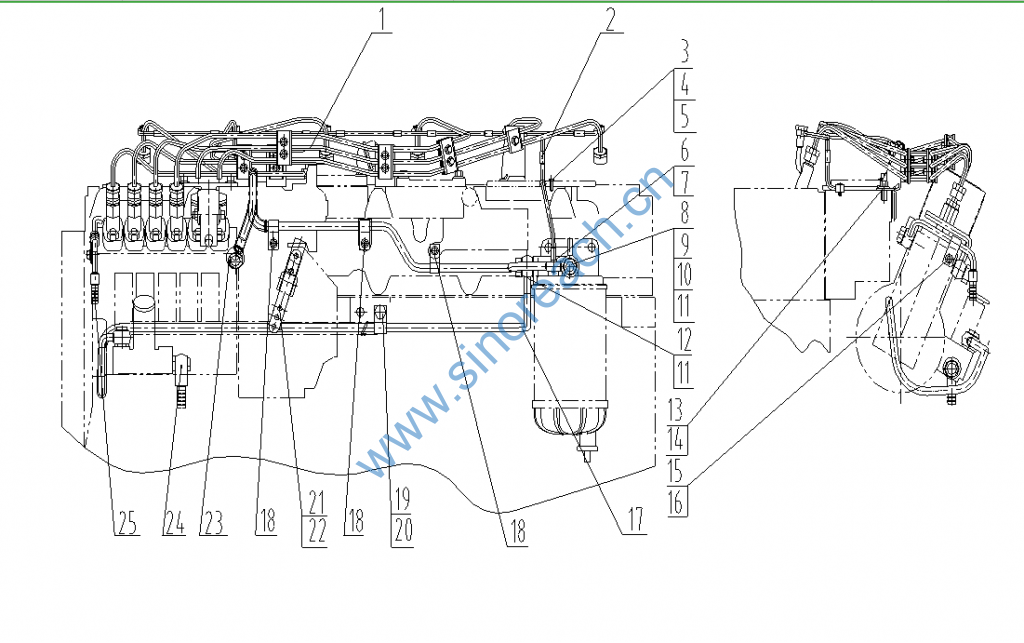

D26-000-128 燃油管路组件 FUEL LINES GROUP

1 D26-020-08 高压油管总成部件 HIGH PRESSURE FUEL PIPE ASSY 1

2 D26-008-34A 回油管部件 OIL RETURN PIPE 1

3 D26-117-01 夹箍 CLAMP 2

4 B00000582 六角头螺栓 HEXAGON HEAD BOLT 2 GB/T5783-M4*12

5 B00001293 平垫圈 PLAIN WASHER 2 GB/T97.1-4-200HV-Y

6 B00002185 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M8*1

7 B00001555 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-8

8 B00001724 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M10*1

9 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-10

10 D26-121-31 铰接螺栓 BANJO BOLT 1

11 B00001547 复合式密封硬垫圈 RUBBER COATED HARD WASHER 4 Q/SC1294-14

12 B00002179 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M14*1.5

13 B00002145 六角法兰面螺栓 HEX HEAD BOLT 1 Q/SC622-M8*40

14 B00000846 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M8-Y

15 B00002130 六角法兰面螺栓 HEX HEAD BOLT 1 Q/SC622-M8*12

16 D26-117-31 夹箍 CLAMP 1

17 D26-115-41 输油泵出油管 FUEL SUPPLY PUMP OUTLET TUBE 1

18 D26-117-34 夹箍 CLAMP 3

19 D26-117-39 夹箍 CLAMP 1

20 B00002134 六角法兰面螺栓 HEX HEAD BOLT 1 Q/SC622-M8*20

21 D26-128-03 操纵手柄 CONTROL LEVER 1

22 B00002143 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*35-10.9

23 D26-114-31A 喷油泵进油管 FUEL INJECTION PUMP FUEL INLET TUBE 1

24 D26-007-01 管接头焊接部件 JOINT ASSY (WELDED) 1

25 D26-030-03 喷油泵回油管焊接部件 FUEL INJECTION PUMP FUEL RETURN TUBE ASSY (WELDED) 1
